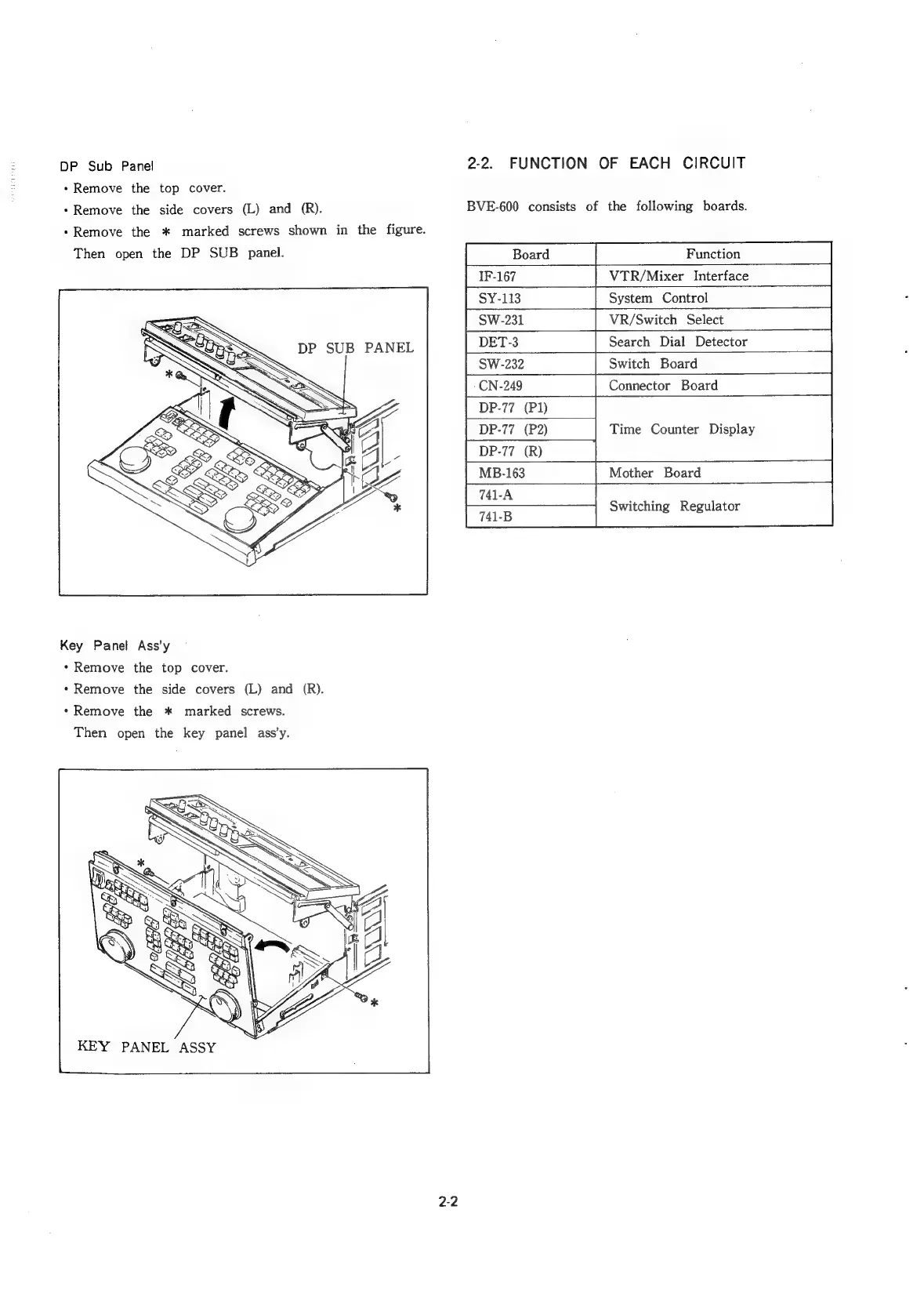

DP Sub Panel 2-2. FUNCTION OF EACH CIRCUIT
*» Remove the top cover.
*
Remove
the
side
covers
(L)
and
(R).
BVE-600
consists
of
the
following
boards.
*
Remove
the
*
marked
screws
shown
in
the
figure.
Then open the DP SUB panel. Function
VTR/Mixer Interface
System Control
VR/Switch Select
DET-3 Search Dial Detector
SW-232 Switch Board
CN-249 Connector Board
DP-77 (Pl)
DP-77 (P2) Time Counter Display
DP-77 (R)
MB-163 Mother Board
7 Switching Regulator
Key Panel Ass'y
* Remove the top cover.
* Remove the side covers (L) and (R).
* Remove the * marked screws.
Then open the key panel ass’y.
KEY PANEL ASSY
