SECTION
2
SERVICE
INFORMATION

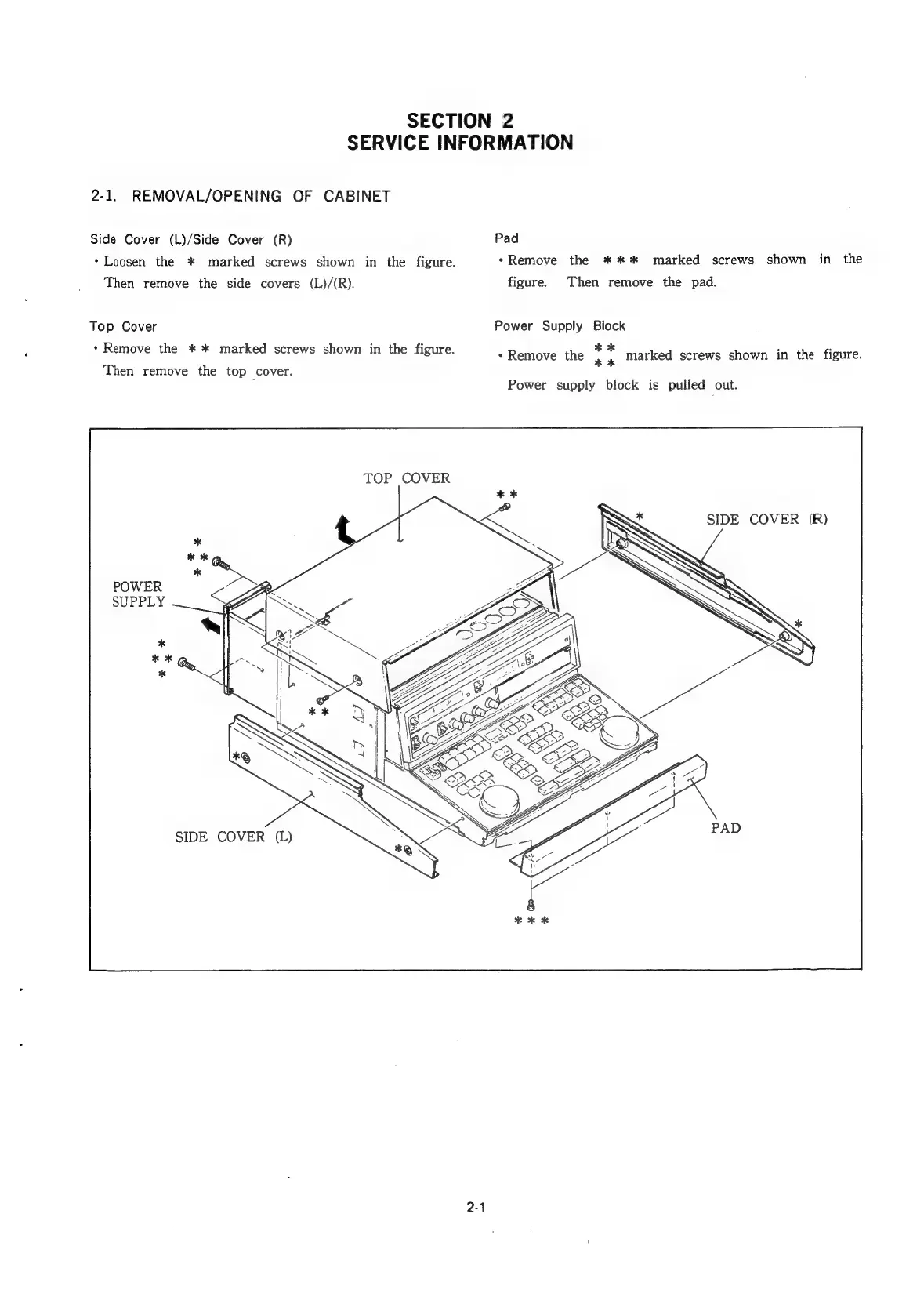

2-1.
REMOVAL/OPENING
OF
CABINET
Side
Cover
(L)/Side
Cover
(R)
*
Loosen
the
*
marked
screws
shown
in
the
figure.
Then
remove
the
side
covers
(L)/(R).
Top
Cover
*
Remove
the
*
*
marked
screws
shown
in
the
figure.
Then
remove
the
top
cover.
TOP
COVER
POWER
SUPPLY
SIDE
COVER
(L)
Pad
*Remove
the
*%*%*
marked
screws
shown
in
the
figure.
Then
remove
the
pad.
Power
Supply
Biock
«Remove
the
marked
screws
shown
in
the
figure.
Power
supply
block
is
pulled
out.
SIDE
COVER
(R)
2-1
