SECTION 4
ELECTRICAL ALIGNMENT
4-1. RAMP SIGNAL ADJUSTMENT
(Equipment Requirde]
Digital voltmeter
(Setting)
e Turn off the power switch.
e Turn on only the bit 6 of the S3 on the SY-113 board.
¢ Turn on the power switch again. The unit enters the I/O test mode.
(ADDRESS)

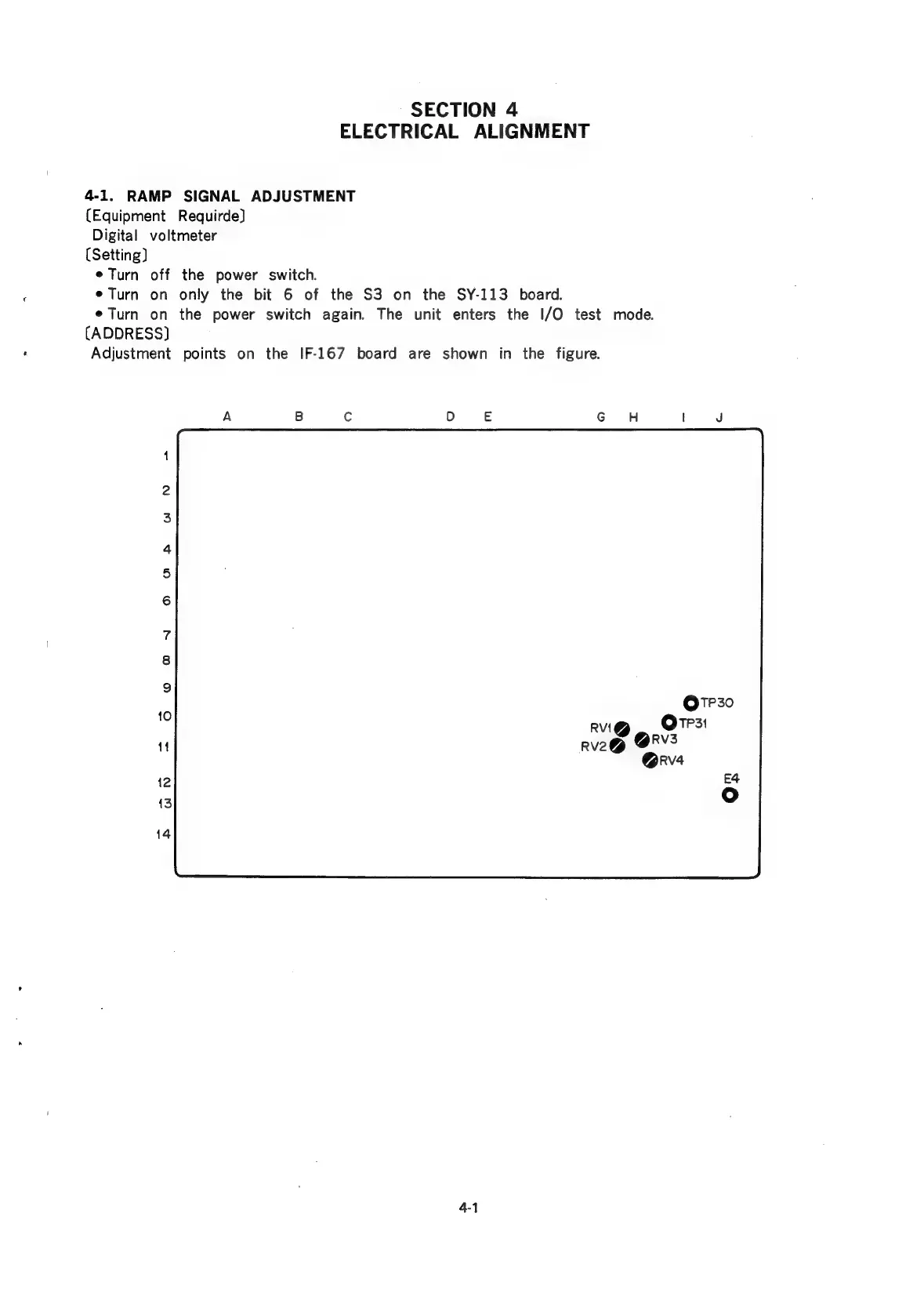

Adjustment points on the IF-167 board are shown in the figure.
OrTP30
RVig@. O7P31
Rv2® @Rv3
@rv4
4-1
