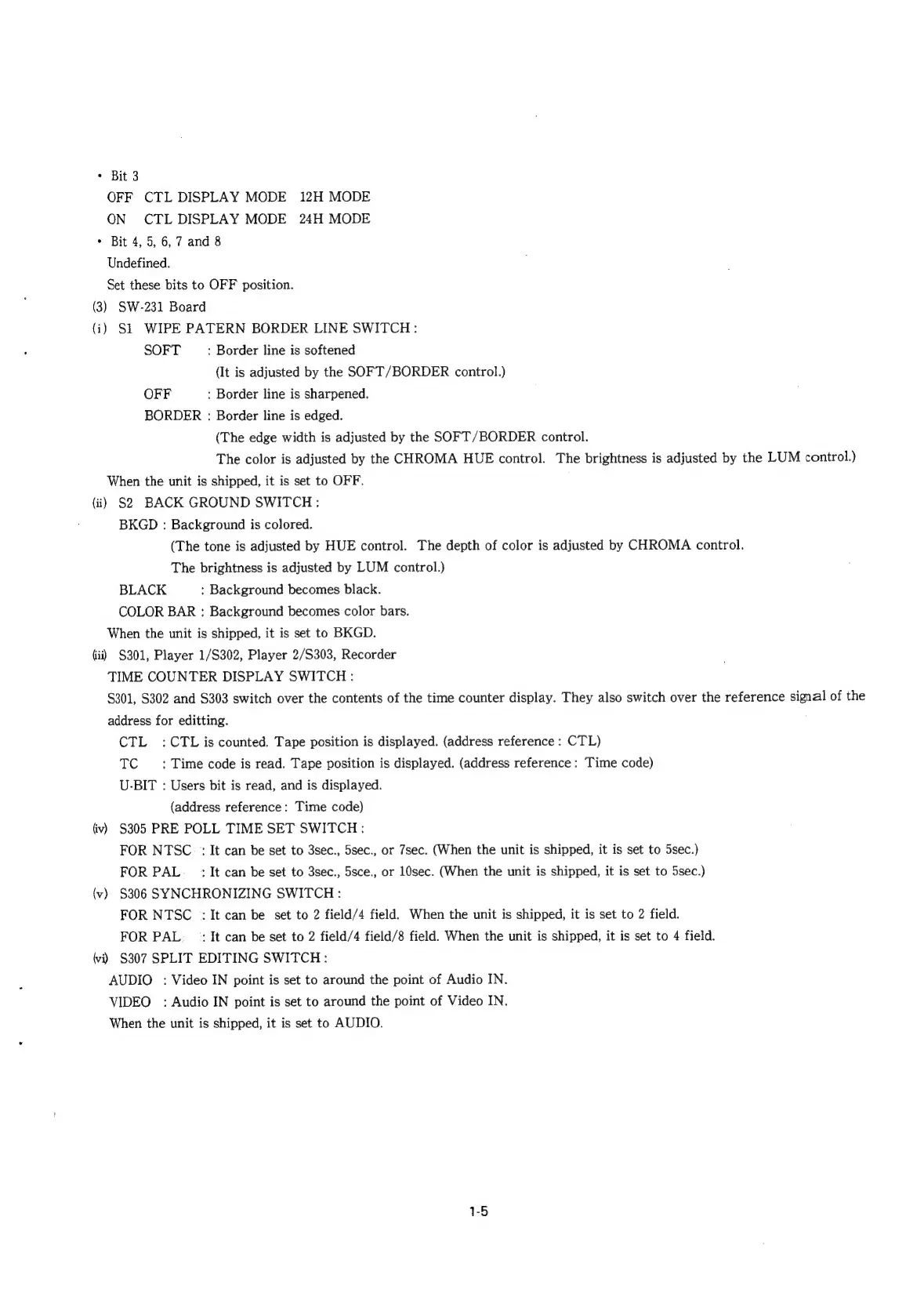

+ Bit 3
OFF CTL DISPLAY MODE 12H MODE
ON CTL DISPLAY MODE 24H MODE
* Bit 4, 5, 6, 7 and 8
Undefined.
Set these bits to OFF position.
(3) SW-231 Board
(i) Sl WIPE PATERN BORDER LINE SWITCH:
SOFT : Border line is softened
(It is adjusted by the SOFT/BORDER control.)
OFF : Border line is sharpened.
BORDER : Border line is edged.
(The edge width is adjusted by the SOFT/BORDER control.
The color is adjusted by the CHROMA HUE control. The brightness is adjusted by the LUM control.)
When the unit is shipped, it is set to OFF.
(ii) S2 BACK GROUND SWITCH:
BKGD : Background is colored.
(The tone is adjusted by HUE control. The depth of color is adjusted by CHROMA control.
The brightness is adjusted by LUM control.)
BLACK : Background becomes black.
COLOR BAR : Background becomes color bars.
When the unit is shipped, it is set to BKGD.
(ii) $301, Player 1/S302, Player 2/S303, Recorder
TIME COUNTER DISPLAY SWITCH :
$301, $302 and $303 switch over the contents of the time counter display. They also switch over the reference signal of the
address for editting.
CTL :CTL is counted. Tape position is displayed. (address reference: CTL)
TC : Time code is read. Tape position is displayed. (address reference: Time code)
U-BIT : Users bit is read, and is displayed.
(address reference: Time code)
fv) S305 PRE POLL TIME SET SWITCH:
FOR NTSC : It can be set to 3sec., 5sec., or 7sec. (When the unit is shipped, it is set to 5sec.)
FOR PAL _ : It can be set to 3sec., 5sce., or 10sec. (When the unit is shipped, it is set to 5sec.)
(v) S306 SYNCHRONIZING SWITCH :
FOR NTSC : It can be set to 2 field/4 field. When the unit is shipped, it is set to 2 field.
FOR PAL _ : It can be set to 2 field/4 field/8 field. When the unit is shipped, it is set to 4 field.
i) S307 SPLIT EDITING SWITCH:
AUDIO : Video IN point is set to around the point of Audio IN.
VIDEO : Audio IN point is set to around the point of Video IN.
When the unit is shipped, it is set to AUDIO.
1-5
