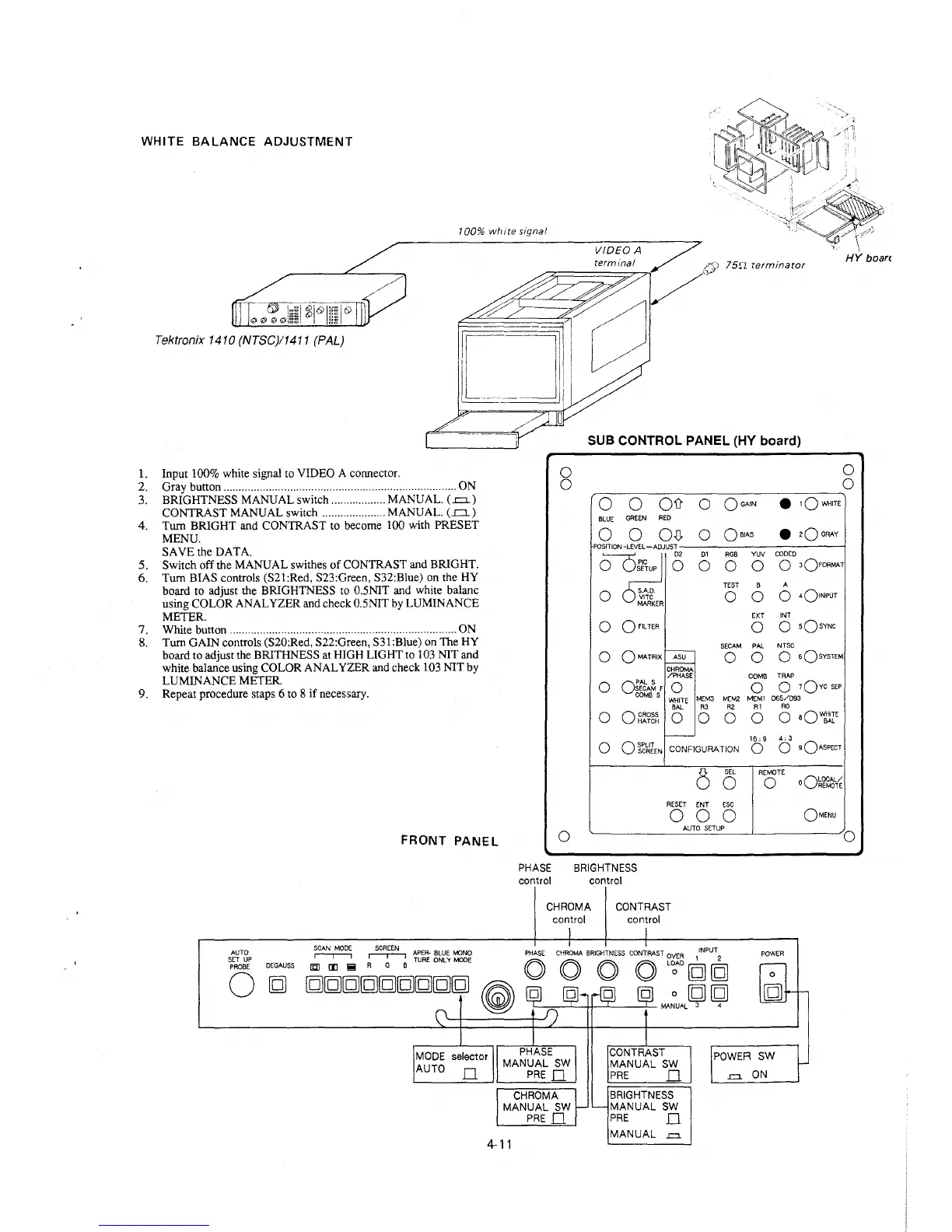

WHITE BALANCE ADJUSTMENT
100% white signal
Tektronix 1410 (NTSC)/1411 (PAL}
1. Input 100% white signal to VIDEO A connector.
2. Gray button ............................................................................. ON
3. BRIGHTNESS MANUAL switch .................. MANUAL.(.=.)
CONTRAST MANUAL switch ..................... MANUAL. (.ci)
4. Turn BRIGHT and CONTRAST to become 100 with PRESET
MENU.
SAVE the DATA.
5. Switch off the MANUAL swithes of CONTRAST and BRIGHT.
6. Turn BIAS controls (S21:Red, S23:Green, S32:Blue) on the HY
board to adjust the BRIGHTNESS to 0.SNIT and white balanc
using COLOR ANALYZER and check 0.5NIT by LUMINANCE
METER.
7. White button ........................................................................... ON
8. Turn GAIN controls (S20:Red, S22:Green, S31:Blue) on The HY
board to adjust the BRITHNESS at HIGH LIGHT to 103 NIT and
white balance using COLOR ANALYZER and check 103 NIT by
LUMINANCE METER.
9. Repeat procedure staps 6 to 8 if necessary.
