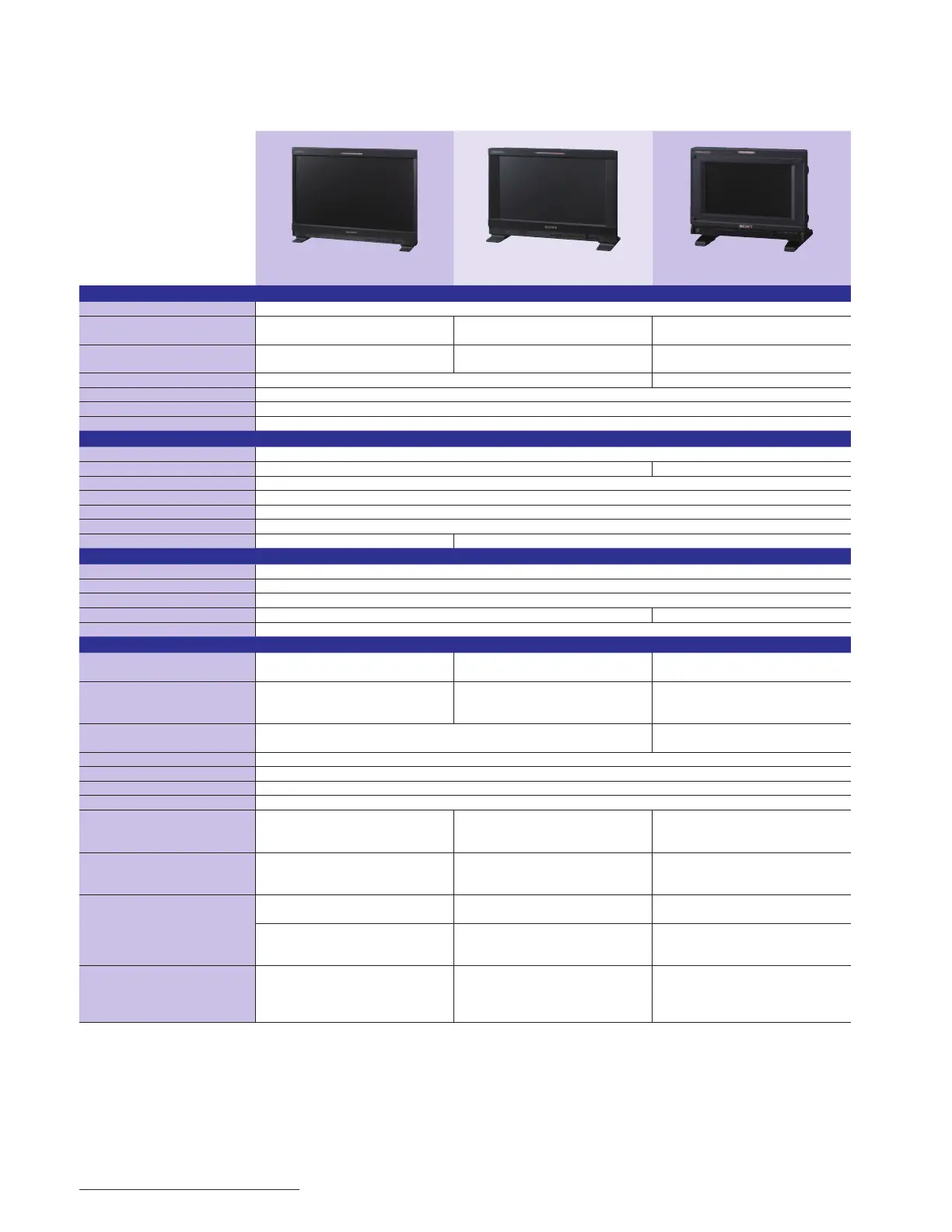

PVM Series
PVM-2541 PVM-1741 PVM-740
Picture Performance
Panel OLED panel
Picture size (diagonal) 24 5/8 inches
623.4 mm
16 1/2 inches
419.7 mm
7 1/2 inches
188.0 mm
Effective picture size (H x V) 21 1/2 x 12 1/8 inches
543.4 x 305.6 mm
14 1/2 x 8 1/8 inches
365.8 x 205.7 mm
6 1/2 x 3 5/8 inches
163.9 x 92.2 mm
Resolution (H x V) 1920 x 1080 pixels (Full HD) 960 x 540 pixels (QHD)
Aspect 16:9
Panel drive RGB 10-bit
Viewing angle (panel specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
Input
Composite BNC (x1), 1.0 Vp-p ±3 dB sync negative
SDI BNC (x2) BNC (x1)
HDMI HDMI (x1) (HDCP correspondence)
Audio Stereo mini jack (x1), -5 dBu 47 kilohms or higher
Parallel remote Modular connector 8-pin (x1) (pin-assignable)
Serial remote (LAN) RJ-45 modular connector (Ethernet) (x1) (10BASE-T/100BASE-TX)
DC IN connector – XLR-type 4-pin (male) (x1), 12 V DC (output impedance 0.05 ohms or less)
Output
Composite BNC (x1), loop-through, with 75 ohms automatic termination
SDI BNC (x1), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 ohms unbalanced
Audio monitor out Stereo mini jack (x1)
Speaker (Built-in) 1.0 W (mono) 0.5 W (mono)
Headphones output Stereo mini jack (x1)
General
Power requirement
AC 100 V to 240 V, 50/60 Hz, 1.4 A to 0.6 A
AC 100 V to 240 V, 50/60 Hz, 1.0 A to 0.5 A,
DC 12 V, 7.0 A
AC 100 V to 240 V, 50/60 Hz, 0.5 A to 0.3 A,
DC 12 V, 1.9 A
Power consumption Approx. 130 W (max.)
Approx. 88 W (average power consumption in
the default status)
Approx. 90 W (AC power supply) (max.)
Approx. 70 W (AC power supply) (average power
consumption in the default status)
Approx. 27 W (max.)
Operating temperature 32°F to 95°F (0°C to 35°C)
Recommended: 68°F to 86°F (20°C to 30°C)
0°C to 40°C (32°F to 104°F)
Recommended: 68°F to 86°F (20°C to 30°C)
Operating humidity 30% to 85% (no condensation)
Storage and transport temperature -4°F to +140°F (-20°C to +60°C)
Storage and transport humidity 0% to 90%
Operating, storage, and transport pressure 700 hPa to 1060 hPa
Dimensions (W x H x D)
(with stand)
22 3/4 x 16 3/4 x 6 3/4 inches
576.0 x 424.8 x 171.4 mm
17 1/4 x 12 1/8 x 6 3/8 inches
436.0 x 305.6 x 161.0 mm
8 7/8 x 7 1/4 x 6 3/8 inches
222.4 x 183.5 x 161.8 mm
(when AC adaptor is attached)
Dimensions (W x H x D)
(without stand)
22 3/4 x 16 1/8 x 4 3/8 inches
576.0 x 408.8 x 110.0 mm
17 1/4 x 11 1/2 x 4 3/4 inches
436.0 x 289.6 x 120.0 mm
8 7/8 x 6 5/8 x 2 7/8 inches
222.4 x 166 x 70 mm
(when AC adaptor is detached)
Weight 23 lb 5.9 oz
10.6 kg
15 lb 14 oz
7.2 kg
4 lb 6 oz
2.0 kg
27 lb 16 oz
12.7 kg
(with an optional SU-561 monitor stand)
20 lb 8 oz
9.3 kg
(with an optional SU-561 monitor stand)
5 lb 12 oz
2.6 kg
(When AC adaptor is installed)
Supplied accessories
AC power cord (1), AC plug holder (1),
Operating Instructions (1), CD-ROM (1),
Using the CD-ROM manual (1)
AC power cord (1), AC plug holder (1),
Mounting bracket (2) (including 4 screws),
Operating Instructions (1), CD-ROM (1),
Using the CD-ROM manual (1)
AC power cord (1), AC plug holder (1),
AC power adaptor (1), Operating Instructions (1),
CD-ROM (1), Using the CD-ROM manual (1)
