Sony BVS-3100P - Page 26

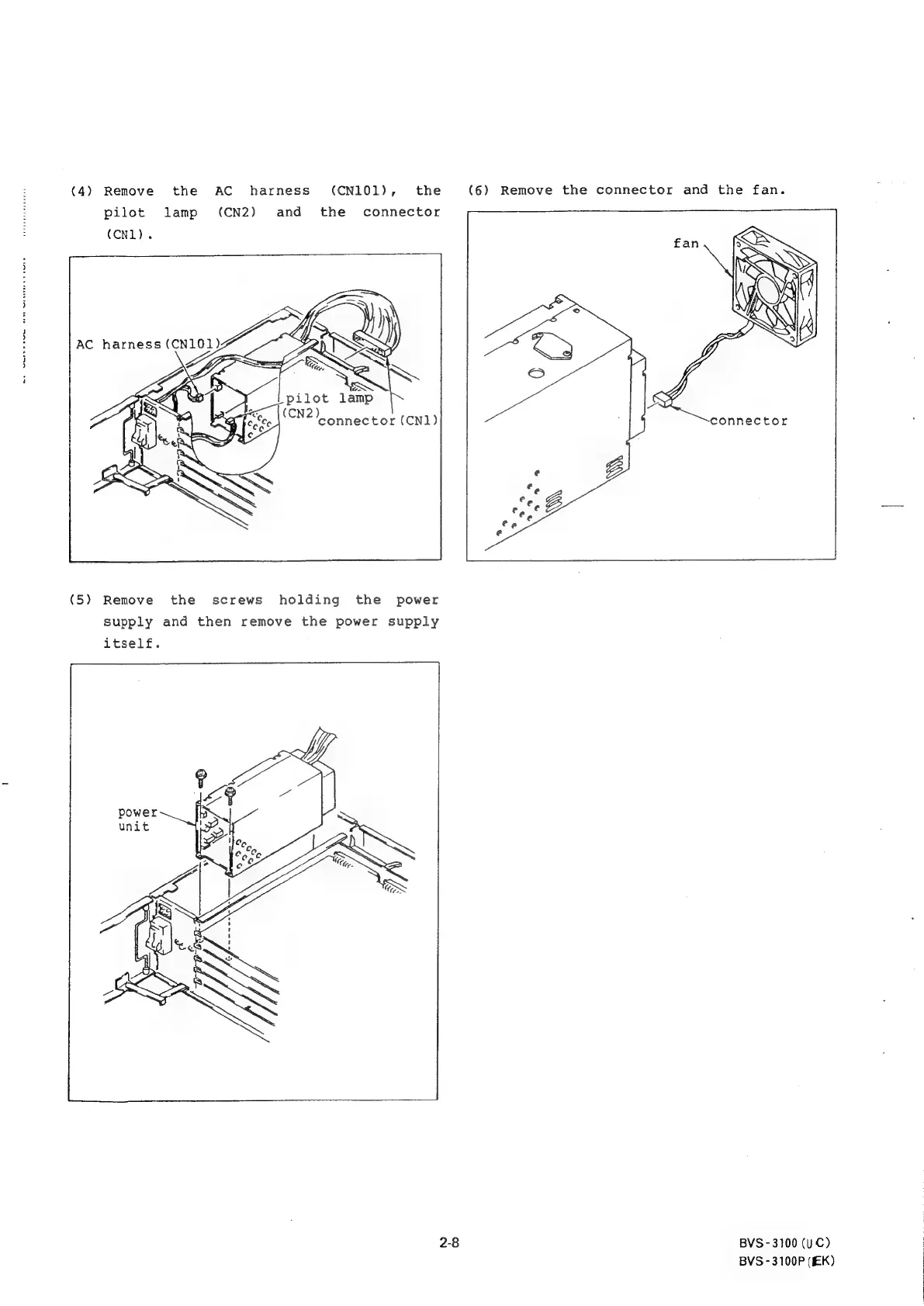

(4) Remove the AC harness (CN101), the
pilot lamp (CN2) and the connector
(CNL).
(CN2) onnector (CNL)
(5) Remove the screws holding the power
supply and then remove the power supply
itself.
2-8
(6) Remove the connector and the fan.
BVS-3100 (UC)
BVS -3100P (EK)
