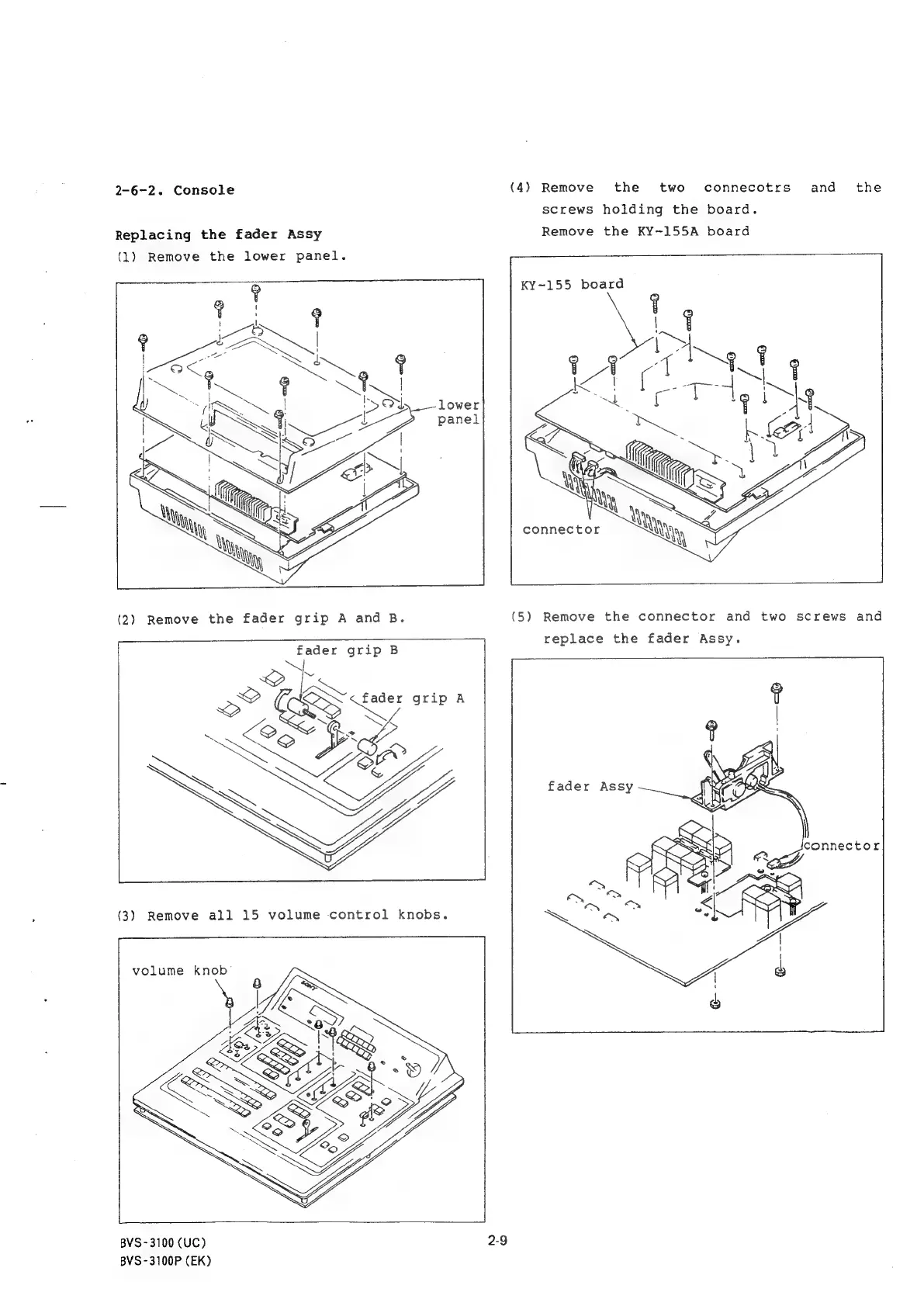

2-6-2.
Console
(4)
Remove
the
two connecotrs and the
screws holding the board.
Replacing
the
fader
Assy
Remove
the
KY-155A
board
(1) Remove the lower panel.
KY-155 board
fader grip B
es
SS oe grip aA
25 Bs
ESS
fader Assy -
(3) Remove all 15 volume control knobs.
volume knob
BVS- 3100 (UC) 2-9
BVS-3100P (EK)
(5) Remove the connector and two screws and
replace the fader Assy.
