Sony C2104 - Proximity Switch

Troubleshooting Guide (mech)
1273-2281 Rev2
 Sony Mobile Communications AB –
Company Internal
30(48)
Problem Areas

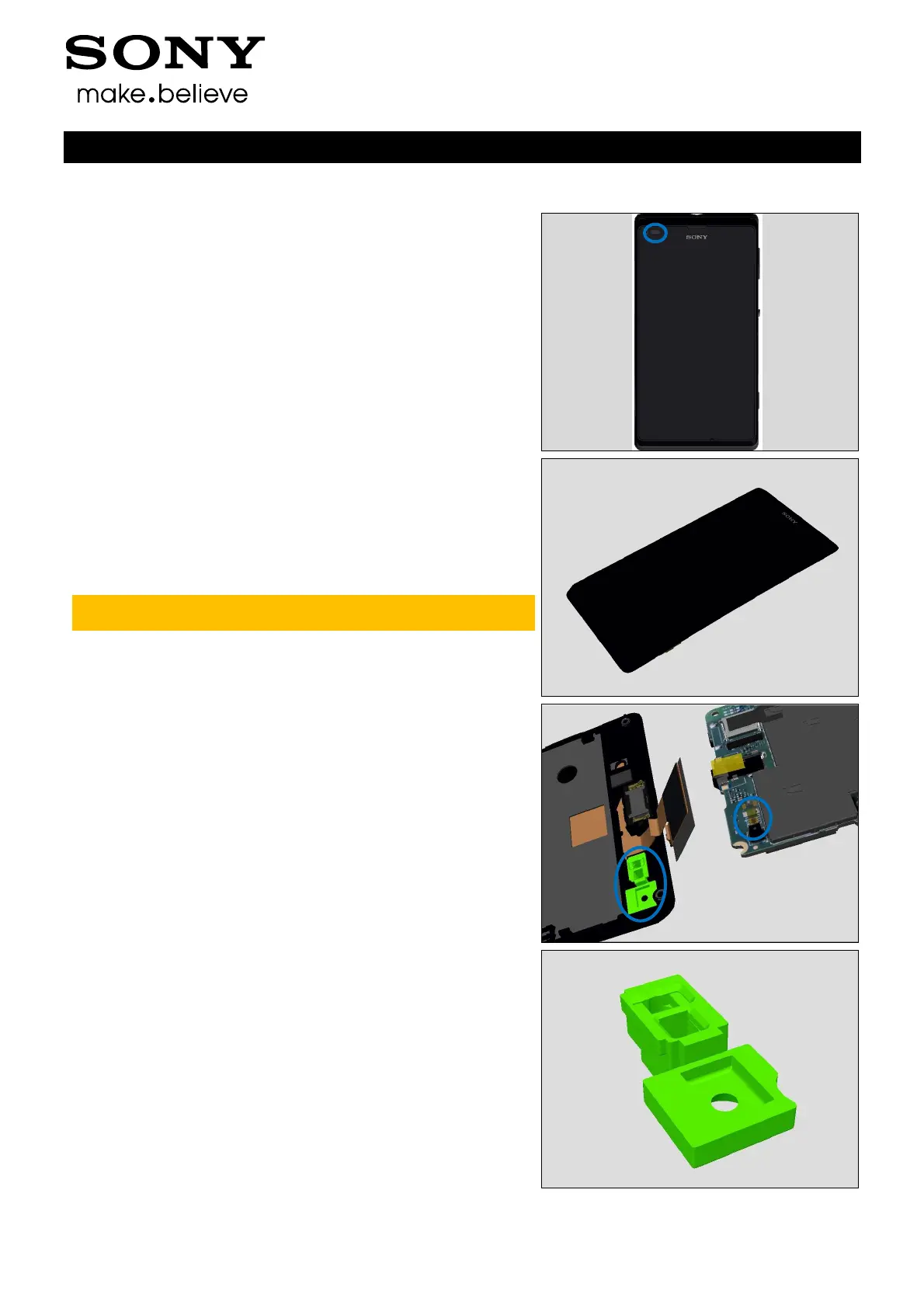

1.17 Proximity Switch
1.17.1 Proximity Switch
Check:
Inspect the external area of the proximity switch window.
Action:
1. If dirty – clean it.
2. If the external window area is damaged – replace the
Front Housing LCM TP Assembly.
Note: Calibrate the Touch Panel/P-sensor/L-sensor 1275-0758
Trouble Shooting Application – mechanical.
Check:
Inspect the proximity switch sensor on the main PBA and
the Rubber PL Sensor on the Front Housing LCM TP
Assembly
Action:
1. If dirty or clogged – clean them.
2. If the Rubber PL Sensor is damaged – replace it.
3. Replace Main PBA.
