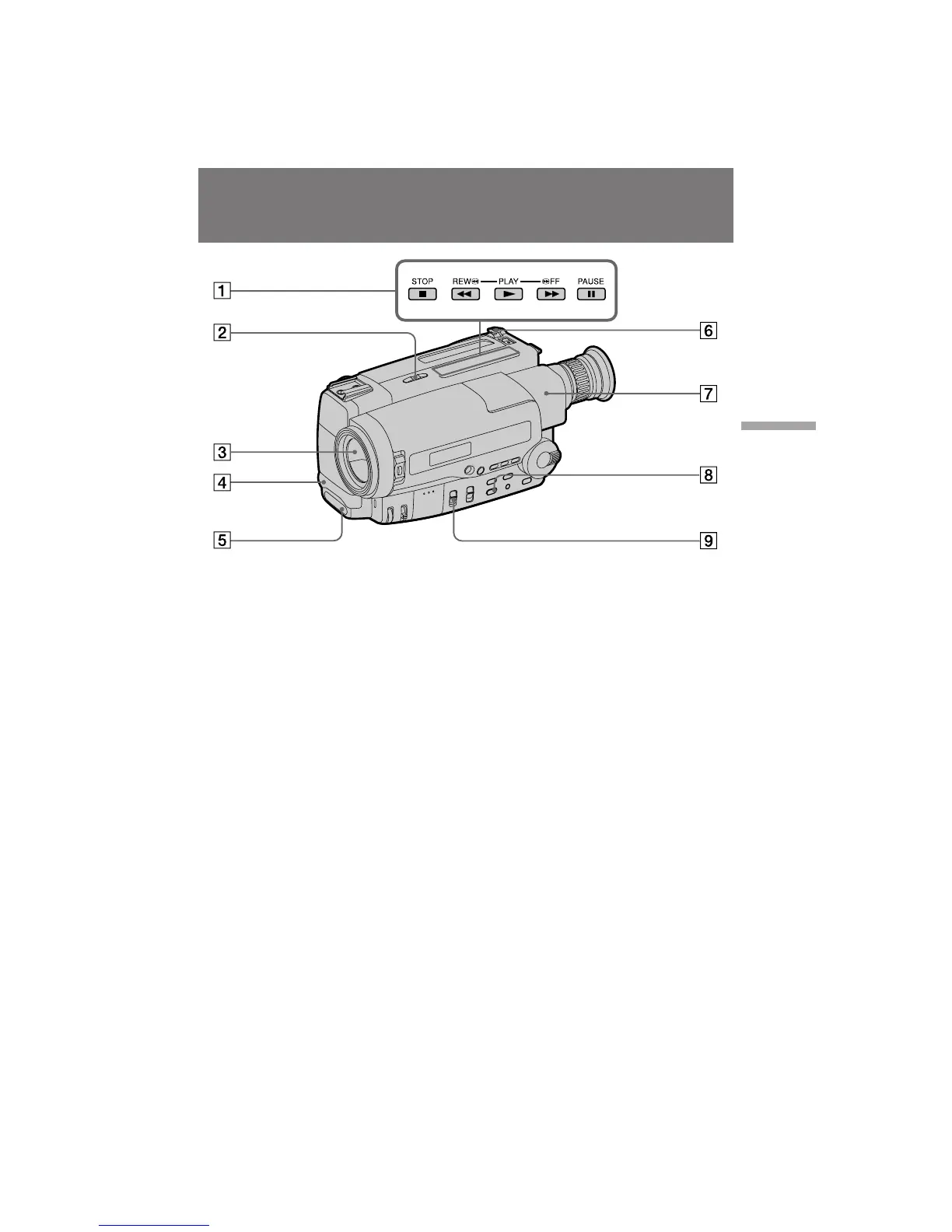

Identifying the parts
1 Tape transport buttons (p. 20)
p STOP
0 REW (rewind)
( PLAY (playback)
) FF (fast forward)
P PAUSE
These buttons will function in PLAYER
mode.
2 EDITSEARCH button (p. 18)
3 Lens cover
4 Built-in microphone
5 Remote sensor (p. 79, 80)
Aim the Remote Commander here for remote
control.
6 Power zoom lever (p. 15)
7 Viewfinder (p. 14)
8 16:9 WIDE button (CCD-TR502E/TR620E
only) (p. 37)
9 STEADY SHOT button (CCD-TR620E only)
(p. 42)
