SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.

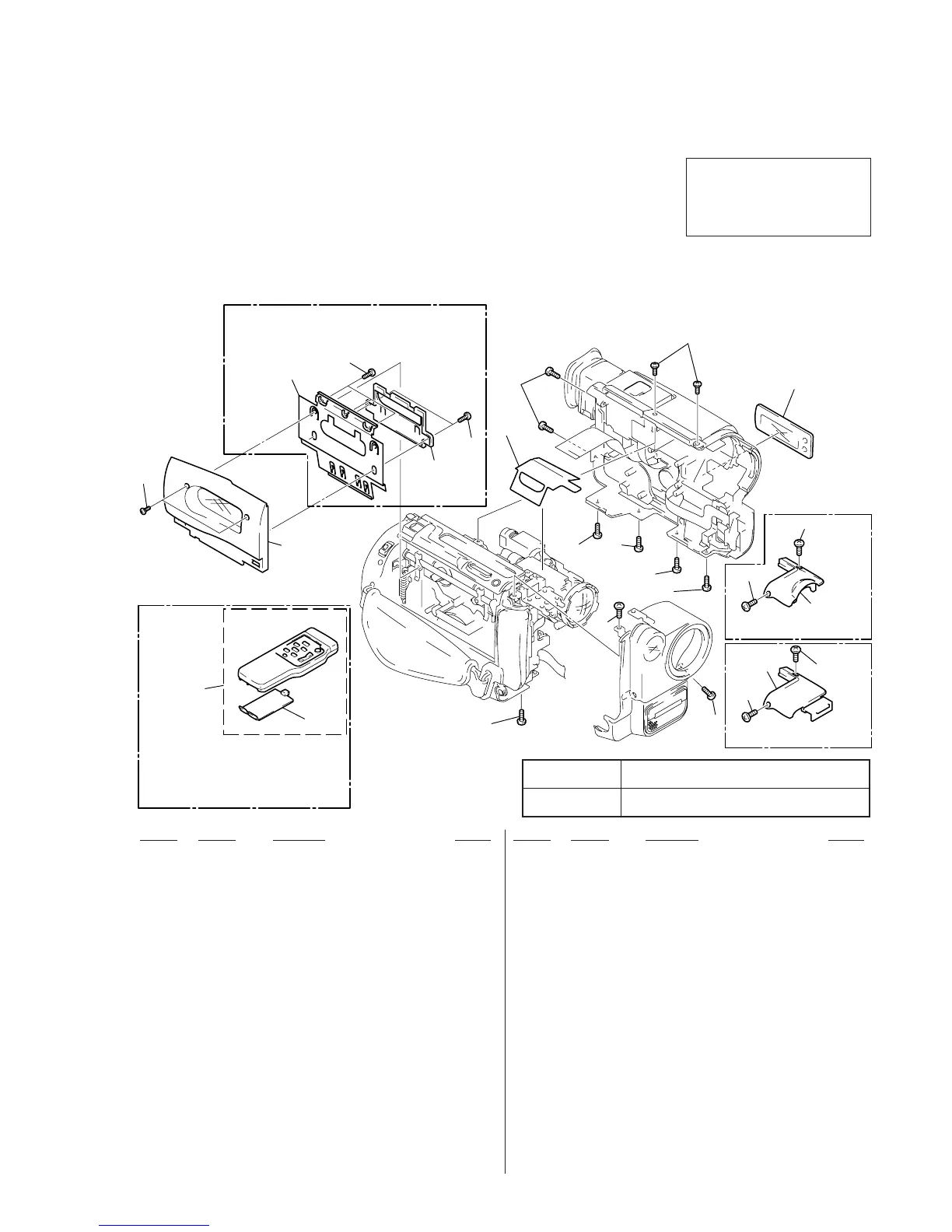

6-1-1. REMOTE COMMANDER AND CASSETTE LID ASSEMBLY
1 1-467-574-21 REMOTE COMMANDER (RMT-708)
(TR425E/TR515E/TR516E/TR713E/TRV27E/
TRV27EP/TRV36E/TRV46E)
2 3-958-131-01 LID, BATTERY CASE (for RMT-708)
(TR425E/TR515E/TR516E/TR713E/TRV27E/
TRV27EP/TRV36E/TRV46E)
3 3-962-826-01 SCREW (2 x 4)
4 3-713-791-01 SCREW (M1.7 x 4), TAPPING, P2
(TR515E/TR713E/TRV36E/TRV46E:AEP,UK,EE,NE,RU)
4 3-713-791-51 SCREW (M1.7 x 3.5), TAPPING, P2
(TR415E/TR425E/TRV26E/TRV27E)
5 X-3948-222-1 LID ASSY, CASSETTE
(TR516E/TRV46E:E,HK,AUS,CN,JE)
5 X-3948-223-1 LID ASSY, CASSETTE (TR315E/TRV16E/TRV27EP)
5 X-3949-177-1 LID (IM) ASSY, CASSETTE
(TR515E/TR713E/TRV36E/TRV46E:AEP,UK,EE,NE,RU)
5 X-3949-529-1 LID (IM) ASSY, CASSETTE
(TR415E/TR425E/TRV26E/TRV27E)
6 3-987-678-11 PLATE, CASSETTE SHIELD
(TR415E/TR425E/TR515E/TR713E/TRV26E/TRV27E/
TRV36E/TRV46E:AEP,UK,EE,NE,RU)
CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E
CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
3
3
3
3
3
3
3
11
3
3
6
5
7
4
4
10
2
1
3
9
3
3
8
3
3
7 3-987-677-01 COVER (C), FERRITE
(TR415E/TR425E/TR515E/TR713E/TRV26E/TRV27E/
TRV36E/TRV46E:AEP,UK,EE,NE,RU)
8 3-987-645-01 CABINET (N) (No video light models)
9 3-987-652-01 CABINET (LT) (TR516E)
9 3-987-652-02 CABINET (LT) (TR515E/TR713E/TRV36E/TRV46E)
10 3-053-274-11 WINDOW (900), LCD (TR713E)
10 3-053-274-31 WINDOW (900), LCD (TR515E)
10 3-053-274-51 WINDOW (900), LCD (TR516E)
10 3-053-275-11 WINDOW (910), LCD (TRV46E)
10 3-053-275-31 WINDOW (910), LCD (TRV36E)
10 3-053-275-91 WINDOW (910), LCD (TRV26E)
10 3-054-607-11 WINDOW (900), LCD (TR415E)
10 3-054-607-21 WINDOW (900), LCD (TR315E)
10 3-054-607-31 WINDOW (900), LCD (TR425E)
10 3-054-642-01 WINDOW (910), LCD (TRV16E)
10 3-054-642-11 WINDOW (910), LCD (TRV27E/TRV27EP)
11 3-053-276-01 SHEET (M), LENS INSULATING
See page 6-3
See pages 6-4 to 6-5
See page 6-2
CCD-TR415E/TR425E/TR515E/TR713E
CCD-TRV26E/TRV27E/TRV36E
TRV46E:AEP,UK,EE,NE,RU
• Abbreviation
East European model is abbreviated as EE.
North European model is abbreviated as NE.
Russian model is abbreviated as RU.
Hong Kong model is abbreviated as HK.
Australian model is abbreviated as AUS.
Chinese model is abbreviated as CN.
Tourist model is abbreviated as JE.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
CCD-TR425E/TR515E/TR516E/
TR713E
CCD-TRV27E/TRV27EP/TRV36E/
TRV46E
Video light model CCD-TR515E/TR516E/TR713E
CCD-TRV36E/TRV46E
No video light CCD-TR315E/TR415E/TR425E
model CCD-TRV16E/TRV26E/TRV27E/TRV27EP
Video light models
No video light models
