Sony CCD-TRV36E - Page 75

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E
CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
4-80 4-81
4-82

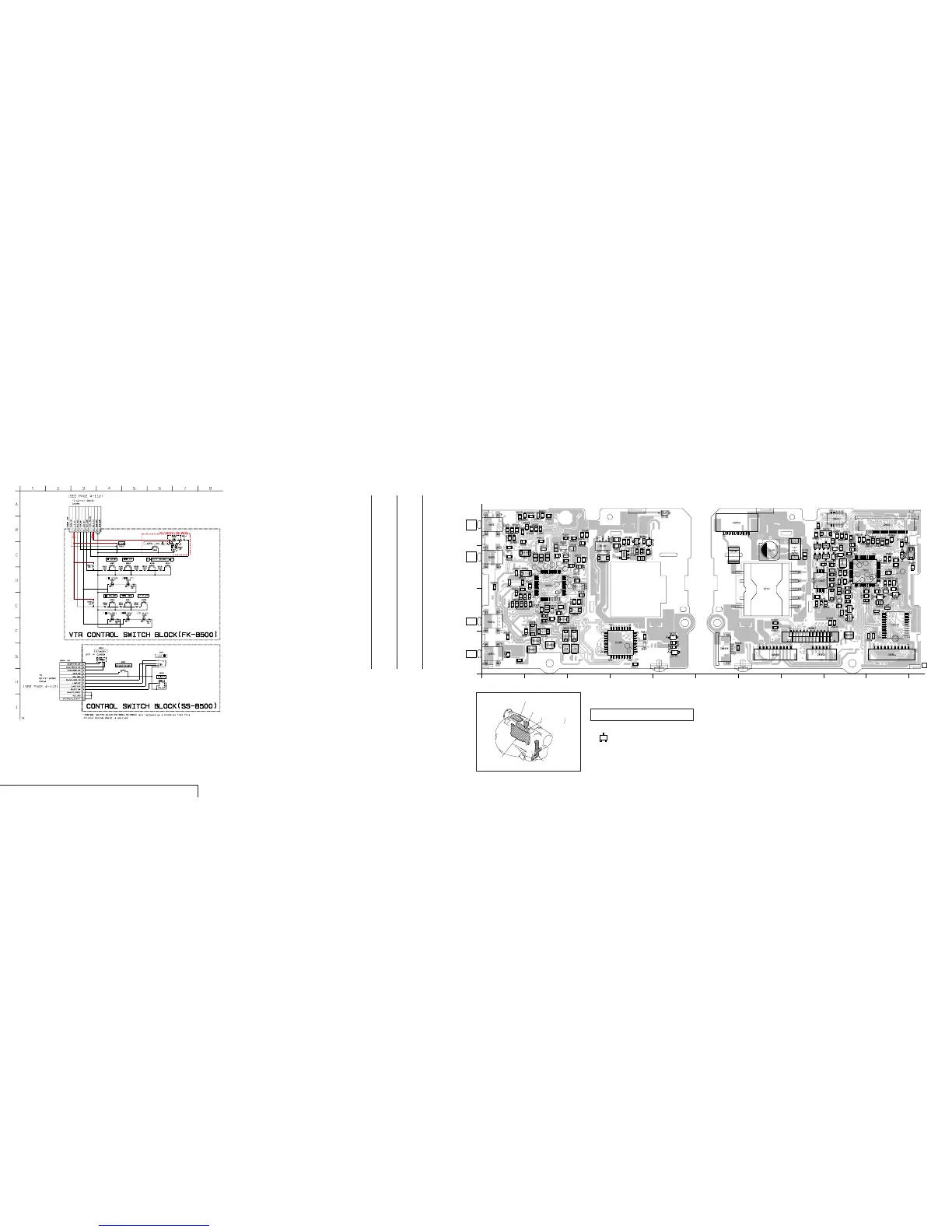

PD-107 (RGB DECODER, LCD DRIVE, BACK LIGHT, LCD (TRV Series)) PRINTED WIRING BOARD
– Ref No. PD-107 BOARD: 10,000 series –
CONTROL SWITCH BLOCK, RGB DECODER, LCD DRIVE, BACK LIGHT, LCD
PD-107 (TRV Series)
FK-8500, SS-8500
4-79
PD-107 BOARD
C5501 B-10
C5502 B-10
C5503 C-2
C5504 A-10
C5505 A-10
C5506 B-2
C5507 A-3
C5508 B-2
C5509 C-3
C5511 C-2
C5512 C-2
C5513 C-1
C5514 C-2
C5515 C-2
C5516 C-2
C5517 C-1
C5518 C-3
C5519 B-2
C5520 C-3
C5601 A-2
C5602 A-2
C5603 B-10
C5604 C-9
C5605 B-9
C5607 B-9
C5608 C-9
C5609 B-10
C5610 C-9
C5612 C-10
C5616 B-9
C5618 D-9
C5619 D-2
C5620 D-10
C5621 C-2
C5622 C-11
C5623 C-2
C5624 B-3
C5625 B-2
C5633 C-9
C5701 C-8
C5702 C-8
C5703 C-3
C5704 C-4
C5705 C-6
C5706 C-4
C5801 A-4
CN5501 D-9
CN5601 D-10
CN5701 D-6
CN5801 A-8
CN5802 A-7
CN5803 A-8
CN5804 A-10
CN5805 A-6
D5601 B-10
D5603 B-10
D5604 C-10
D5605 C-9
D5701 A-5
D5702 A-5
D5703 D-5
D5704 D-4
FB5502 A-2
FB5503 A-2
FB5504 A-2
FB5603 A-9
IC5501 B-10
IC5502 C-2
IC5601 C-9
IC5602 C-8
IC5701 C-4
IC5801 A-4
L5501 A-3
L5601 A-2
L5605 C-9
L5701 C-7
Q5501 C-2
Q5601 B-9
Q5602 B-9
Q5605 C-8
Q5606 C-9
Q5607 C-9
Q5608 C-8
Q5701 C-3
Q5702 D-4
R5501 B-2
R5502 B-2
R5503 B-2
R5504 B-2
R5505 B-2
R5506 B-2
R5507 B-2
R5508 B-1
R5509 B-1
R5510 B-3
R5511 B-3
R5512 B-1
R5513 B-2
R5516 B-2
R5517 B-1
R5518 B-1
R5519 C-3
R5520 C-3
R5521 B-2
R5522 B-2
R5526 C-1
R5527 B-1
R5528 C-3
R5531 C-2
R5532 C-3
R5537 D-8
R5541 D-2
R5542 D-3
R5544 C-2
R5545 B-3
R5602 C-2
R5603 D-8
R5604 D-3
R5605 C-1
R5606 C-10
R5607 A-2
R5608 B-9
R5608 C-10
R5610 B-10
R5612 B-9
R5613 B-9
R5615 B-9
R5616 B-10
R5617 B-10
R5619 B-10
R5620 B-9
R5621 C-9
R5622 B-8
R5623 B-8
R5624 B-9
R5625 C-10
R5626 C-9
R5627 C-10
R5628 C-10
R5629 B-8
R5630 C-9
R5631 B-9
R5632 B-10
R5637 C-10
R5640 C-9
R5641 C-3
R5643 C-9
R5644 C-9
R5646 C-10
R5647 D-2
R5648 D-10
R5651 D-2
R5652 D-2
R5653 D-9
R5654 D-9
R5657 D-9
R5658 D-9
R5659 D-10
R5660 D-10
R5661 D-10
R5663 C-9
R5664 D-10
R5665 D-10
R5666 D-1
R5667 D-1
R5668 D-1
R5669 D-1
R5670 D-1
R5671 D-9
R5672 D-9
R5673 D-1
R5674 D-1
R5676 D-1
R5678 D-9
R5679 D-2
R5680 D-2
R5681 D-2
R5682 D-1
R5683 D-2
R5684 D-2
R5685 D-3
R5686 D-3
R5688 C-9
R5692 C-9
R5693 C-9
R5694 C-9
R5695 C-9
R5696 D-10
R5697 C-11
R5698 D-9
R5701 A-5
R5702 A-5
R5703 C-4
R5704 D-4
R5705 D-4
R5706 C-4
R5707 C-4
R5708 D-4
R5709 C-4
R5710 D-4
R5801 C-1
R5802 C-1
R5803 A-1
R5804 A-1
R5805 A-7
R5806 A-1
R5807 B-7
R5809 B-7
R5810 B-9
R5811 A-4
R5812 A-4
S5801 D-1
S5802 C-1
S5803 B-1
S5804 A-1
T5701 B-7
• For Printed Wiring Boards.
• This board is four-layer print board. However, the patterns of
layers 2 to 3 have not been included in the diagram.
• Chip transistor
There are few cases that the part isn't mounted in this model is
printed on this diagram.
C
Q
BE
VF-99... B/W EVF models only
(B/W EVF)
PD-107... TRV series only
RGB decoder, LCD,
LCD drive, Back light
CF-61...
TRV series only
(Control)
SE-80...
TR713E only
SE-81... TRV series only
(Steady shot)
CD-210...
TR series only
CD-211... TRV series only
(CCD imager)
IR TRANSMITTER MODEL : CCD-TR713E/TRV46E
LCD
BRIGHT
(+)
LCD
BRIGHT
(–)
VOLUME
(+)
VOLUME
(–)
PD-107 BOARD (SIDE B) PD-107 BOARD (SIDE A)
12345678910
A
B
C
D
09
11
1-672-470-
11
8
7
6
5
4
2
3
1
15
11
12
13
14
10
9
