Sony CCD-TRV36E - Page 83

CCD-TR315E/TR415E/TR425E/TR515E/TR516E/TR713E
CCD-TRV16E/TRV26E/TRV27E/TRV27EP/TRV36E/TRV46E
4-106
4-107 4-108
POWER
DD-117
DD-117 BOARD
C801 E-3
C802 E-3
C803 D-3
C804 E-3
C805 E-2
C806 E-2
C807 D-2
C808 E-3
C809 D-2
C810 D-3
C811 D-2
C812 D-3
C813 D-2
C814 E-8
C815 C-3
C816 E-8
C817 E-8
C818 F-3
C819 C-3
C820 C-3
C821 C-2
C822 E-8
C823 C-3
C824 C-2
C825 B-2
C826 D-8
C827 E-2
C828 E-1
C829 E-1
C830 D-2
C831 E-2
C832 B-3
C833 B-2
C834 C-3
C836 B-2
C837 C-2
C838 C-3
C840 D-8
C841 B-3
C842 A-5
C843 B-3
C844 A-3
C846 B-3
C847 B-7
C848 B-7
C849 A-2
C850 A-3
C851 B-4
C852 B-7
C853 B-7
C854 B-3
C855 A-3
C856 E-3
C857 A-2
C860 A-6
C861 A-7
C862 A-2
C863 B-5
C864 B-6
C865 A-5
C866 A-5
C867 A-6
C868 A-6
C869 A-5
C870 E-2
C871 B-2
C872 F-3
C873 A-2
C874 A-7
C875 A-2
C876 D-6
C877 D-6
C878 B-2
CN801 C-5
CN931 C-4
CN933 A-4
CN934 D-9
CN935 G-7
CN936 F-6
D806 B-2
D809 B-7
D810 B-2
D812 B-2
D813 C-4
D814 F-4
D815 F-3
D816 E-3
D817 C-4
D818 D-1
D819 E-2
D820 B-7
D821 B-7
D822 F-3
D932 G-2
D933 F-3
D934 G-3
D935 F-3
D936 G-2
D938 E-9
FB931 D-9
FB932 E-8
FB933 D-9
IC802 D-3
IC802 E-2
R822 E-3
R824 D-2
R825 D-3
R826 D-3
R827 E-3
R828 E-3
R829 C-2
R829 D-2
R830 D-2
R831 F-3
R832 D-3
R833 D-2
R834 D-2
R835 D-3
R836 D-3
R837 D-2
R838 D-3
R840 C-3
R841 C-3
R842 E-2
R843 C-2
R844 D-6
R845 D-2
R846 D-6
R847 E-2
R849 E-2
R850 E-1
R852 D-2
R853 D-1
R854 D-2
R859 E-3
R864 E-3
R865 B-2
R866 B-2
R867 E-2
R868 A-1
R870 A-7
R871 A-7
R876 B-6
R877 A-7
R878 A-2
R879 B-6
R880 B-6
R881 B-6
R882 B-6
R883 B-8
R884 B-8
R885 A-7
R887 B-8
R888 B-8
R889 A-7
R890 A-7
R891 A-8
R892 A-8
R893 A-8
R894 A-7
R895 A-6
R896 A-8
R897 A-8
R898 A-6
R899 A-7
R900 A-6
R901 A-6
R902 A-6
R903 A-7
R904 A-8
R905 A-7
R906 A-8
R907 A-8
R908 B-2
R910 B-2
R911 B-2
R912 B-2
R913 F-4
R914 D-2
R915 E-1
R916 A-7
R917 A-7
R918 A-1
R919 A-7
R920 A-7
R921 D-7
R922 D-7
R923 D-7
R924 B-6
R925 A-8
R926 C-4
R932 G-3
R933 F-6
R934 F-6
R935 F-6
R936 F-6
R937 F-6
R938 F-6
R939 F-6
R940 F-3
R941 G-3
R942 E-8
R943 G-3
R944 B-5
R945 B-5
T801 B-6
L801 D-7
L802 D-7
L803 D-7
L804 E-9
L805 B-7
L806 C-8
L807 C-6
L808 B-8
L809 C-7
L810 B-4
L811 B-3
L812 B-3
L813 B-3
L814 A-2
L815 A-3
L816 B-3
L817 A-3
L818 A-2
L819 A-3
L820 D-8
L821 A-6
L822 A-2
LF801 D-6
PS801 F-3
PS802 F-2
PS803 F-2
PS804 F-2
PS805 F-2
PS806 F-3
PS807 F-3
Q801 F-3
Q803 E-3
Q804 F-3
Q805 F-3
Q806 C-2
Q807 C-3
Q808 C-3
Q809 B-2
Q810 C-2
Q812 C-3
Q813 C-2
Q814 C-2
Q815 C-2
Q817 C-2
Q819 D-8
Q820 E-2
Q823 B-2
Q824 E-2
Q826 A-7
Q827 A-2
Q828 B-6
Q829 A-6
Q830 B-6
Q831 A-7
Q832 B-5
Q833 A-2
Q834 B-6
Q835 A-8
Q836 A-8
Q837 A-7
Q838 A-8
Q839 A-8
Q840 A-8
Q841 A-7
Q842 A-6
Q843 A-6
Q844 A-8
Q845 A-8
Q846 A-7
Q847 A-6
Q848 A-8
Q849 A-7
Q850 A-8
Q851 E-3
Q852 B-2
Q853 B-2
Q854 B-2
Q855 B-2
Q856 A-6
Q932 G-3
Q933 G-3
Q934 G-3
R801 E-2
R802 E-3
R803 E-3
R804 D-3
R805 D-2
R806 E-2
R807 E-3
R808 D-3
R809 E-3
R810 D-2
R811 D-2
R812 D-2
R813 F-3
R814 D-3
R815 D-3
R816 D-3
R817 D-3
R818 D-2
R819 D-2
R820 D-3
R821 D-2
VF-119... Color EVF models only
(Color EVF)
DD-117
(Power)
VL-21...
TR515E/TR516E/TR713
E
VL-22... TRV36E/TRV46E
(Video light)
VF-120...
Color EVF models only
(Color EVF)
MA-345...
TR series
MA-346... TRV series
(Mic, Laser link)
PJ-90...
TR series
PJ-91... TRV series
(AV Out)
VC-215
Camera, Y/C processor, IN/OUT,
REC.PB head amp, Servo/System control,
Servo, Audio, IR transmitter, Mode control
CF-60... TR series only
(Control)
LB-54...
Color EVF models only
(Back light)
AK
KA
A
K
DD-117 BOARD (SIDE B) DD-117 BOARD (SIDE A)
123456789
A
B
C
D
E
F
G
09
1-672-457-
11 21
1
2

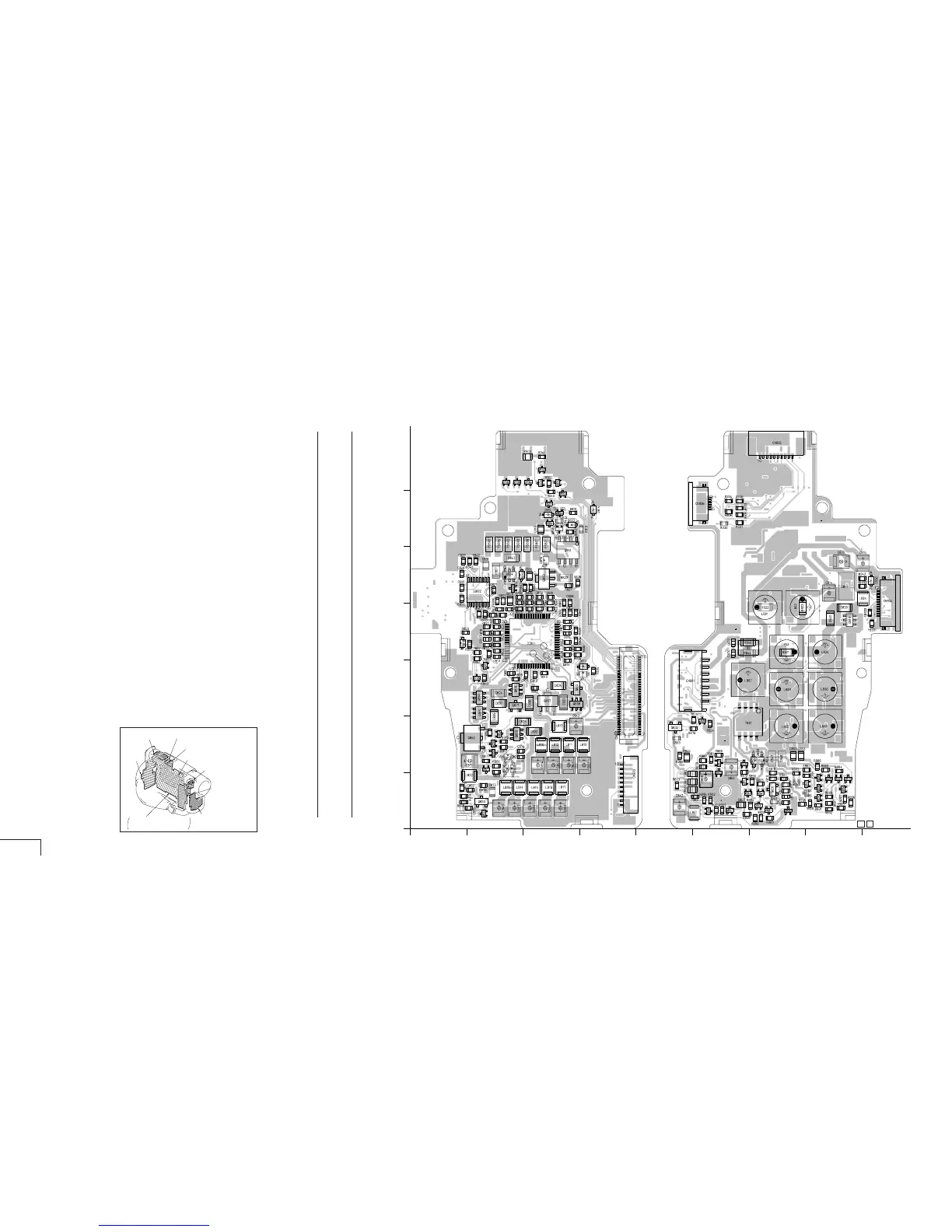

DD-117 (POWER) PRINTED WIRING BOARD
– Ref No. DD-117 BOARD: 2,000 series –
