CDP-C75ES/C85ES/C705

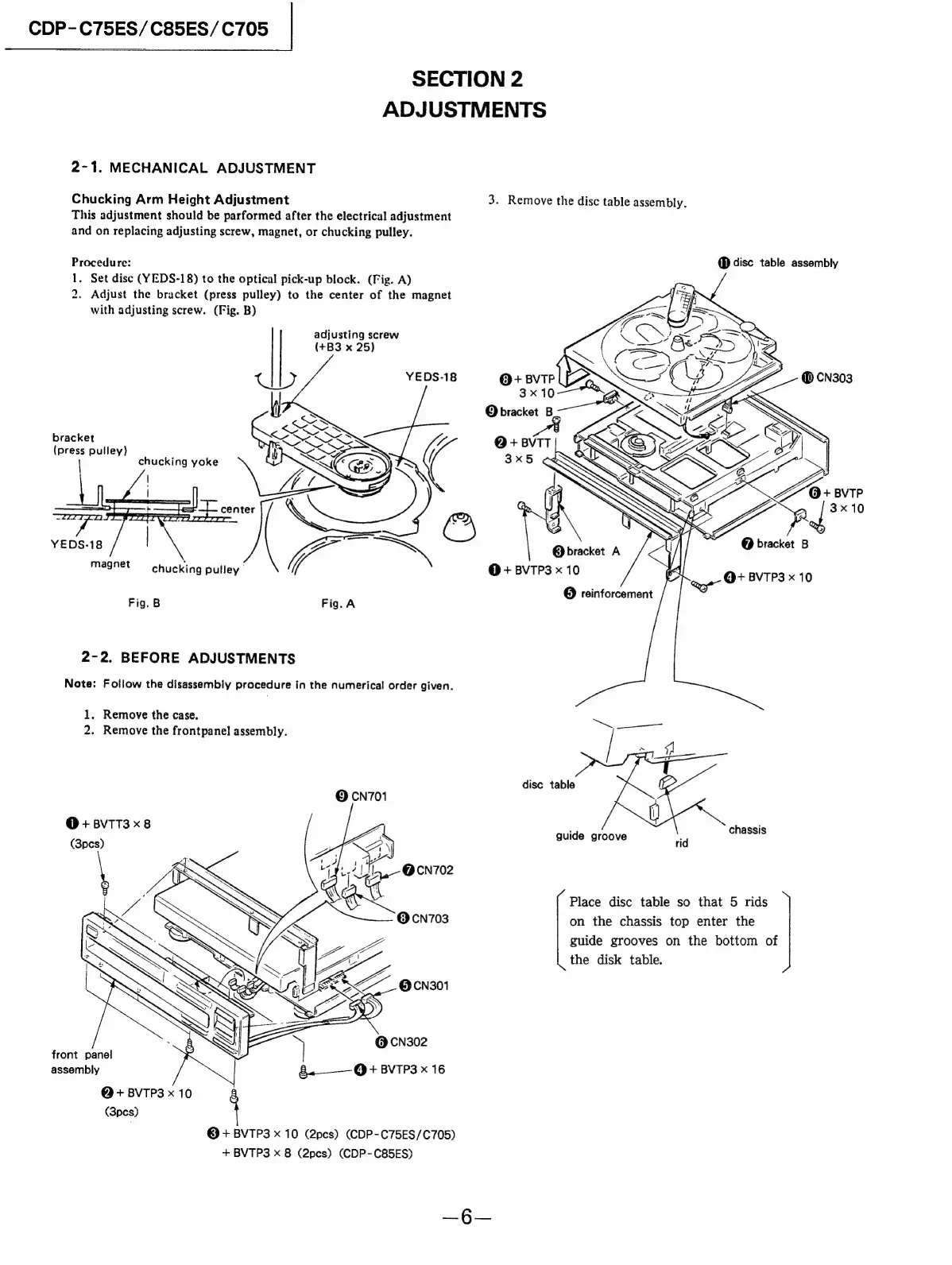

SECTION 2
ADJUSTMENTS
2-1. MECHANICAL ADJUSTMENT
Chucking Arm Height Adjustment
This adjustment should be parformed after the electrical adjustment
and on replacing adjusting screw, magnet, or chucking pulley.
3.
Remove
the
disc
table
assembly.
Procedure:
1. Set disc (YEDS-18) to the optical pick-up block. (Fig. A)
2. Adjust the bracket (press pulley) to the center of the magnet
with adjusting screw. (Fig. B)
@ disc table assembly
adjusting screw
(+B3 x 25)
YEDS-18
bracket
(press pulley)
|
chucking yoke
A776: BVTP
Via
YEDS-18
magnet chucking pulley. @ + BVTP3 x 10
© reinforcement
Fig. B Fig. A
2-2. BEFORE ADJUSTMENTS
Note: Follow the disassembly procedure in the numerical order given.
1.
Remove
the
case.
Ge
Tete
2.
Remove
the
frontpanel
assembly.
disc table
@® N701
@ + BVTT3 x8
: chassis
guide groove
(3pcs)
rid
Place disc table so that 5 rids
on the chassis top enter the
guide grooves on the bottom of
the disk table.
@ CN302
g-._—_— + BVTP3 x 16
front panel
assembly
@ + BVTP3 x 10
(3pcs) :
@ + BVTP3 x 10 (2pcs) (CDP-C75ES/C705)
+ BVTP3 x 8 (2pes) (CDP-C85ES)
