Sony CDP-X3000 - Disassembly Procedures; Top Plate Assembly Removal

– 10 –
• This set can be disassembled in the order shown below.
SECTION 3
DISASSEMBLY
TOP PLATE ASS’Y
(Page 10)
BACK PANEL ASS’Y
(Page 13)
FRONT PANEL ASS’Y
(
Pa
g
e 11
)
MAIN BOARD
(Page 13)
OPTICAL PICK-UP
(Page 12)
BASE UNIT
(Page 11)
SLED MOTOR
(Page 12)
Note: Follow the disassembly procedure in the numerical order given.

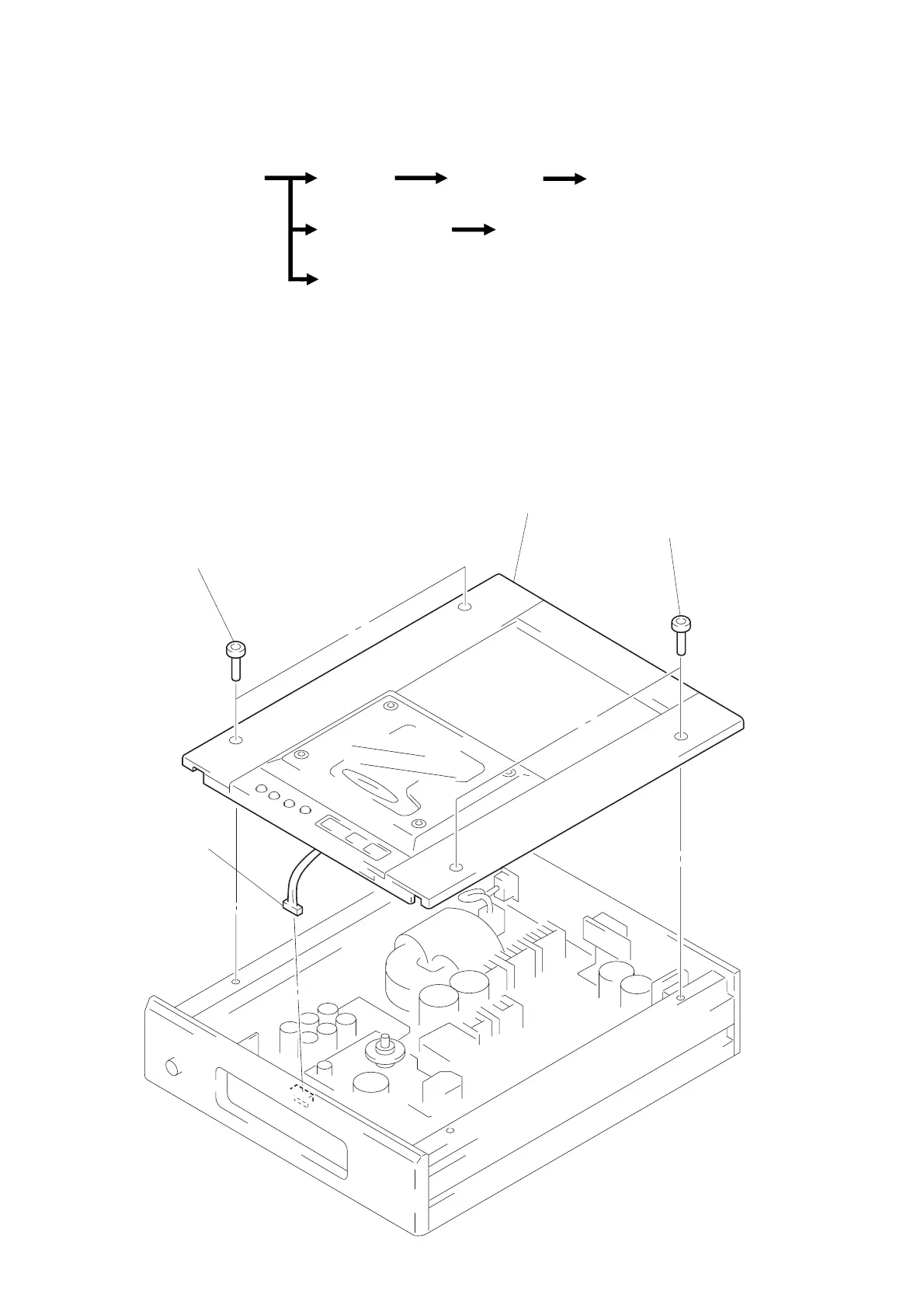

TOP PLATE ASS’Y
1 two ornamental screws
1 two ornamental screws
2 top plate ass’y
3 connector
(CN805)
