Sony CDP-X3000 - Front Panel Assembly Disassembly; Base Unit Disassembly Steps

– 11 –

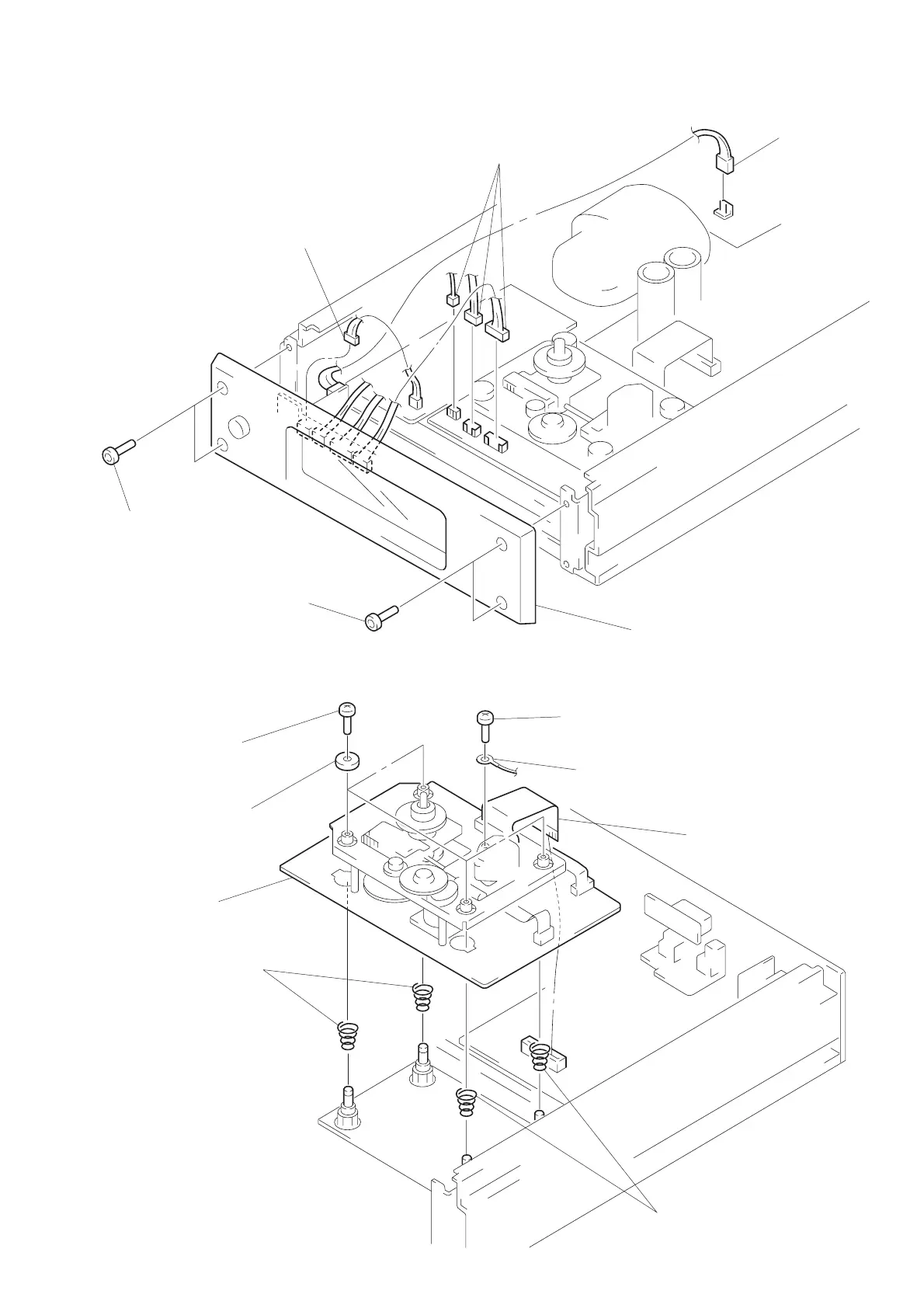

FRONT PANEL ASS’Y
BASE UNIT
1 connector
(CN801)
2 three connectors
(CN111-113)
3 connector
(CN941)
4 two hexagon socket screws
(M3
× 8)
4 two hexagon socket screws
(M3
× 8)
5 front panel ass’y
1 flat wire (23 core)
(CN301)
2 screw
(BVTT3
× 6)
3 lug
4 four screws
(B2.6
× 6)
5 four holders (SP)
6 base unit
7 two compression
springs (BU)
7 two compression springs (BU)
