Sony CDP-X3000 - Sled Motor and Optical Pick-up Removal

– 12 –

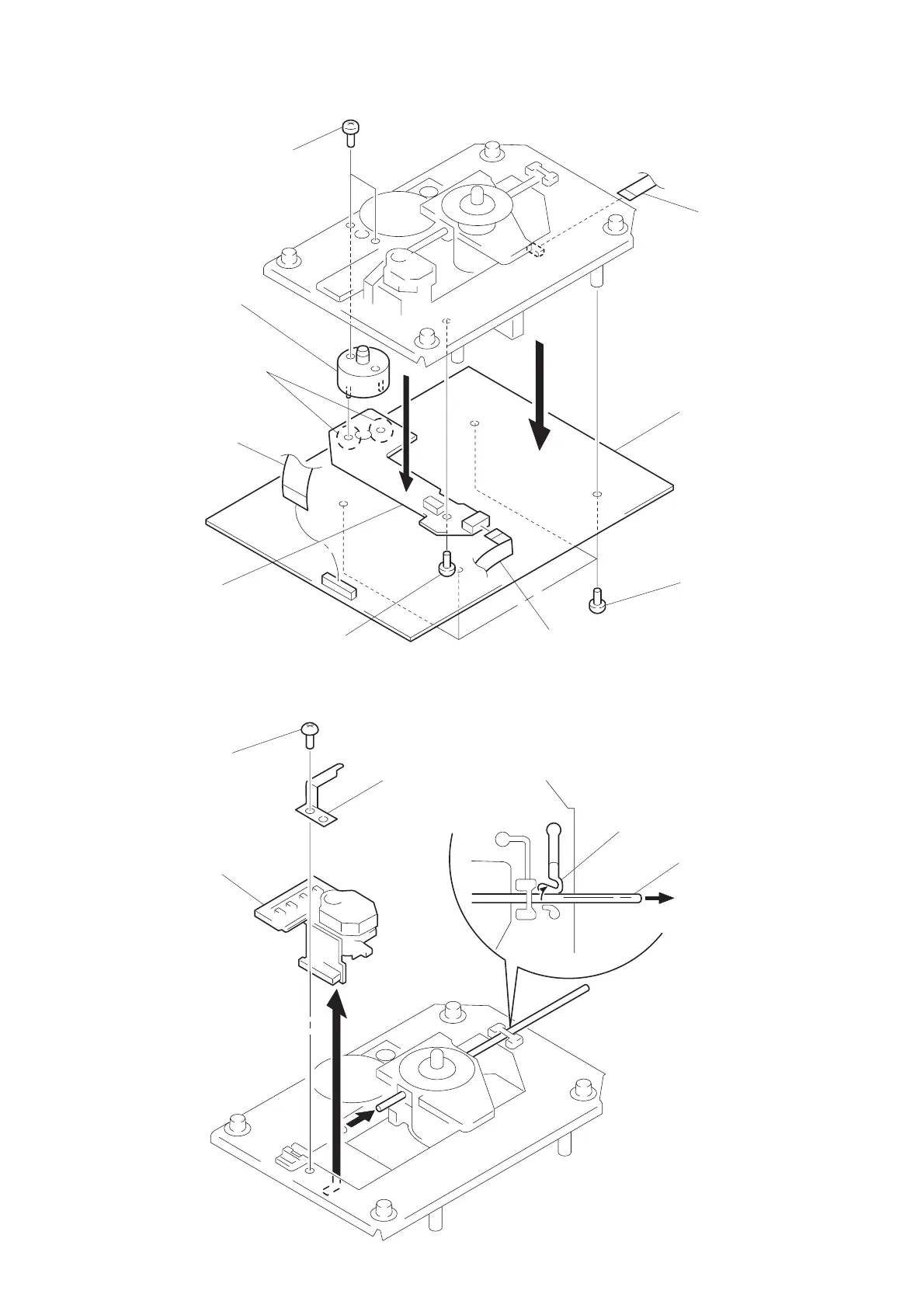

SLED MOTOR
OPTICAL PICK-UP
6 two precision screws
(P1.7
× 2.5)
0 sled motor
5 flat wire (6 core)
(CN107)
4 SERVO board
3 four screws
(B2.6
× 5)
2 flat wire (7 core)
(CN109)
7 screw
(BVTT2.6
× 8)
8 SLED board
1 flat wire (16 core)
(CN109)
3 screw
(BVTT3
× 8)
4 leaf spring (OP)
1 claw
2 sled shaft
A
5
Remove the optical
pick-up to direction
of the arrow
A
9 Removal
two solders.
