Sony CDP-X3000 - Back Panel and Main Board Removal

– 13 –

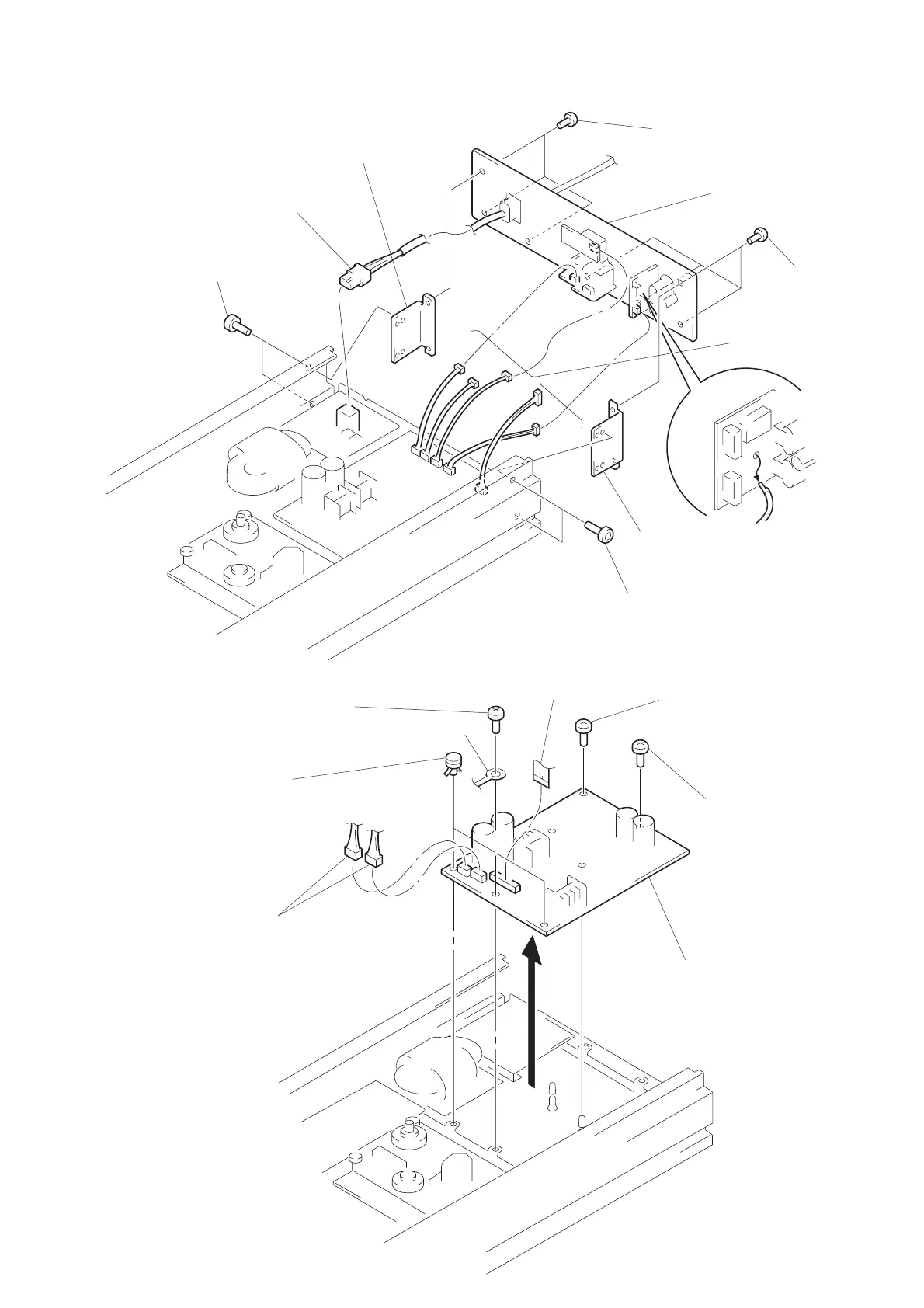

BACK PANEL ASS’Y
MAIN BOARD
4 two ornamental screws
(M3
× 8)
6 bracket (SIDE)
3 Removal the
solder.
(JW2)
2 five connectors
(CN204-206, 402, 502)
5 four screws
(BVTT3
× 6)
7 back panel ass’y
5 three screws
(BVTT3
× 6)
6 bracket (SIDE)
1 connector
(CN942)
4 two ornamental screws
(M3
× 8)
6 MAIN board
3 screw
(BVTT3
× 6)
3 screw
(BVTT4
× 6)
1 flat wire (23 core)
(CN301)
4 lug
3 screw
(BVTT4
× 6)
5 two rivets
2 two connectors
(CN901, 902)
