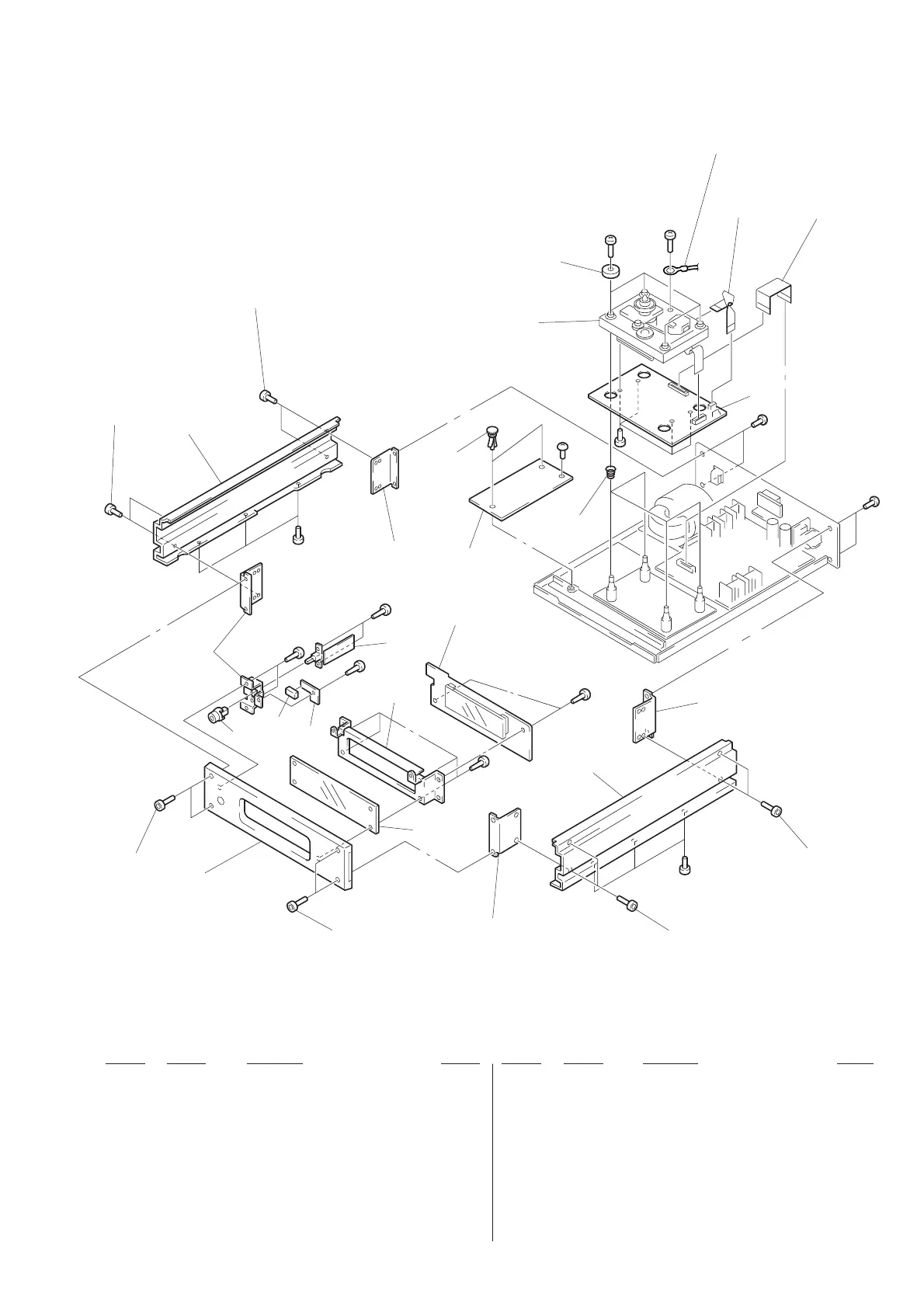

Sony CDP-X3000 - Front Panel Section Exploded View

– 53 –
(2) FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-960-910-11 SCREW, ORNAMENTAL
52 X-4947-749-1 PANEL ASSY, FRONT (X3000)
52 X-4948-705-1 PANEL ASSY, FRONT (X3000ES)
53 X-4947-759-1 BUTTON ASSY, POWER
* 54 1-663-650-12 LED BOARD
* 55 1-663-645-11 AC SW BOARD
* 56 A-4699-304-A DISPLAY BOARD, COMPLETE
* 57 1-663-644-13 POWER BOARD
* 58 4-986-466-01 BRACKET (SIDE)
59 4-960-910-21 SCREW, ORNAMENTAL (M3X8)
60 3-531-576-11 RIVET
61 4-986-497-01 SPRING (BU), COMPRESSION
* 62 4-943-119-01 HOLDER (SP)
63 1-777-923-11 WIRE (FLAT TYPE) (7 CORE)
64 1-777-924-11 WIRE (FLAT TYPE) (23 CORE)
* 65 A-4699-302-A SERVO BOARD, COMPLETE
66 4-986-473-01 PLATE, INDICATION
67 4-988-643-01 COVER (LED)
68 4-988-742-11 SCREW (M3X8), HEXAGON SOCKET
51
58
59
not supplied
55
56
not supplied
54
53
67
68
52
68
66
not supplied
58
51
59
not supplied
61
57
60
65
62
63
64
BU-14B
not supplied
#12
#5
#3
#1
#12
#3
#6
#3
#3
not supplied
#4
#3
#3
#3
