Sony CDP-X3000 - Chassis and Back Panel Exploded View

– 54 –

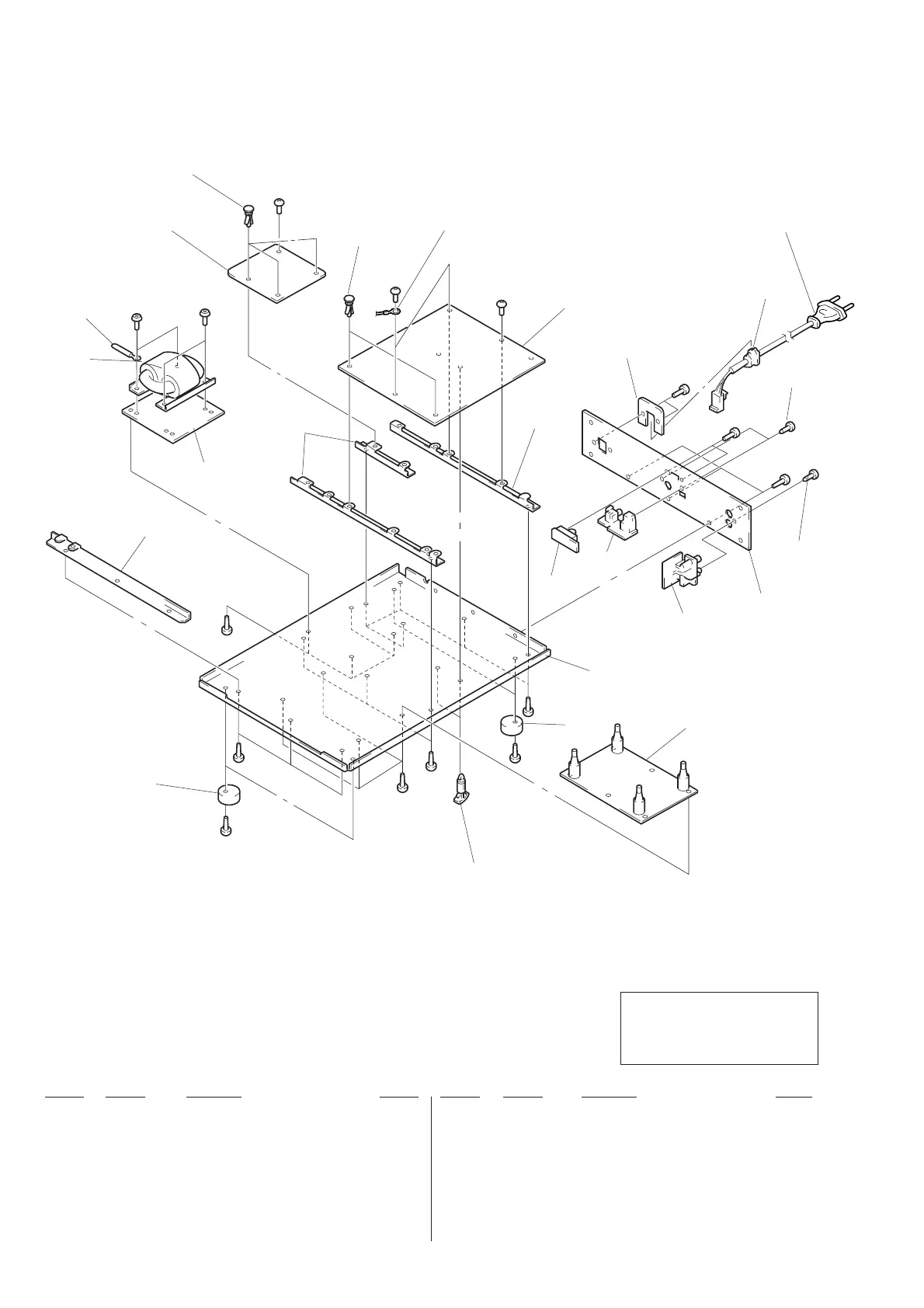

(3) CHASSIS, BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 X-4947-892-1 FOOT ASSY
* 102 1-663-647-12 AC IN BOARD
103 3-531-576-11 RIVET
* 104 A-4699-299-A AUDIO BOARD, COMPLETE
* 105 4-923-873-01 BRACKET, CORD STOPPER
* 106 3-703-244-00 BUSHING (2104), CORD
! 107 1-558-568-21 CORD, POWER
108 3-704-515-21 SCREW (BV/RING)
* 109 4-986-471-11 PANEL, BACK (X3000)
* 109 4-986-471-21 PANEL, BACK (X3000ES)
* 110 1-663-648-12 A OUT BOARD
* 111 1-663-649-11 DIGITAL OUT BOARD
* 112 1-663-646-11 D OUT SW BOARD
113 X-4947-757-1 BASE (BU) ASSY
* 114 4-988-736-01 HOLDER (PCB)
115 3-703-397-01 STOPPER, WIRING
! T1 1-431-227-11 TRANSFORMER, POWER
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
101
#7
not supplied
not supplied
not supplied
T1
102
103
103
not supplied
104
105
106
107
108
108
109
110
111
112
not supplied
not supplied
113
#3
#3
#3
#3
114
101
#3
#7
#3
#8
#12
#11
#2
#2
#12
#3
115
