Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
**************
HARDWARE LIST
**************
#1 7-685-862-09 SCREW +BVTT 2.6X6 (S)
#2 7-685-792-09 SCREW +PTT 2.6X6 (S)
#3 7-685-781-09 SCREW +PTT 2X4 (S)
#4 7-624-104-04 STOP RING 2.0, TYPE -E
#5 7-627-554-07 SCREW, PRECISION +P 2X2.2
#6 7-628-253-00 SCREW +PS 2X4
#7 7-627-553-27 SCREW, PRECISION +P 2X2.5
#8 7-624-102-04 STOP RING 1.5, TYPE -E
#9 7-627-850-28 SCREW, PRECISION +P 1.4X3
#10 7-627-000-00 SCREW, PRECISION +P 1.7X2.2 TYPE 3
#11 7-627-553-37 PRECISION SCREW +P 2X3 TYPE 3
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
1-476-488-11 WIRELESS REMOTE COMMANDER
(RM-X81RF)
3-225-028-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
(540RF)
3-225-029-11 MANUAL, INSTRUCTION, INSTALL
(ENGLISH, FRENCH) (540RF)
3-226-673-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH)
(545RF/545XRF)
3-226-674-11 MANUAL, INSTRUCTION INSTALL (ENGLISH,
SPANISH,CHINESE) (545RF/545XRF)
A-3301-944-A MAGAZINE (250T) ASSY
A-3220-786-A WIRED COMMANDER (RM-X80RF)
************************************************************

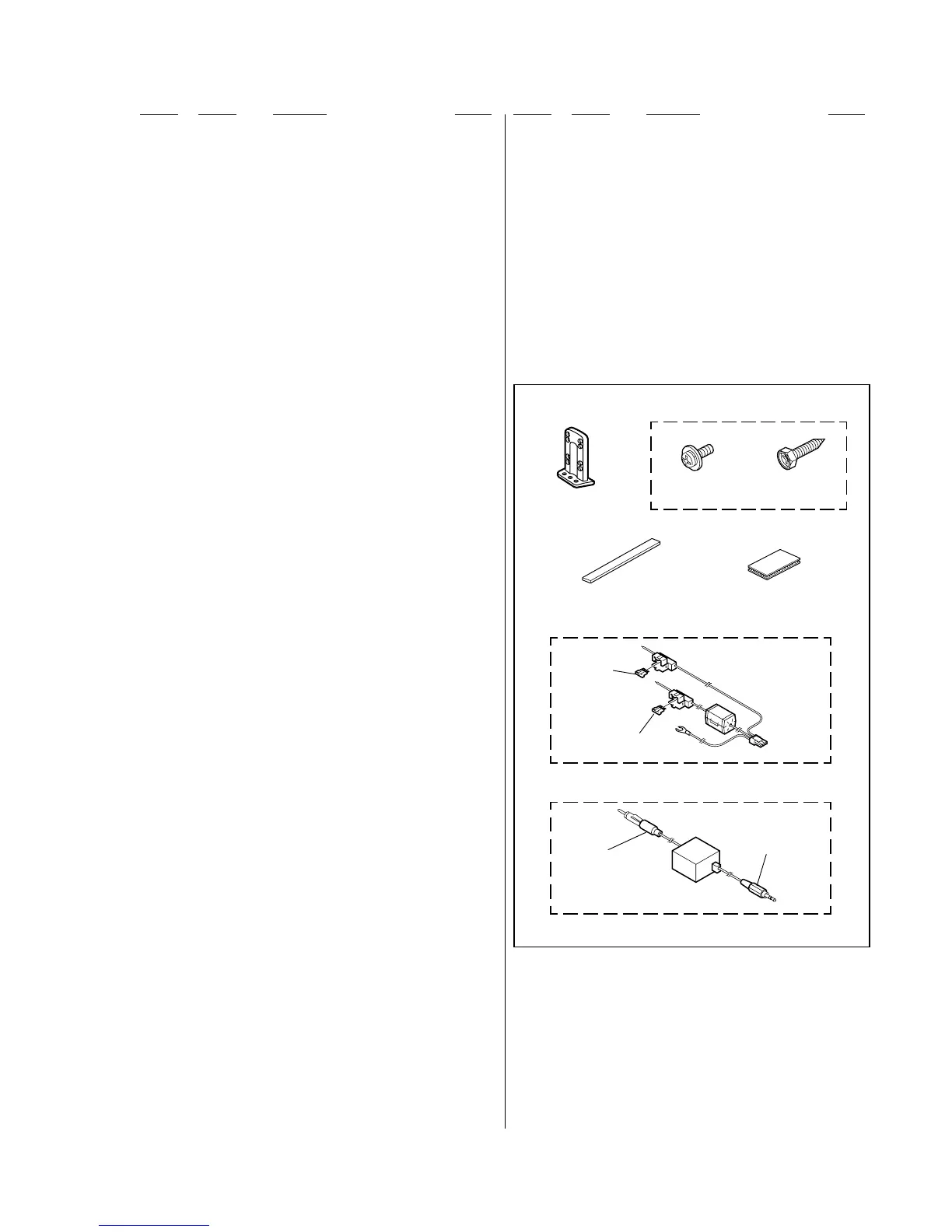

PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
501 3-040-583-21 BRACKET
* 502 X-3369-824-1 SCREW ASSY
503 not supplied
504 4-916-258-01 TAPE, MAGIC (for RM-X81RF)
505 1-792-043-11 CORD (WITH CONNECTOR) (POWER)
506 A-3301-964-A RELAY BOX ASSY
507 1-792-045-21 CORD (WITH CONNECTOR) (ANT-OUT)
(for RELAY BOX ASSY)
508 1-792-044-21 CORD (WITH CONNECTOR) (CD-OUT)
(for RELAY BOX ASSY)
F1 1-532-798-11 FUSE (BLADE TYPE) (AUTO FUSE) (1A/32V)
F2 1-532-731-11 FUSE (BLADE TYPE) (AUTO FUSE) (3A/32V)
501 502
+PSW4 × 10
× 4
TAPPING SCREW
(DIA.5 × 20) × 4
BRACKET
× 2
503 504
TAPE (COMMANDER)
× 1
MAGIC TAPE
× 1
505
F1
F2
POWER CORD
× 1
506
RELAY BOX ASSY
× 1
507
ANT-OUT CORD
× 1
508
CD-OUT CORD
× 1
