10
CDX-GT06/CXS-GT06HP

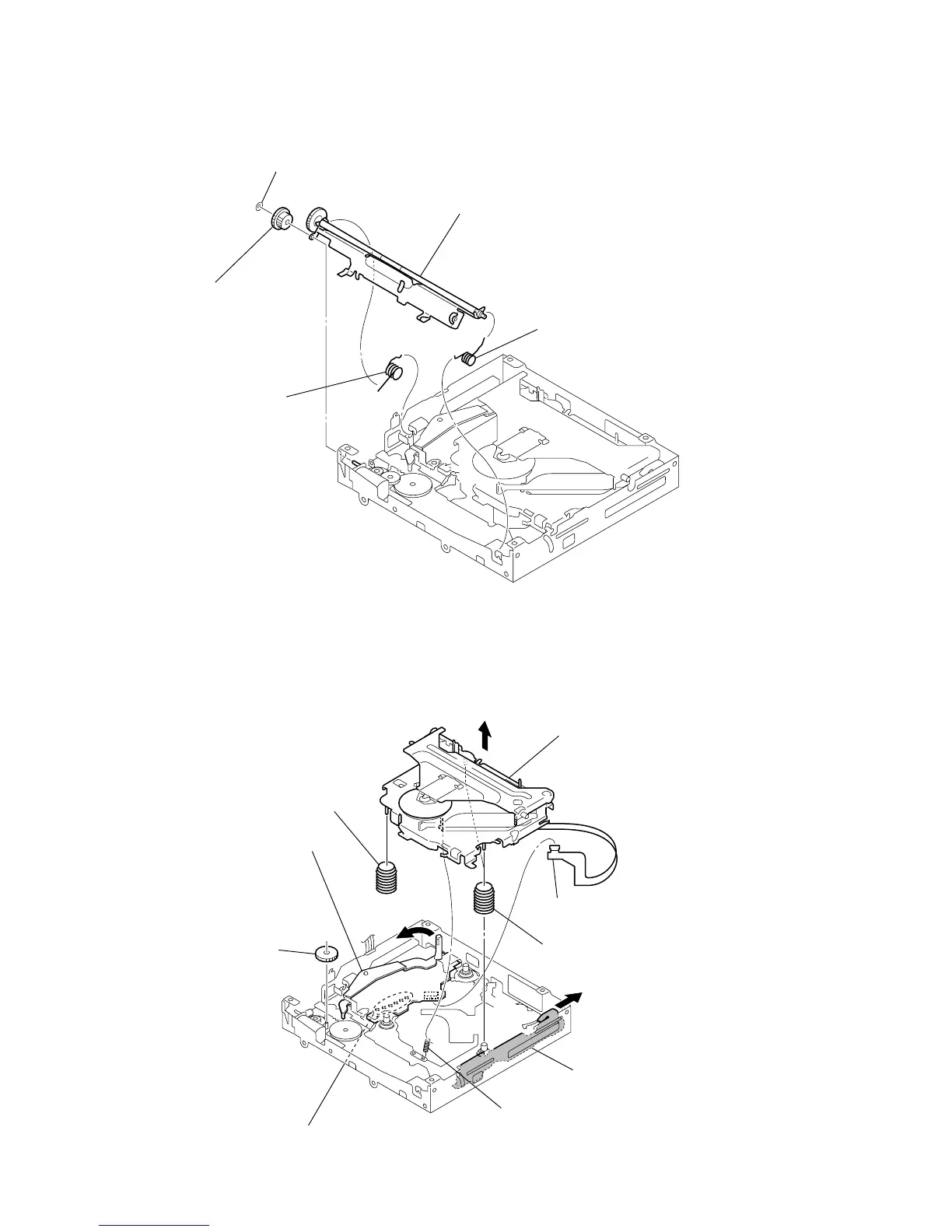

2-6.
CHASSIS (OP) ASSY
2-5.
ROLLER ARM ASSY
3
washer (1.1-2.5)
4
gear (RA1)
5
roller arm assy
1
spring (RAL)
2
spring (RAR)
0
chassis (OP) assy
8
two compression springs
(damper)
4
gear (LE1)
lev
er (D)
slider (R)
5
6
7
3
tension spring (KF60)
2
Remove the six solders.
1
optical pick-up (16 core
)
(CN2)
9
compression spring (damper)
9
11
