11
CDX-GT06/CXS-GT06HP

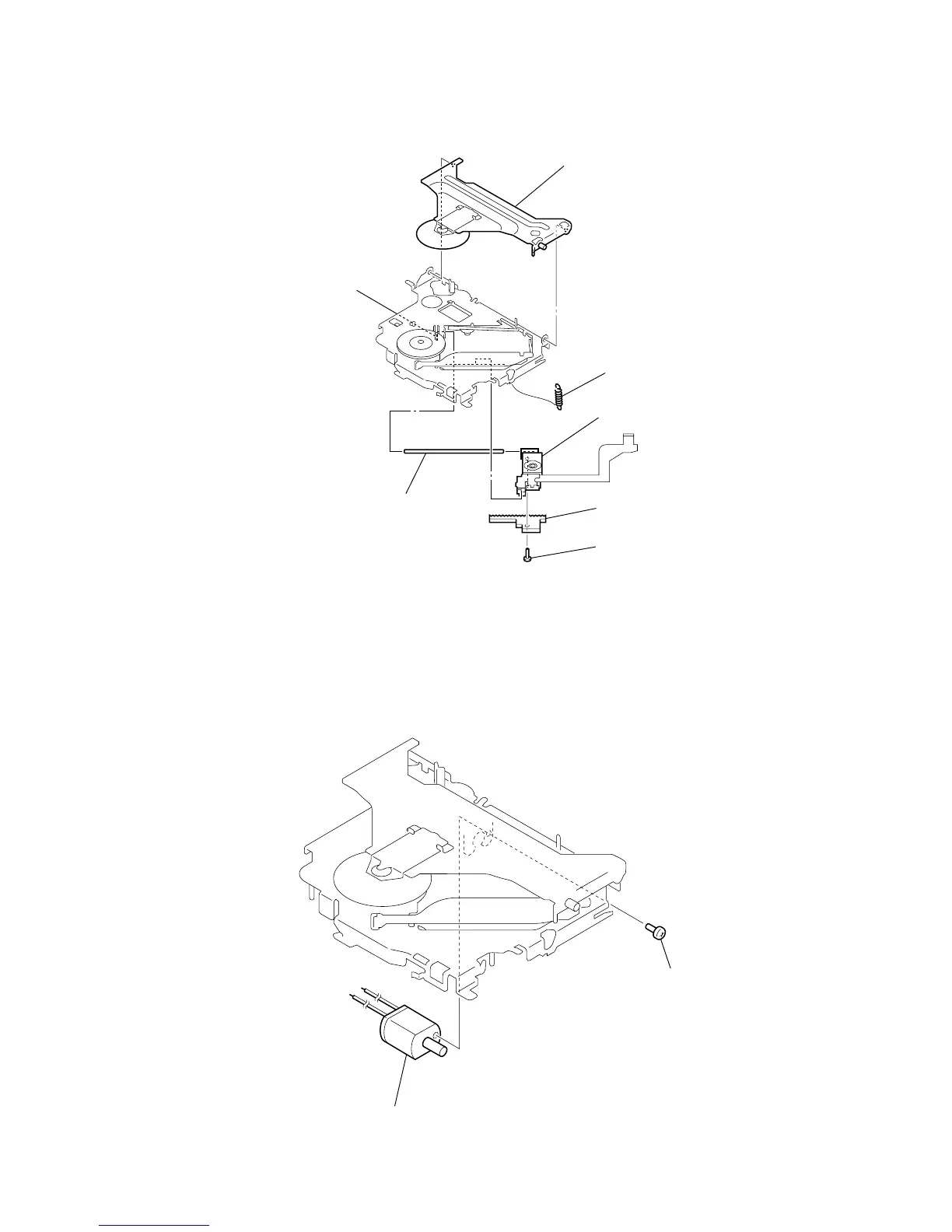

2-8. SL MOTOR ASSY (M902)
2-7. OPTICAL PICK-UP
1
tension spring (CHKG)
2
chucking arm sub assy
3
screw
(+B 1.4
×
5)
4
rack (SL)
5
claw
6
main shaft
7
optical pick-up
1
screw
(+P 1.4
×
1.8)
2
SL motor assy (M902)
