CDX-GT35U/GT39U/GT39UE
8

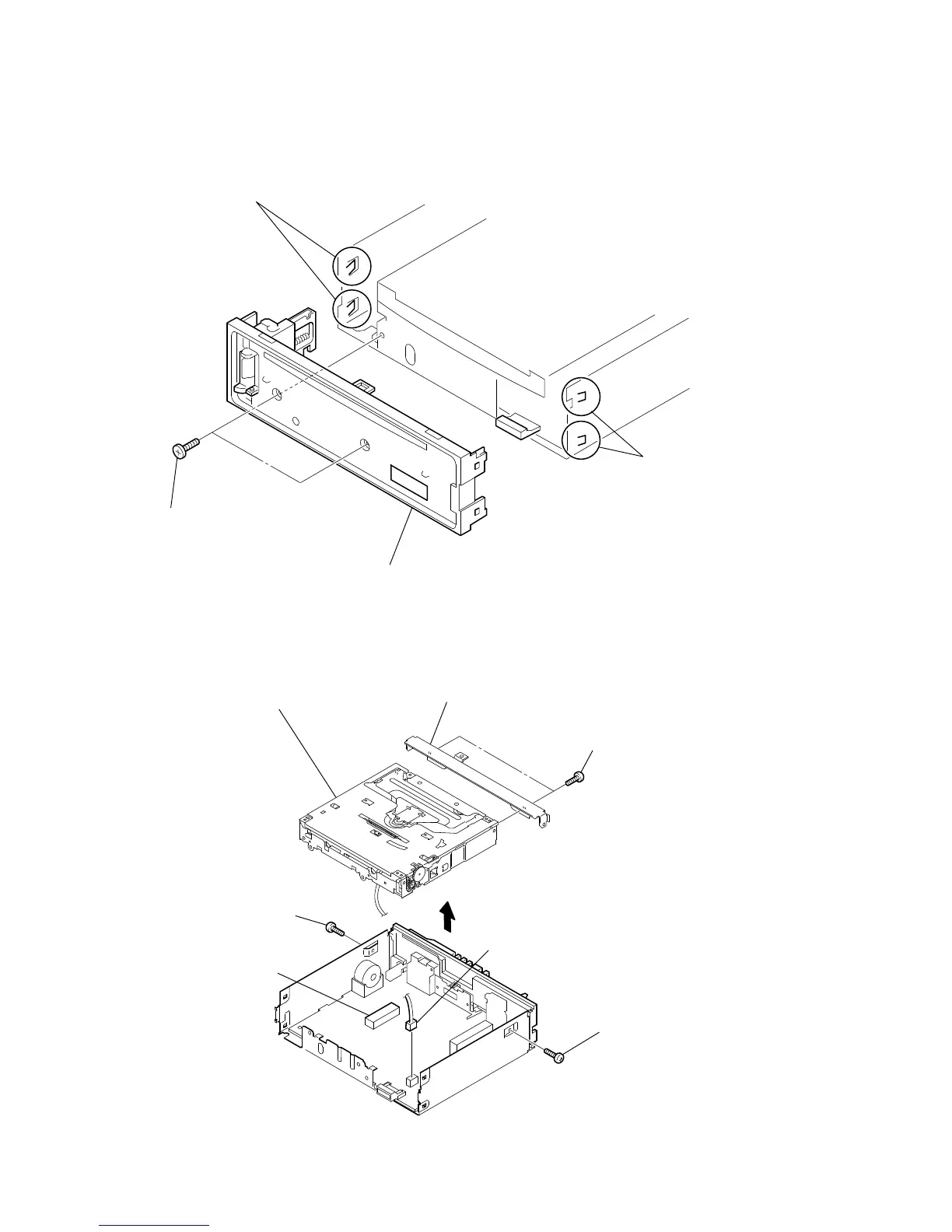

Note: Follow the disassembly procedure in the numerical order shown below.
3-1. SUB PANEL ASSY
3-2. CD MECHANISM BLOCK
two claws
two claws
sub panel assy
two
screws
(+PTT 2.6
×
6)
4 CN701
5 CN501 (3P)
3
1
screw
(+PTT 2.6
u
6)
2
screw
(+PTT 2.6
u
6)
6 two
screws
(+PTT 2.6
u
4)
7 bracket (CD)
8 CD mechanism block
