Sony CDX-GT71W Service Manual

17
CDX-GT71W/GT710/GT760

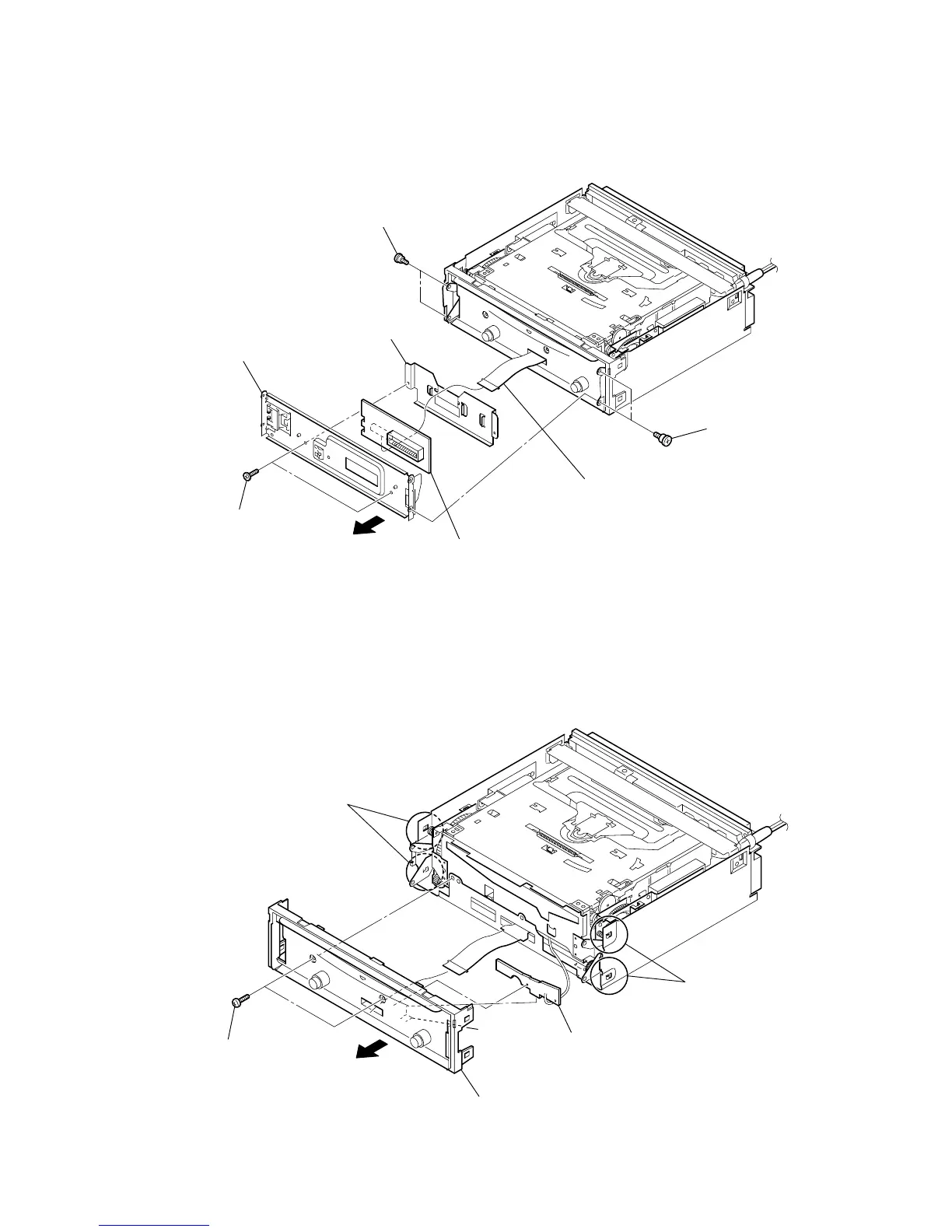

3-2. SUB PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
3-1. BASE PANEL ASSY
8 base panel assy
5 bracket (PWB)
7 BASE PANEL board
2 two screws
(panel F)
1 two screw
s
(panel F)
3
4 two screws (T)
6 FLEXIBLE board (36 core)
(CN905)
(Take care not to pull the
flexible board excessively)
7 sub panel assy
5 claw
6 SUB PANEL board
2 two claws
3 two claws
4
1 two screws
(+PTT 2.6
× 6)
