49
CDX-GT71W/GT710/GT760
151 A-1177-168-A MECHANICAL BLOCK ASSY
152 A-1177-169-A DAXEV//Q
0 153 X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
154 2-626-869-01 SCREW (M2X3), SERRATION
155 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN
156 3-352-758-31 SCREW (M1.7X2.5), TOOTHED LOCK
157 A-1177-362-A SERVO BOARD, COMPLETE
#7 7-627-000-08 SCREW, PRECISION +P 1.7X2.2 TYPE3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

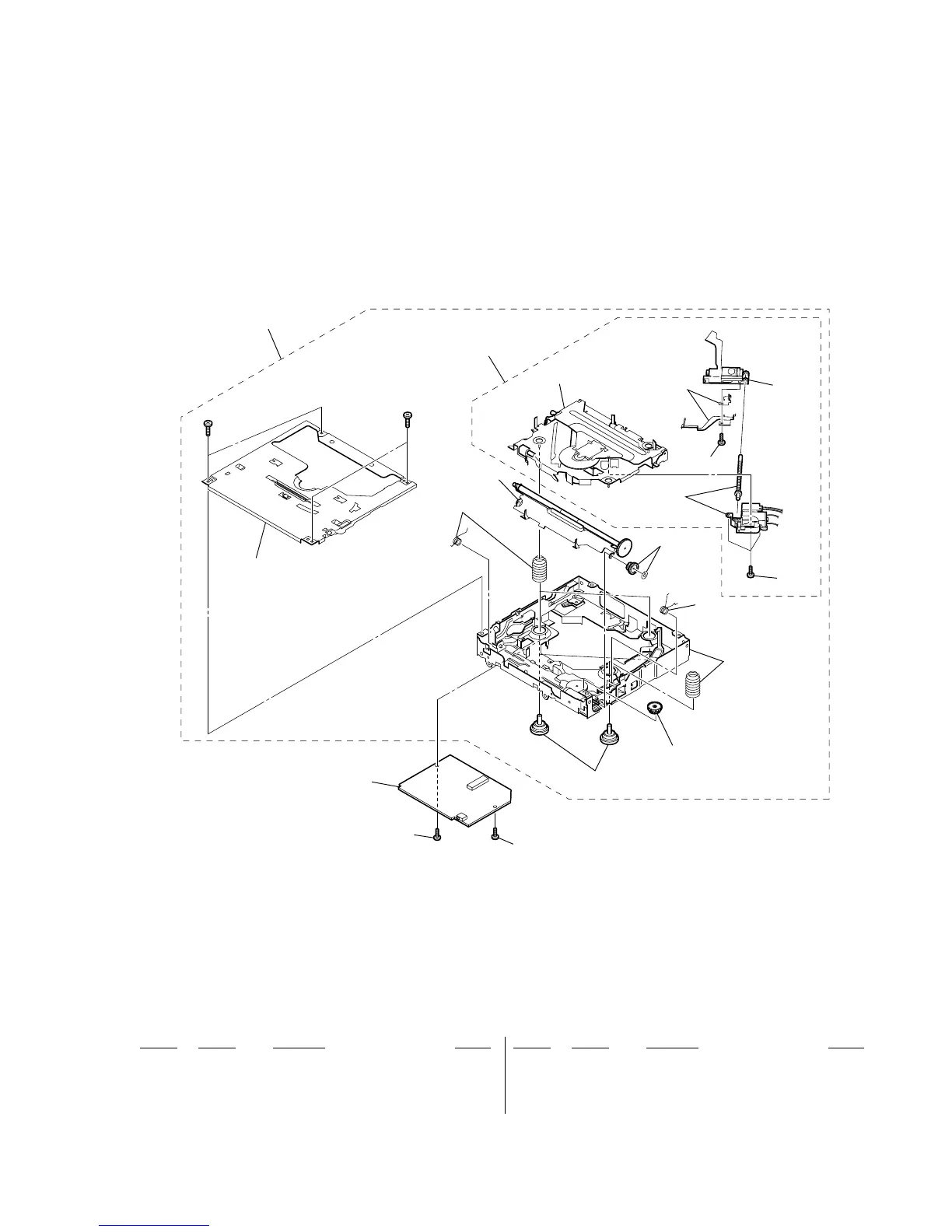

6-4. CD MECHANISM SECTION
(MG-101FA-188//Q)
NOTE: Refer to SUPPLEMENT-1 for disassembly of OPTICAL PICK-UP.
not supplied
#7
#7
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
151
152
153
155
154
157
156
156
Ver. 1.2
