CDX-GT71W/GT710/GT760
3-3.

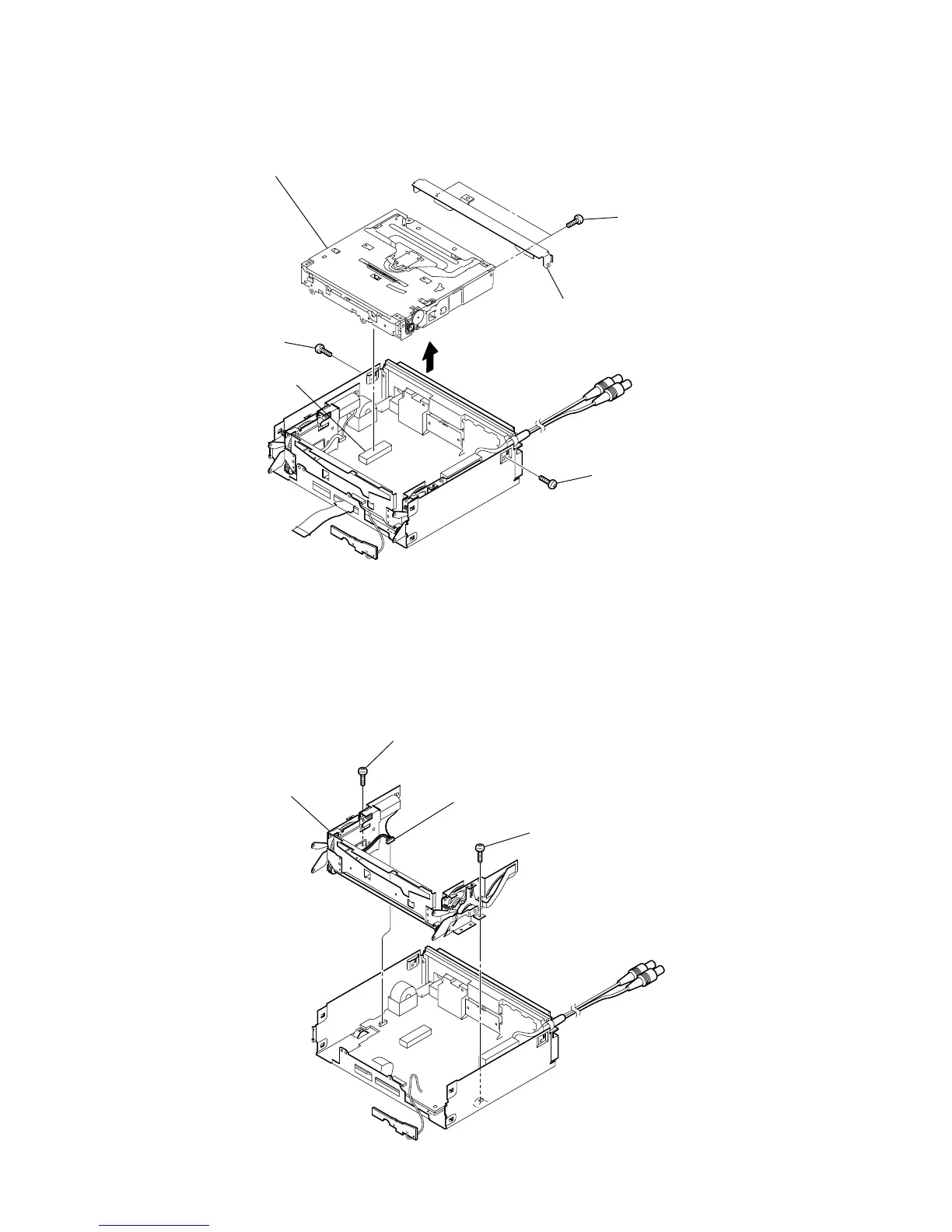

CD MECHANISM BLOCK
6
bracket (CD)
7
CD mechanism block
4
CNP301
3
1
screw
(+PTT 2.6
×
6)
2
screw
(+PTT 2.6
×
6)
5
two
screws
(+PTT 2.6
×
4)
3-4.
DRIVING SECTION (D
B
-F07)
3
screw
(+PTT 2.6
×
6)
4
driving section
(DB-F07)
1
CN702 (7P)
2
screw
(+PTT 2.6
×
6)
17
19
Table of Contents
Default Chapter
4
Table of Contents
4
1 Service Note
5
2 General
6
Location of Controls
6
Connections
8
Connection Example
10
3 Disassembly
16
Base Panel Assy
17
Sub Panel Assy
17
CD Mechanism Block
18
Driving Section (DB-F07)
18
Main Board
19
Servo Board
19
Chassis (T) Sub Assy
20
Roller Arm Assy
20
Chassis (OP) Assy
21
4 Diagnosis Function
22
5 Diagrams
25
Block Diagram -Main Section
25
Block Diagram -Display Section
26
Printed Wiring Boards -Main Section
28
Schematic Diagram -Main Section (1/4)
30
Schematic Diagram -Main Section (2/4)
31
Schematic Diagram -Main Section (3/4)
32
Schematic Diagram -Main Section (4/4)
33
Printed Wiring Boards -Display Section
34
Printed Wiring Board -Base Panel Section
35
Schematic Diagram -Display Section
36
IC Block Diagrams
37
6 Exploded Views
46
Main Section
46
Main Board Section
47
Front Panel Section
48
CD Mechanism Section (MG-101FA-188//Q)
49
7 Electrical Parts List
50
