27 27
CDX-GT71W/GT710/GT760
CDX-GT71W/GT710/GT760

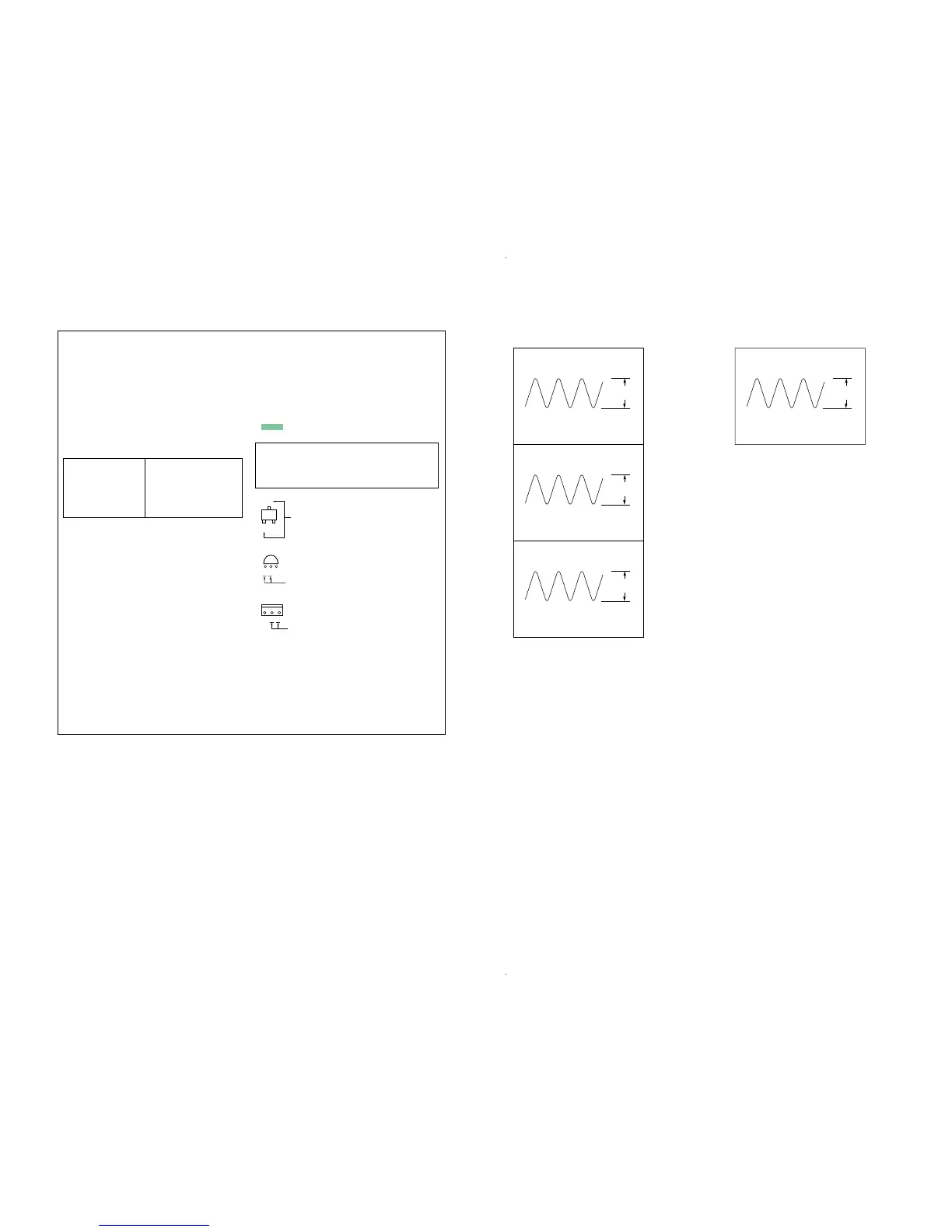

• WAVEFORMS
— MAIN Board —
• NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
For schematic diagrams.
Note:
All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
f : internal component.
C : panel designation.
For printed wiring boards.
Note:
X : parts extracted from the component side.
Y : parts extracted from the conductor side.
a
: Through hole.
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
A : B+ Line.
B : B– Line.
H : adjustment for repair.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
(): AM/MW/LW
<>: CD PLAY
: Impossible to measure
•Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal production
tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
Circled numbers refer to waveforms.
Signal path.
J : CD PLAY
F : FM
f : AM/MW/LW
L : BUS
g : AUX
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
Q
C
These are omitted
EB
E
These are omitted
CB
C
These are omitted
BE
0.8 Vp-p
8.664 MHz
3
IC551 9 (XTI)
0.6 Vp-p
32.768 kHz
1
IC303 8 (XCIN)
1.4 Vp-p
6 MHz
2
IC303 qd (XIN)
0.2 V/DIV, 20
µ
sec/DIV
0.2 V/DIV, 0.1
µ
sec/DIV
0.5 V/DIV, 0.1
µ
sec/DIV
Note:
The components identi-
fied by mark 0 or dotted
line with mark 0 are criti-
cal for safety.
Replace only with part
number specified.
Note:
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
Abbreviation
CND : Canadian model
CH : Chinese model
MX : Mexican model
Abbreviation
CND : Canadian model
CH : Chinese model
MX : Mexican model
— DISPLAY Board —
0.4 Vp-p
6.75 MHz
1
IC901 qd (XIN)
0.2 V/DIV, 0.1
µ
sec/DIV
