Sony CFD-S38L - Cabinet (Upper) Assy; Main Board

– 10 –
6 screw +BVTP 3x10
0 screws +BVTP 3x10
8 screw +BVTP 3x10
9 screws +BVTP 3x10
5 holder assy, cassette
7 lid (CD)
!¡ cabinet (upper) assy
!™ handle
4 CNP902
3 CNP901
1 CNP1
2 CNP2

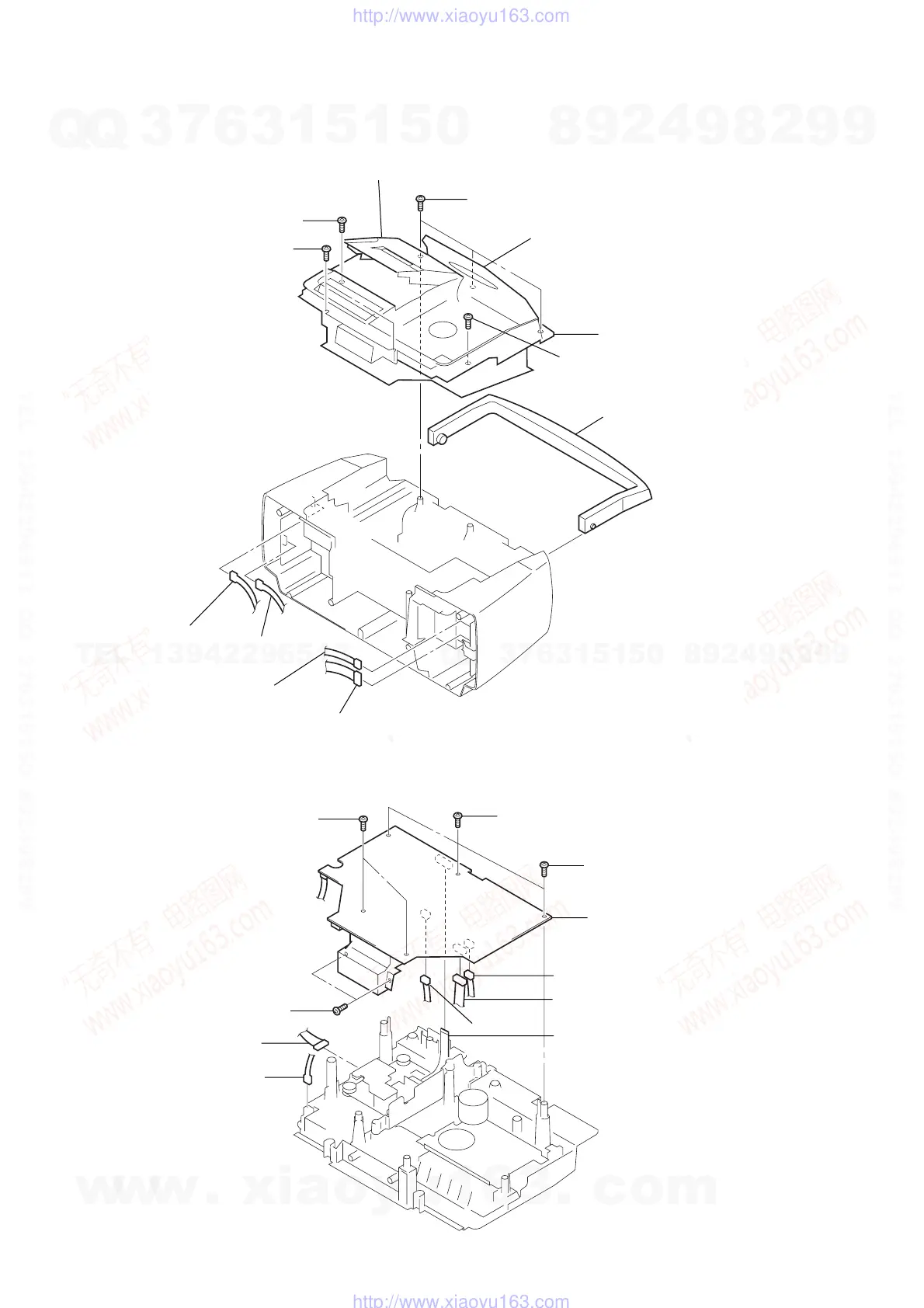

3-7. CABINET (UPPER) ASSY
3-8. MAIN BOARD
1 screws +BVTP 3x10
2 screws +BVTP 3x10
3 screws +BVTP 3x1
0
5 connector
7 connector
6 CNP701
8 CNP301
9 CNP304
!º CNP305
!¡ MAIN board
4 screw +BVTP 3x12
