– 41 –

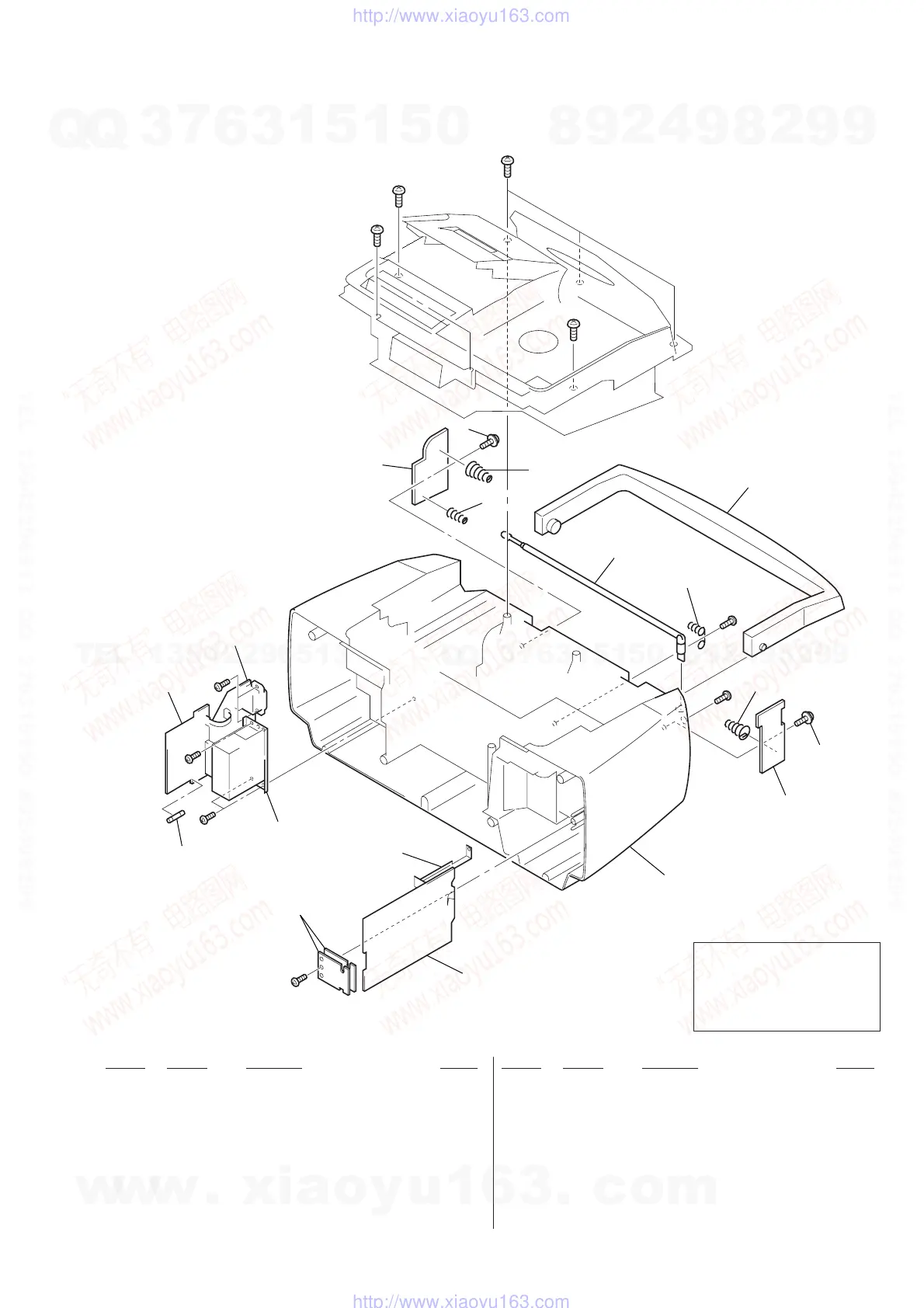

7-2. CABINET (REAR) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 A-3321-871-A SECONDARY BOARD, COMPLETE
* 52 1-673-207-11 PRIMARY BOARD
* 53 A-3321-874-A TUNER BOARD, COMPLETE
54 3-032-038-01 TERMINAL, ANTENNA
55 3-032-025-21 CABINET (REAR) (AEP,UK,IT)
55 3-032-025-81 CABINET (REAR) (CET)
* 56 1-673-209-11 BATTERY BOARD
57 3-028-154-01 TERMINAL (–), BATTERY
58 3-028-156-01 TERMINAL (S) (–), BATTERY
* 59 1-673-210-11 BATTERY COMMON BOARD
60 3-032-029-01 HANDLE
61 3-028-157-01 TERMINAL (S) (+.–), BATTERY
62 4-960-167-01 SCREW (3X8) (DIA.10), +WH
63 1-673-213-11 TUNER RETAINER BOARD
ANT1 1-501-891-11 ANTENNA, TELESCOPIC (UK,IT)
ANT1 1-501-891-41 ANTENNA, TELESCOPIC (AEP,CET)
! F902 1-532-465-51 FUSE, TIME LAG (T3.15A/250V)
! T901 1-433-639-11 TRANSFORMER, POWER
#1
#1
#1
#1
#1
#1
#1
#1
T901
ANT1
#1
#5
F902
51
52
53
54
55
56
57
58
59
57
61
60
62
62
63
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
