– 45 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

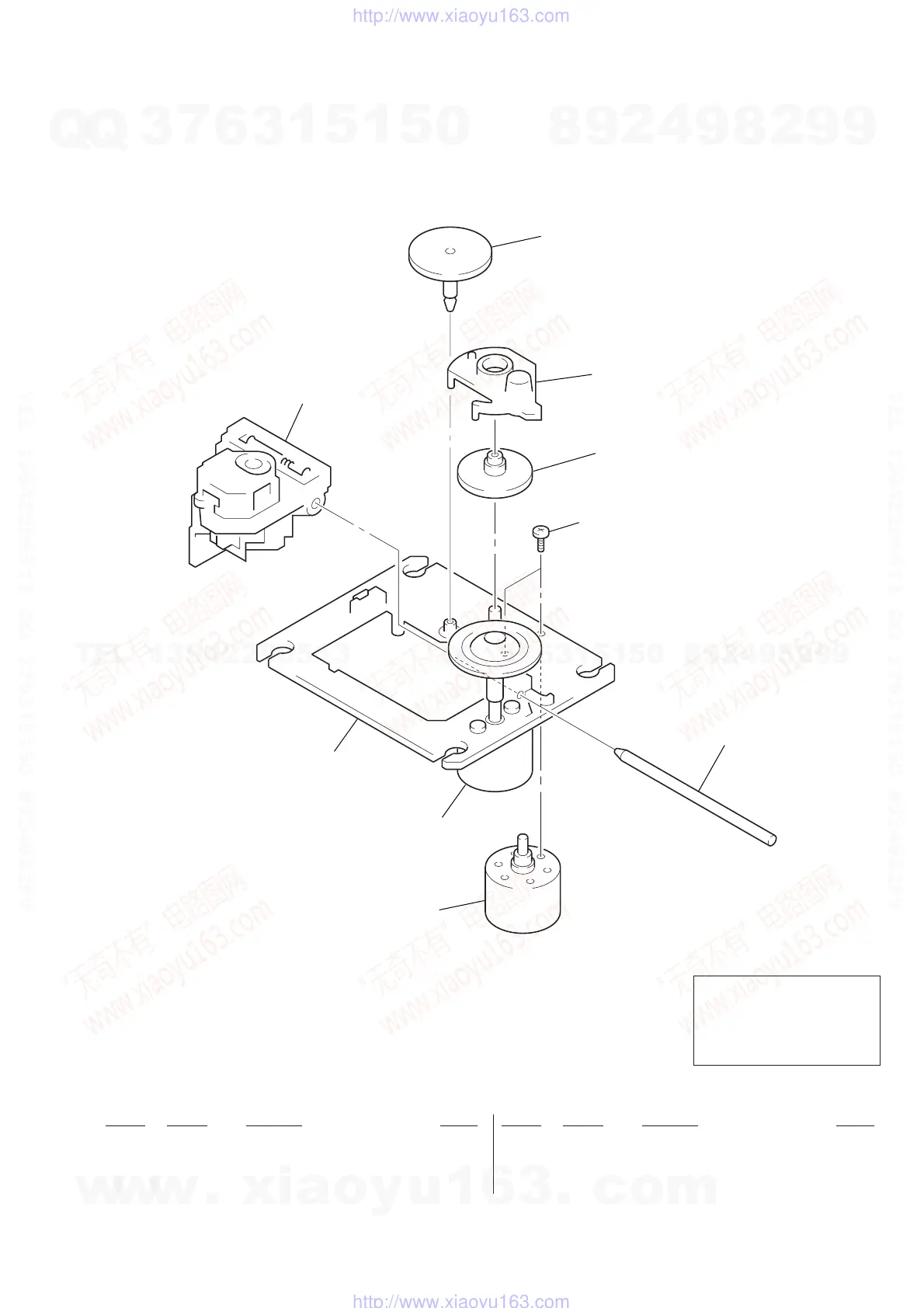

7-6. OPTICAL PICK-UP SECTION
(KSM-213CDM)
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
! 251 8-848-483-05 PICK-UP, OPTICAL KSS-213C/C1N
252 2-626-907-01 GEAR (A)
253 2-627-003-02 GEAR (B) (RP)
254 3-713-786-51 SCREW +P 2X3
255 2-626-908-51 SHAFT, SLED
256 X-2626-202-2 CHASSIS ASSY (MB), MOTOR (SPINDLE)
(INCLUDING M701)
M702 X-2625-769-1 GEAR ASSY (MB), MOTOR (SLED)
not supplied
M702
M701
255
251
253
254
256
252
