Sony CFD-S47 - Disassembly: Front Cabinet and Power Board; Front Cabinet Assembly Disassembly; Power Board Removal

– 6 –

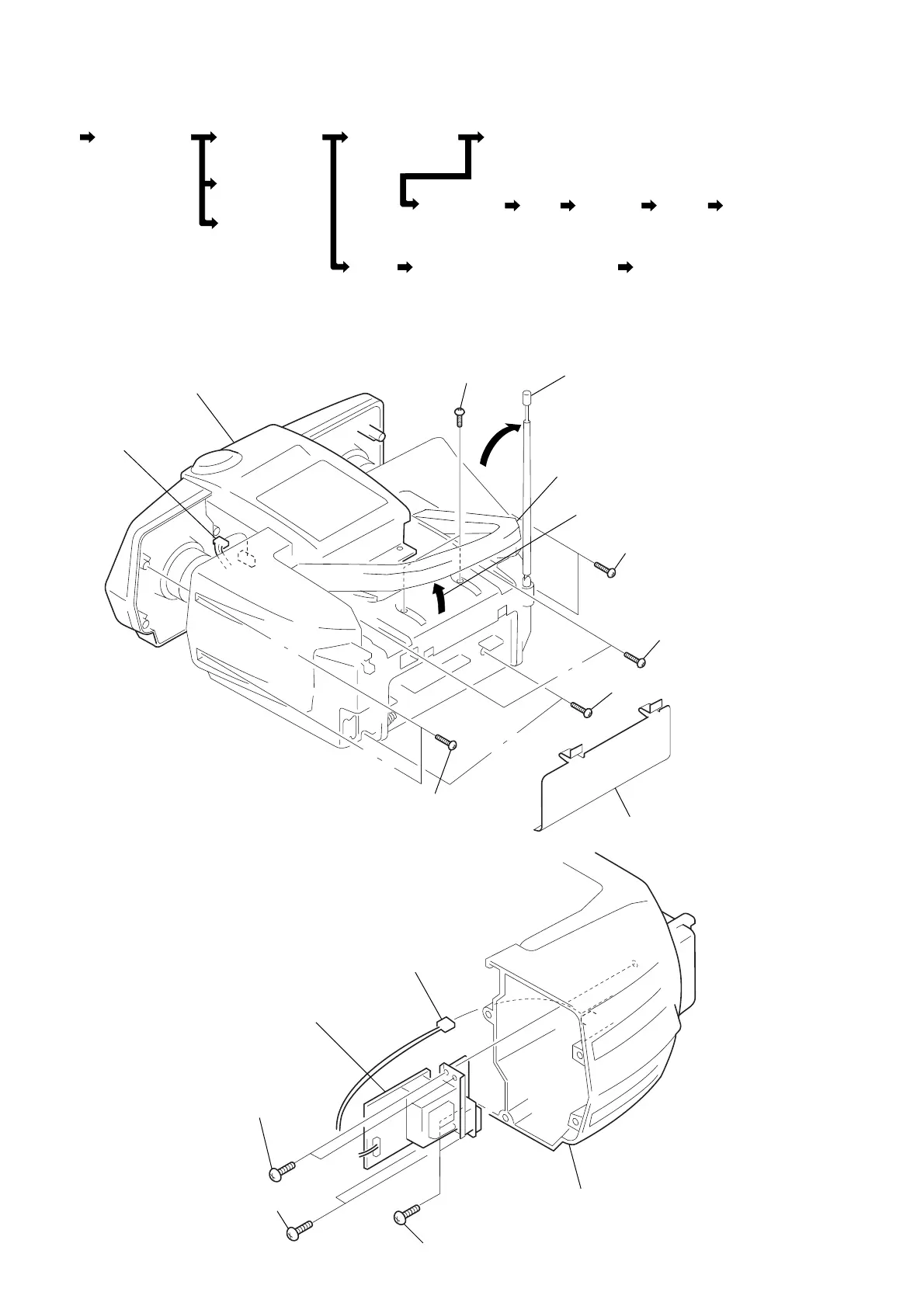

• The equipment can be removed using the following procedure.
2-2. POWER BOARD
SECTION 2
DISASSEMBLY
1 antenna, telescopic
handle
5 P 3x14
6 P 3x14
4 lid, battery case
7 P 3x14
8 P 3x14
3 P 3x14
9 CNP302
0 cabinet (front) assy
2 Pull the handle up
approx. 30˚.
1 CNP901
2 BVTP 3x10
cabinet (rear) assy
3 BVTP 3x10
4 BVTP 3x10
5 POWER board
Note : Follow the disassembly procedure in the numerical order given.
2-1. CABINET (FRONT) ASSY
Set Cabinet (front)
assy
Cabinet (upper)
assy
CD mechanism
block
SW (L) board,
SW (R) board
Plate assy,
chuck
Tray Loading
board
Tuner board
Power board
CD
board
Main
board
CD
mechanism
block
SW (TOP) board,
Record/Playback switch board,
Headphone board
Cassette mechanism
block
