– 9 –

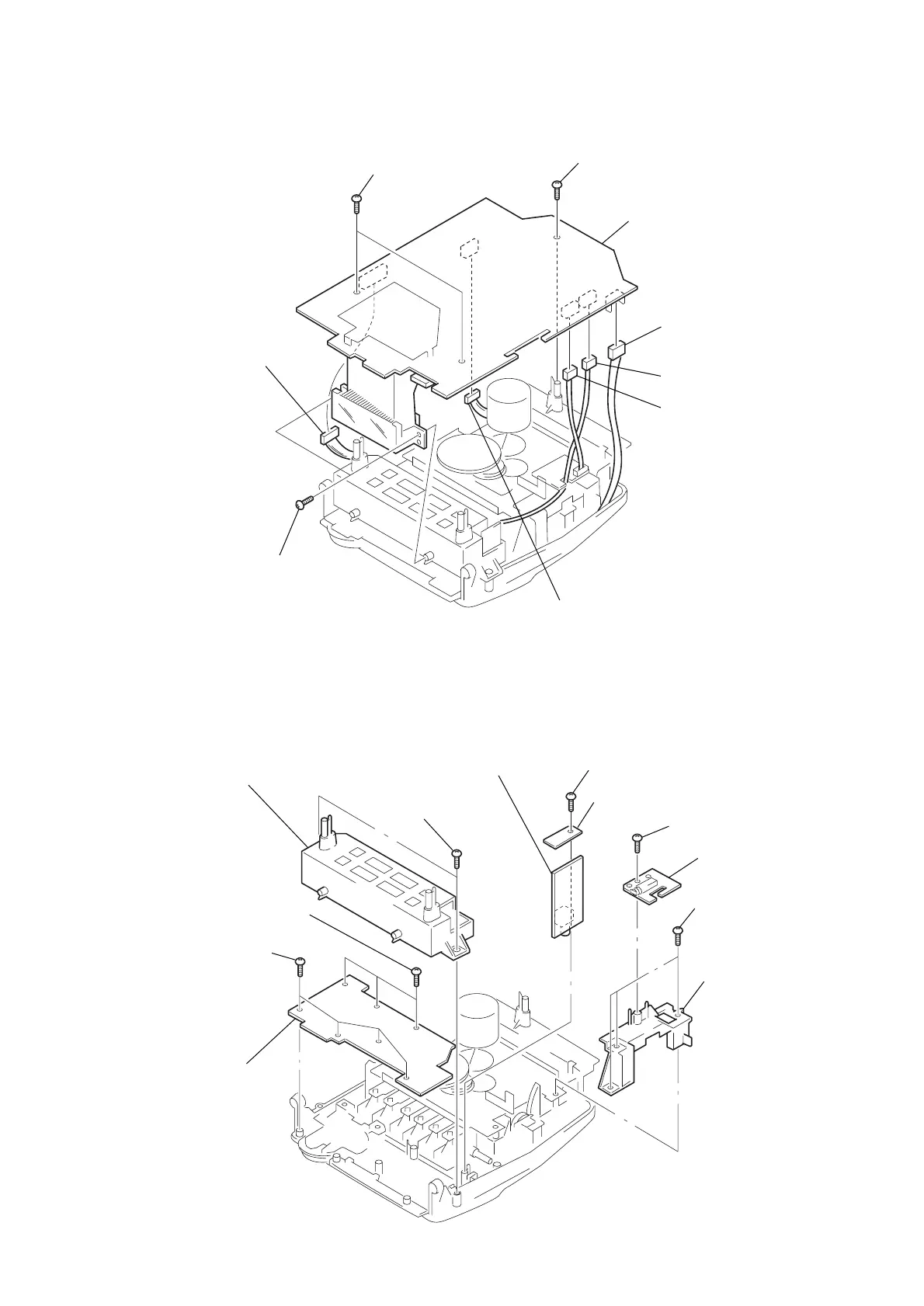

2-7. MAIN BOARD
2-8. SW (TOP) BOARD, RECORD/PLAYBACK SWITCH BOARD, HEADPHONE BOARD
1 CNP30
6
2 CNP301
3 CNP30
5
5 CNP303
4 CNP503
6 BVTP 3x10
7 BVTP 3x10
8 BVTP 3x10
9 MAIN board
1 BVTP 3x10
3 BVTP 2.6x8
4 BVTP 2.6x8
6 BVTP 3x10
8 BVTP 3x10
9 chassis (REC)
0 BVTP 2.6x8
!¡ H/P SUB board
!™ HEADPHONE board
2 chassis (PWB)
5 SW (TOP) board
7 RECORD/PLAYBACK
SWITCH board
