Sony CFS-E2

CFS-E2
5-3. SCHEMATIC DIAGRAM — TUNER SECTION —
— 14 — — 15 — — 16 —

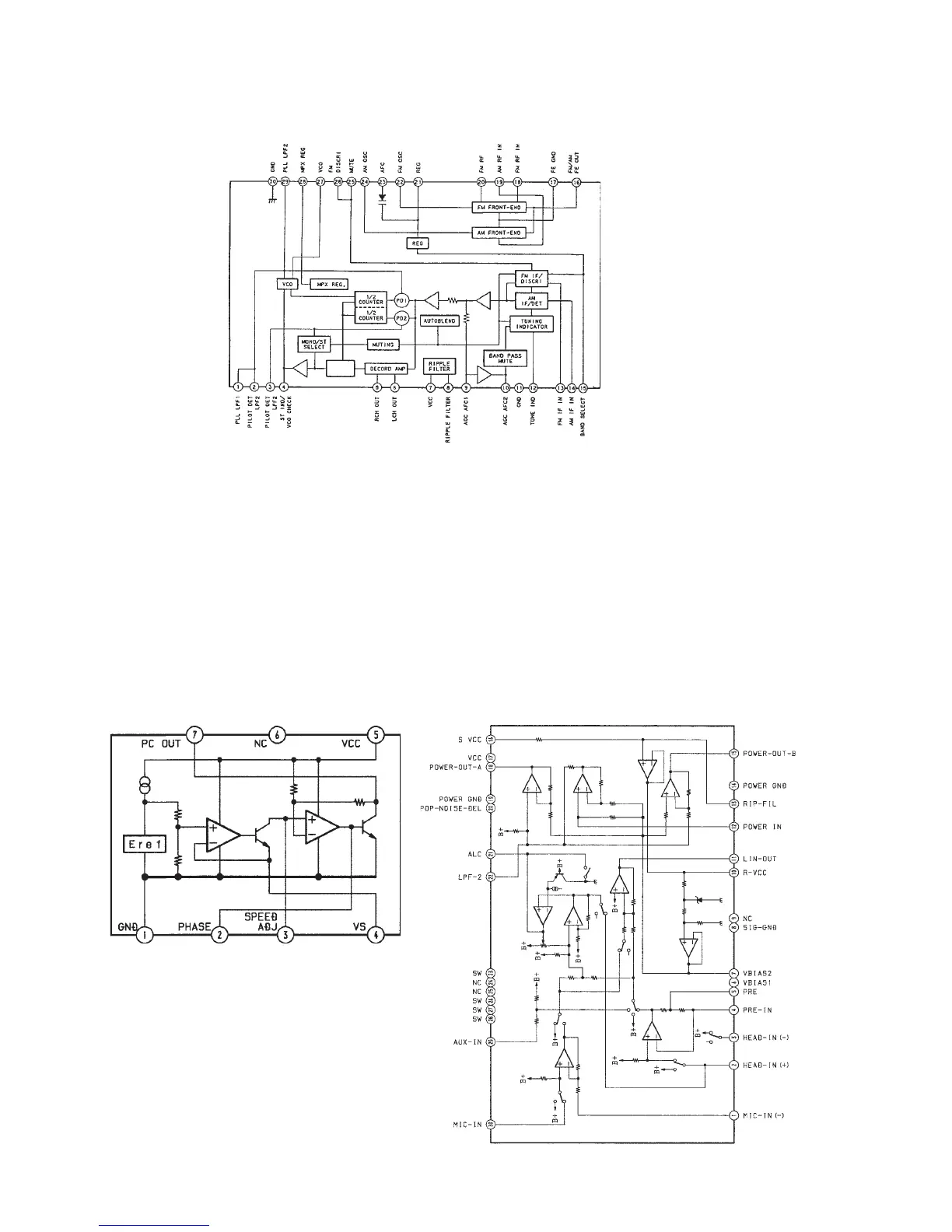

5-4. IC BLOCK DIAGRAMS
IC1 CXA1538N
IC601 MM1038BFF IC101, IC201 MM1315BD
US,CND.
TW
CND : Canadian
TW : Taiwan
CT1
CT4
CT3CT2
AM FM TAPE OFF
MONO STEREO
ANT2, CT1
AM TRACKING
ADJUSTMENT
L1, CT2
FM TRACKING
ADJUSTMENT
L2, CT3
FM FREQUENCY
COVERAGE
ADJUSTMENT
T1, CT4
AM FREQUENCY
COVERAGE
ADJUSTMENT
Ver 1.2 2001. 04
