Sony CFS-E2 Service Manual

— 2 —
TABLE OF CONTENTS
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH
MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE ! SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.

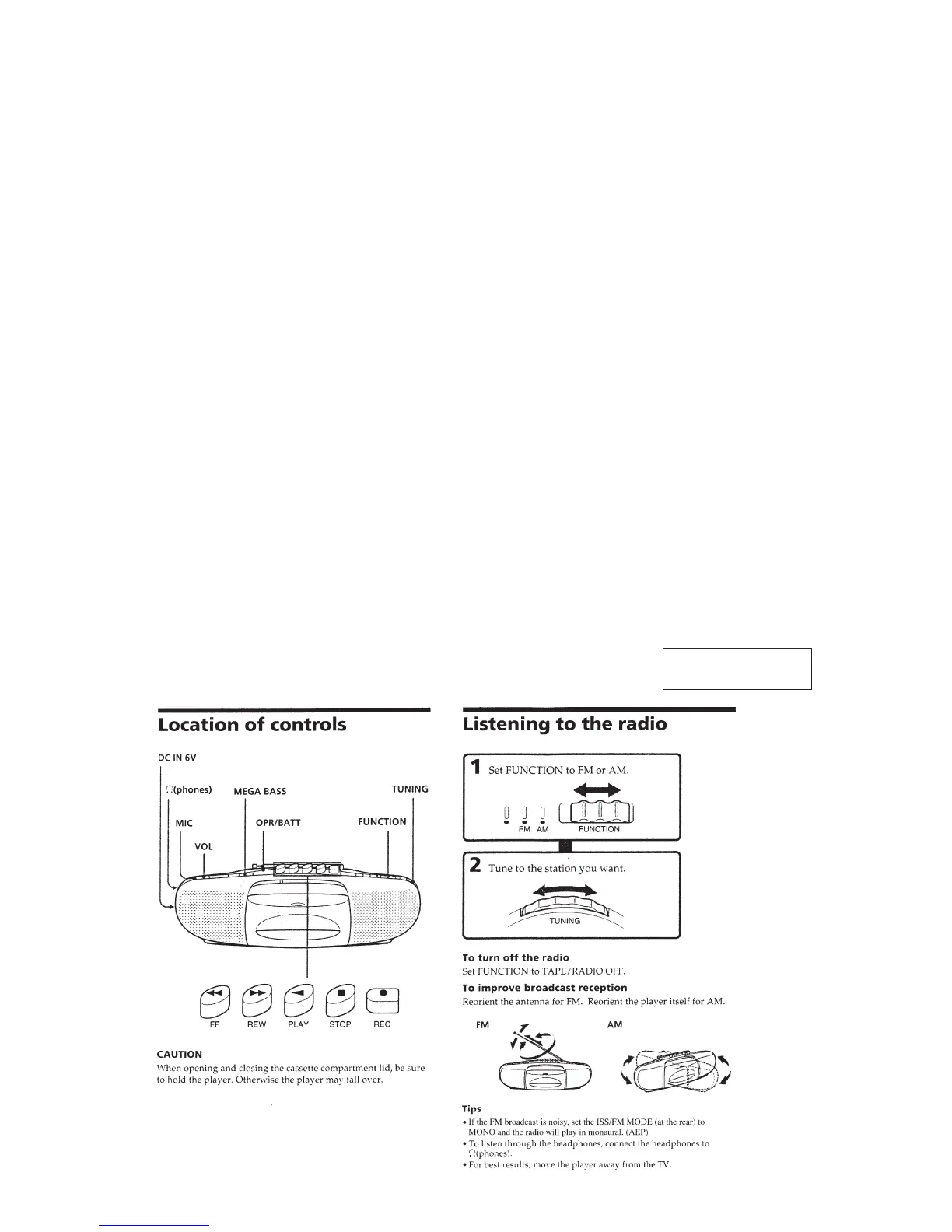

This section is extracted
from instruction manual.
SECTION 1
GENERAL
1. GENERAL ·············································································· 2
2. DISASSEMBLY
2-1. REAR CABINET SECTION ············································ 4
2-2. MAIN SECTION ······························································ 4
3. MECHANICAL ADJUSTMENTS ········································ 5
4. ELECTRICAL ADJUSTMENTS
4-1. TAPE RECODER SECTION ············································ 5
4-2. TUNER SECTION ···························································· 6
5. DIAGRAMS
5-1. PRINTED WIRING BOARD ··········································· 8
5-2. SCHEMATIC DIAGRAM — AUDIO SECTION — ····· 11
5-3. SCHEMATIC DIAGRAM — TUNER SECTION — ···· 14
5-4. IC BLOCK DIAGRAMS ················································ 16
6. EXPLODED VIEWS
6-1. FRONT CABINET SECTION ········································ 17
6-2. REAR CABINET SECTION ·········································· 18
6-3. MECHANISM DECK-1 ················································· 19
6-4. MECHANISM DECK-2 ················································· 20
7. ELECTRICAL PARTS LIST··············································· 21

Sony CFS-E2 Specifications

General

Brand	Sony
Model	CFS-E2
Category	Cassette Player
Language	English
