Sony CFS-E2 Service Manual

CFS-E2
— 8 — — 9 — — 10 —
SECTION 5
DIAGRAM

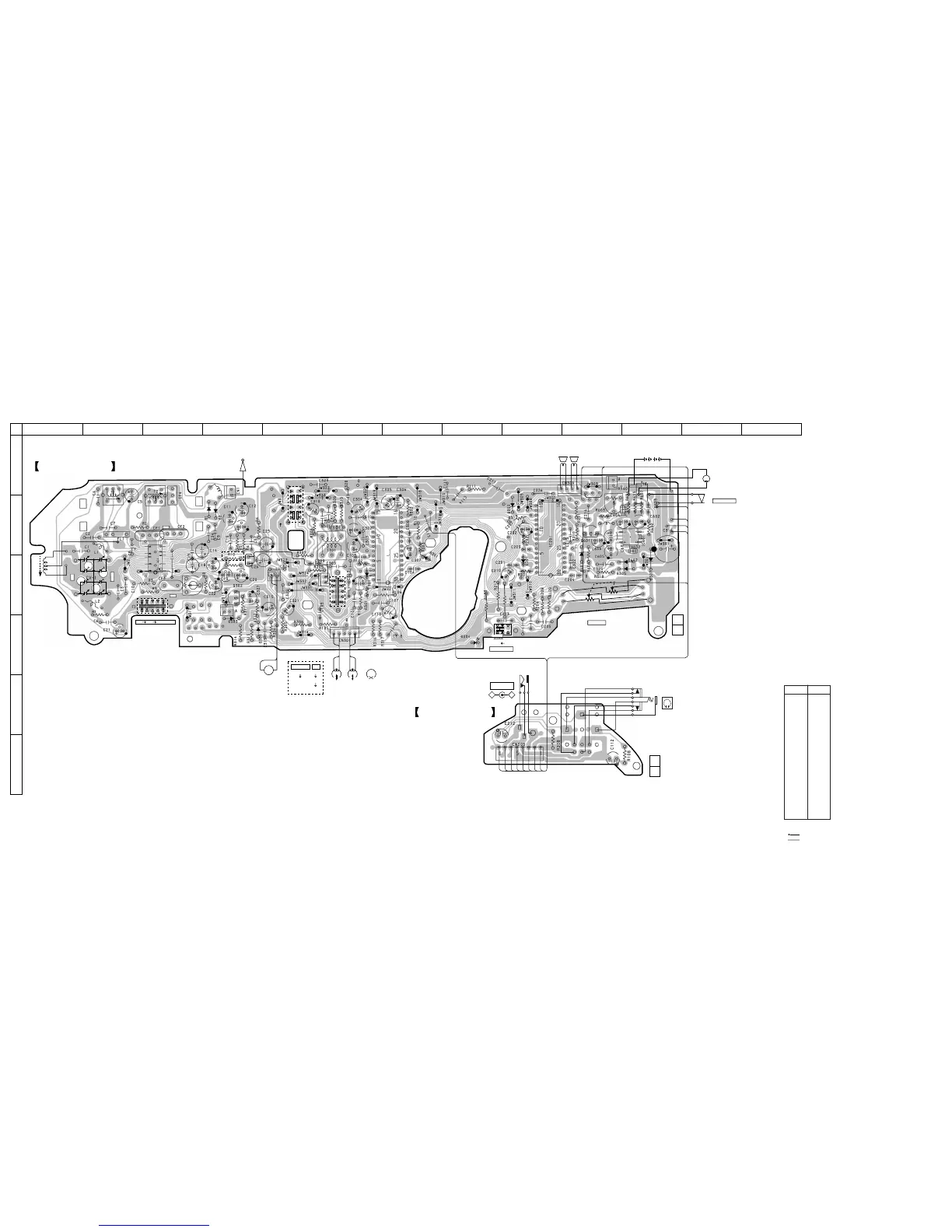

5-1. PRIINTED WIRNG BOARD
12
A
B
C
D
E
F
345678910111213
FM
TELESCOPIC
ANTENNA
ANT1
DRY BATTERY
SIZE "AA"
(IEC DESIGNATION R6)
4PCS,3V
RED
SP901 SP902
S902
MD POWER
M901
REEL CAPSTAN
MOTOR
BLK
C901
RED
BLU
YEL
RED
WHT
M
C113
C105
S102
S302
S301
C102
IC101
C312
S101
L601
RV301
RV301
VOLUME
LR
HRP901
HE901
OFFON
MEGA BASS
MIC
MIC901
-1
CT1
ANT2
CT2
CT4 CT3
-2
-4 -3
J301
J302
1-666-350-
1-666-349-
11
(11)
11
(11)
DC IN 6V
– +
L3
C27
C28
AEP
REC
PB
AM FM TAPE OFF
S301
MONO/ST ISS
MONO
STEREO
3
2
1
MAIN BOARD
JACK BOARD
Note:
•
: parts extracted from the component side.
• : Parts on the side wich is seen.
Ref. No. Location
D1 B-4
D2 B-4
D101 C-6
D201 C-9
D301 C-7
D302 B-9
D303 D-4
D304 D-8
D305 C-11
D306 D-5
D307 C-11
D601 C-10
D602 C-11
IC1 C-3
IC101 B-7
IC201 B-9
IC601 B-11
Q301 B-6
Q302 C-4
Q601 B-10
• Semiconductor
Location
Ver 1.2 2001. 04
