List of Button Locations and Reference Pages
Main unit
P – Z
PGM CLEAR 8 (9)
PHONES jack ql
PLAY MODE wa (8, 9)
PRESET +/– qd (10, 11)
Remote sensor wd
TAPE 2 (13)
TUNER 6 (10, 11, 14)
TUNER MEM q; (10)
TUNING +/– qs (10, 11)
VOLUME control qh
How to use this page
Use this page to find the location of buttons and other
parts of the system that are mentioned in the text.

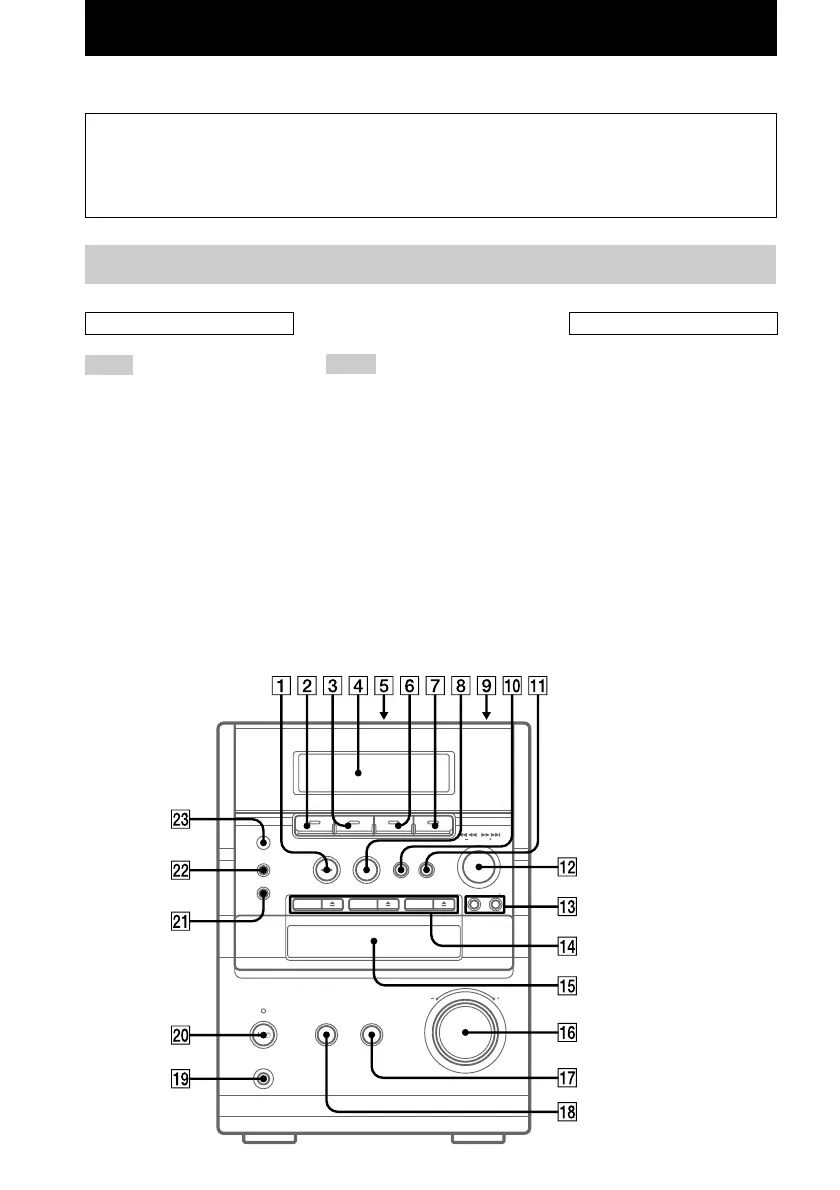

Illustration number
r
PLAY MODE wz (8, 9)
R R
Name of button/part Reference page
ALPHABETICAL ORDER
A – M
Cassette compartment 5 (13)
CD 3 (8, 9)
DISC 1/DISC 2/DISC 3 qf (8, 9,
14)
Disc tray qg (8)
DISC SKIP 3 (8)
DISPLAY ws (12, 17)
Display Window 4 (8, 9, 10)
ENTER 1 (7, 9, 10, 15, 16, 17)
FM MODE/DIR wa (11, 13, 14,
15, 20)
MD 7 (14, 18)
MEGA BASS qk (16)
MUSIC MENU qj (16)
BUTTON DESCRIPTIONS
@/1 (power) w; (7, 15, 17)
CD
. m (go back) qs (8, 9)
M > (go forward) qs (8, 9)
nN (play) 1 (8, 9)
X (pause) q; (8)
Z (eject) qf (8)
x (stop) 8 (8)
TAPE
M > (fast forward) qs (13)
X (pause) 0 (13)
nN (play) 1 (13, 14)
z REC PAUSE/START qa (14,
15)
. m (rewind) qs (13)
Z PUSH OPEN/CLOSE 9 (13)
x (stop) 8 (13, 14)

Sony CMT-EP707 Operating Instructions (CMTEP707) Specifications

Amplifier Section

front speakers power	15W x 2
input sensitivity/impedance	450mV, 47 kohm
output impedance	8 ohms or more

CD Player Section

laser wavelength	780nm
frequency response	2Hz-20kHz (±0.5 dB)
optical digital output wavelength	660nm

Tuner Section

fm tuning range	87.5-108.0MHz
am tuning range	530-1, 710kHz
fm antenna terminals	75 ohms Unbalanced

Front Speaker

speaker system	2 Way Bass Reflex Type
speaker units	4" Woofer, 1" Tweeter
nominal impedance	4 ohms

Weights & Measures

main unit dimensions	7" x 9.6" x 13.1"
main unit weight	11 lbs
front speaker dimensions	6.6" x 9.6" x 7.2"
front speaker weight	4.8 lbs

Power

power requirements	AC120V, 60Hz
power consumption	38W
standby power consumption	0.5W
