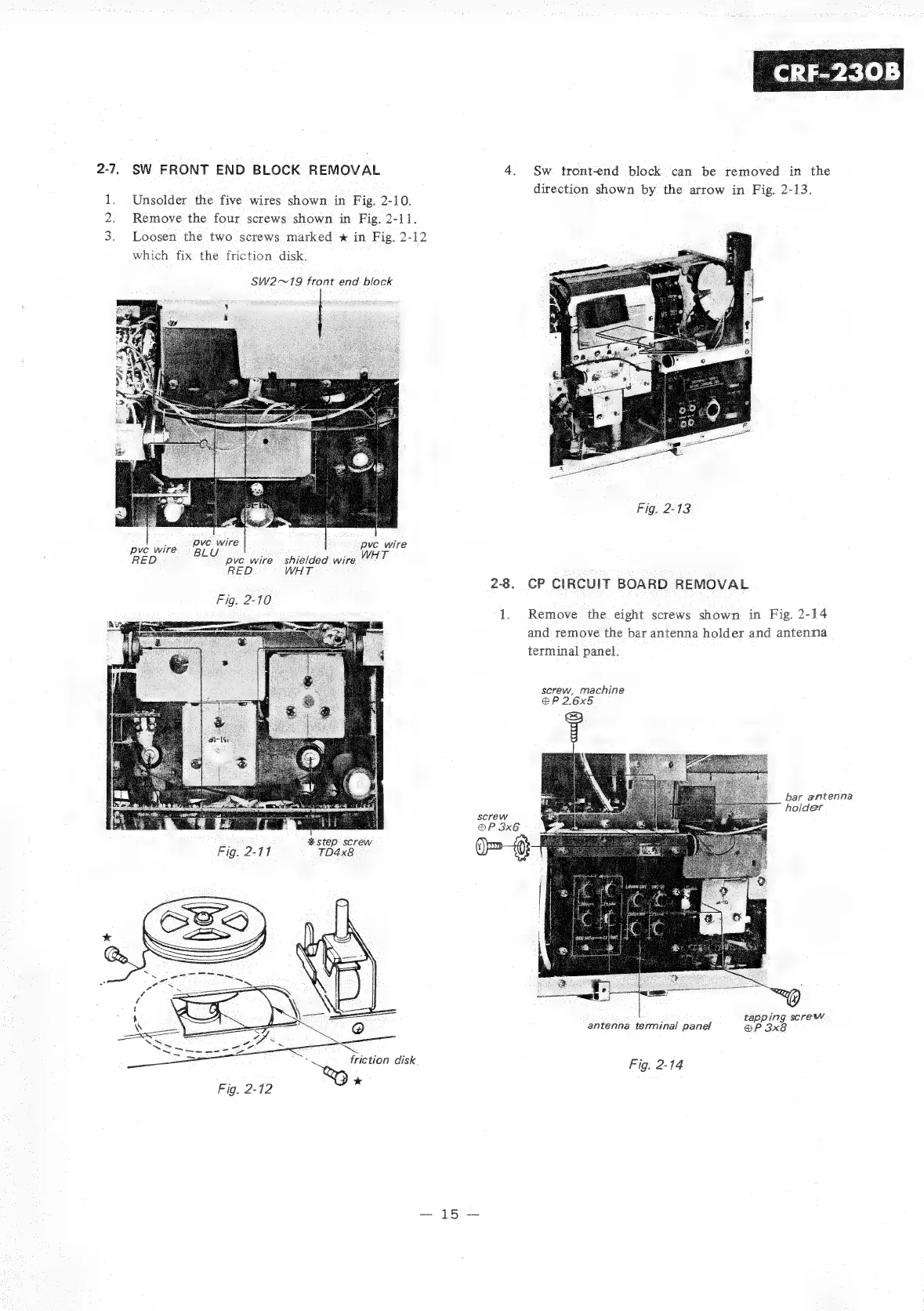

2-7, SW FRONT END BLOCK REMOVAL 4.
1. Unsolder the five wires shown in Fig. 2-10.
2, Remove the four screws shown in Fig. 2-11.
3. Loosen the two screws marked »* in Fig. 2-12
which fix the friction disk.
SW2~19 front end block
‘ pvc wire pve wire
pve wire
RED BLU pve wire shielded wire WHT
RED WHT
2-8.
Fig. 2-10
1:
& step screw
TD4x8
*
Sw tront-end block can be removed in the
direction shown by the arrow in Fig. 2-13.
CP CIRCUIT BOARD REMOVAL
Remove the eight screws shown in Fig. 2-14
and remove the bar antenna holder and antenna
terminal panel.
screw, machine
@P 2.6x5
bar antenna
holder
. tapping screw
antenna terminal panel @P 3x8
Fig. 2-14
