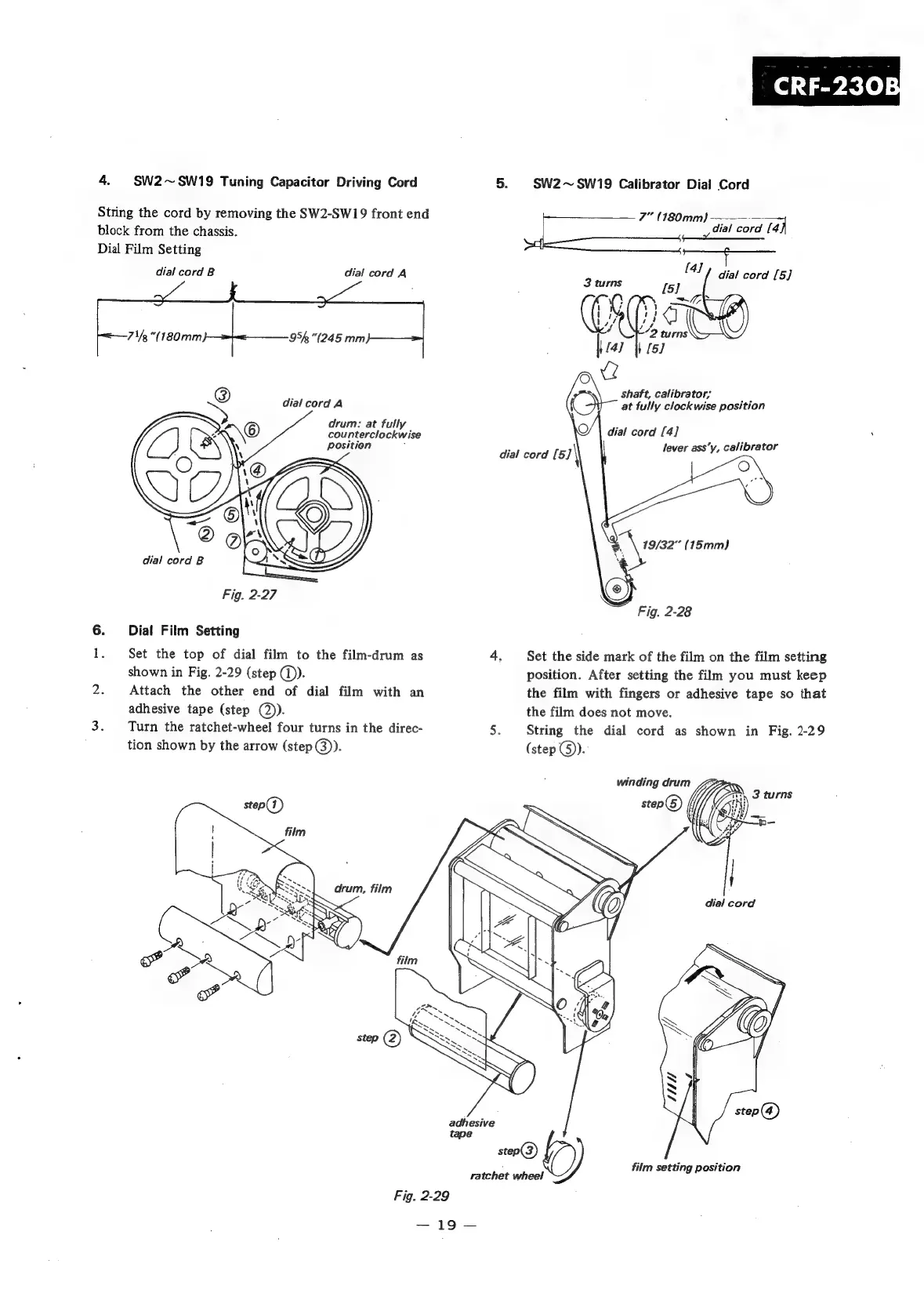

4. SW2~SW19 Tuning Capacitor Driving Cord
String the cord by removing the SW2-SW19 front end
block from the chassis.
Dial Film Setting
dial cord B
dial cord A
7%_"(180mm 954 (245 mm
dial cord A
drum: at fully
counterclockwise
Position :
Fig. 2-27
6. Dial Film Setting
1. Set the top of dial film to the film-drum as
shown in Fig. 2-29 (step ().
2. Attach the other end of dial film with an
adhesive tape (step (@).
3. Turn the ratchet-wheel four turns in the direc-
tion shown by the arrow (step G)).
5.
dial cord [5]
SW2 ~ SW19 Calibrator Dial Cord
7” (180mm) :
bi dial cord [4. j
a Ae
[4] 1 dial cord [5]
3 turns [5]
7 Vi 1) We
COs
d -“2 turns
[4] |) [s]
e
shaft, calibrator;
at fully clockwise position
dial cord [4]
| lever ass’y, calibrator
—<
= \ 19/32" (15mm)
~" Fig. 2-28
Set the side mark of the film on the film setting
position. After setting the film you must keep
the film with fingers or adhesive tape so that
the film does not move.
String the dial cord as shown in Fig. 2-29
(step).
winding drum ;
adhesive
tape
210)
ratchet wheel
Fig. 2-29
film setting position
