Sony CRF-230B - Page 33

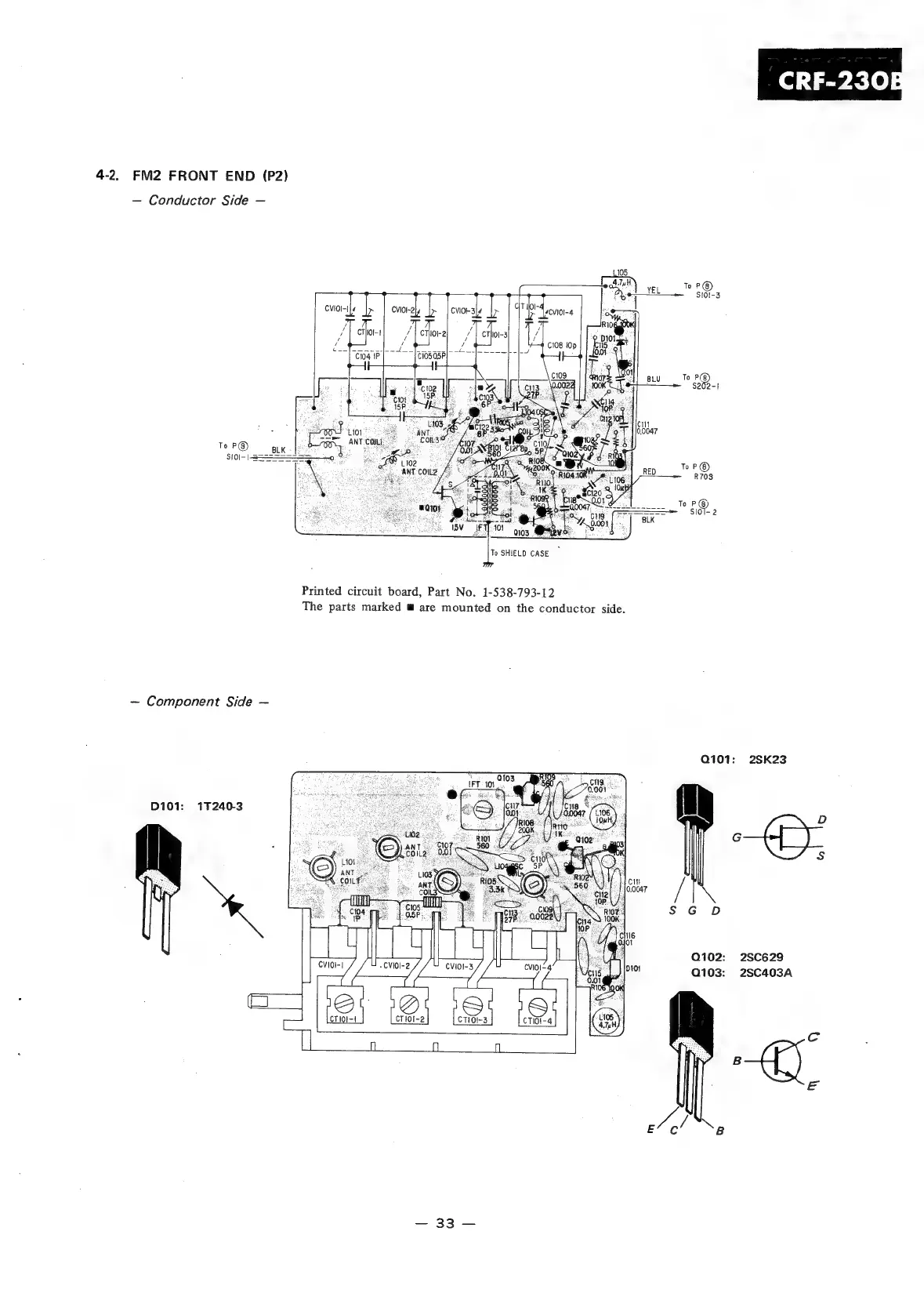

4-2. FM2 FRONT END (P2)
— Conductor Side —
CVIOI-I} 4 r CVIOI-2|4 :
/ J
/
/ | CTHOI-I
To SHIELD CASE
Printed circuit board, Part No. 1-538-793-12
The parts marked m are mounted on the conductor side.
— Component Side —
Q101: 2SK23
D101:
1T240-3
D
G
Ss
Ths
ak
S G D
Q102: 2SC629
Q103: 2SC403A
Cc
E&
