— Component Side —
Q401, 0403: 2SC403B
— 37
Q402: 2SC668
CRF-230B
el oy & fe) :)

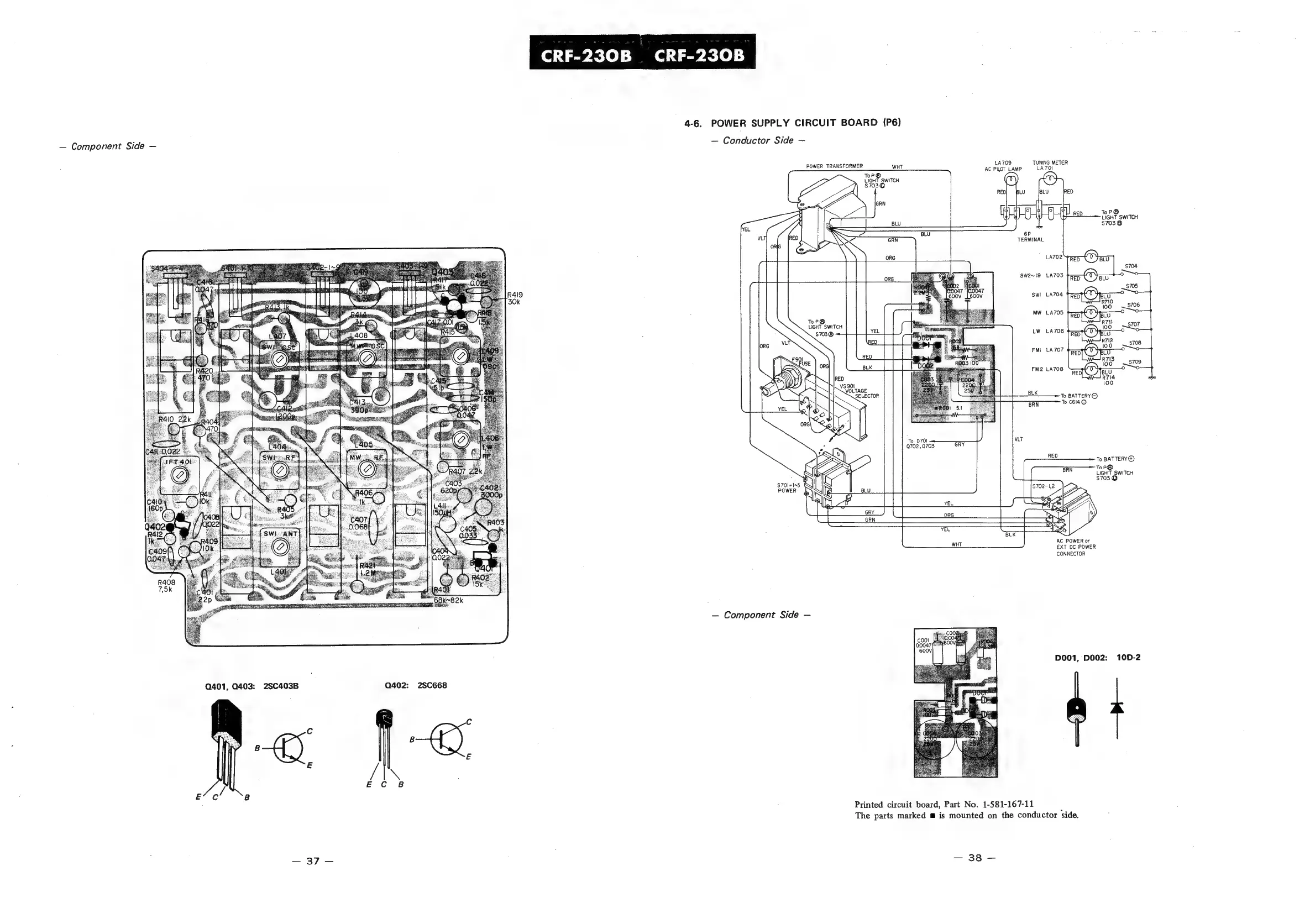

4-6. POWER SUPPLY CIRCUIT BOARD (P6)
— Conductor Side —
LA709 TUNING METER
AC PILOT LAMP LA7OI
POWER TRANSFORMER WHT
ToP®
LIGHT SWITCH
$703 ®
6P
TERMINAL
LA702
SW2~ 19 LA703
Swi LA704
MW LA705
LW LA706
FMi LA707
FM2
To D7Ol
Q702,,Q703
To BATTERY®,
ToP®
LIGHT SWITCH
$703 O
S70ir 1-3
POWER
AC POWER or
EXT DC POWER
CONNECTOR
— Component Side —
D001, D002: 10D-2
Printed circuit board, Part No. 1-581-167-11
The parts marked m is mounted on the conductor side.
