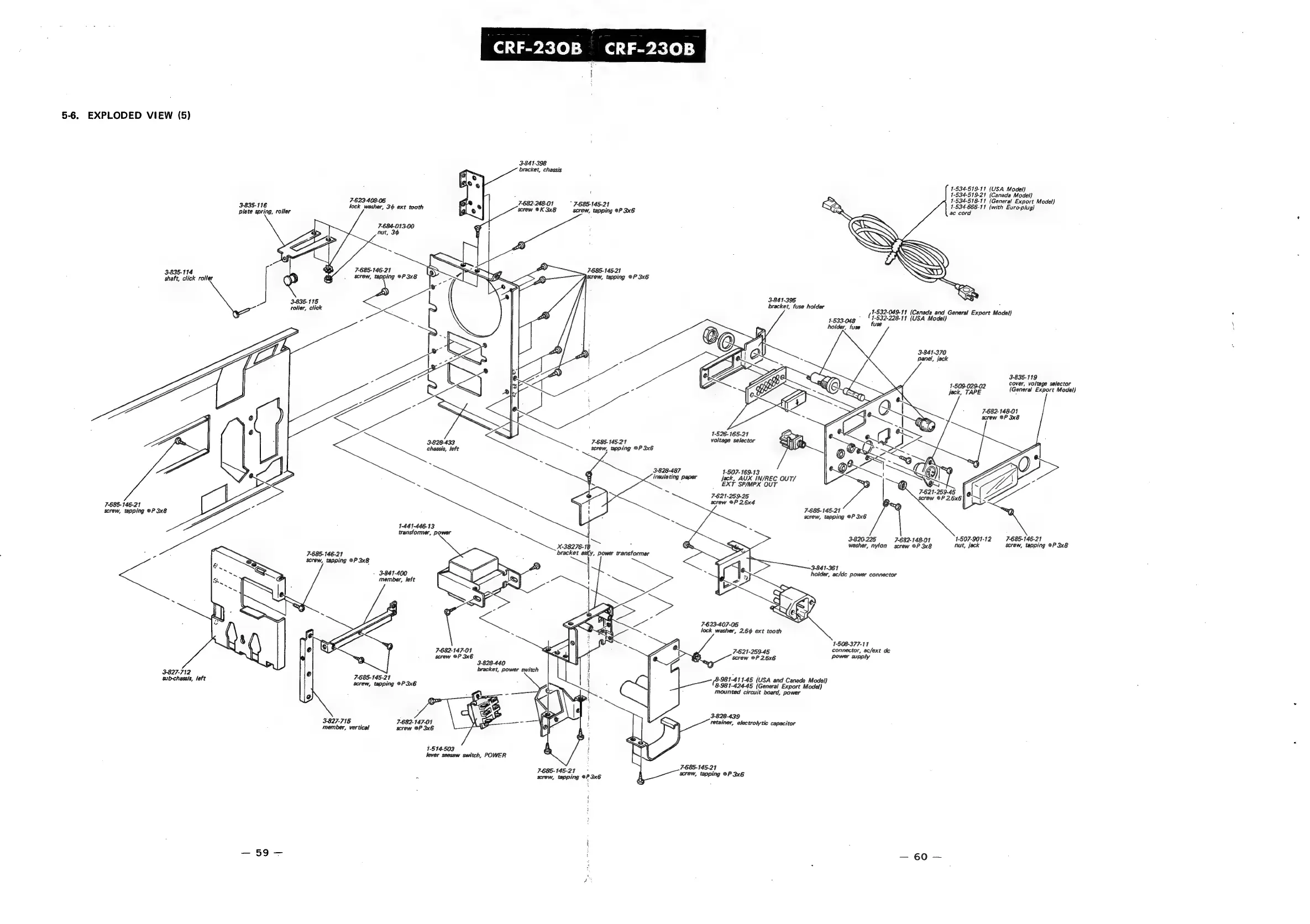

5-6. EXPLODED VIEW (5)
7-623-408-05
3-835-116
lock
washer,
3¢
ext
tooth
plate spring, roiler
7-684-013-00
nut, 3¢
7-685-146-21
3-835-114 J
shaft, click roller . screw, tapping ©P 3x8
3-835-115
s roller, click
7-685-146-21 -
screw, tapping ®P 2x8
1-441-446-13
transformer, pawer
7-685-146-21
screw, tapping ®P 3x8
- 3841-400
member, left
3-827-712
sub-chassis, left 7-685-145-21
screw, tapping ®P 3x6
3-827-718
member, vertical
— 59 —
7-682-147-01
screw ®P 3x6
CRF-230B | CRF-230B
3841-398
bracket, chassis
7-682-248-01
screw ®@K 3x8
* 7-685-145-21
screw, tapping ®@P 3x6
7-4685-145-21
screw, tapping ®P 3x6
7-685-145-21
chassis, left screw, tapping ®P 3x6
3-828-487
s
as
Pe
X-38276-18
bracket assfy, power transformer
7-682-147-01
screw ®P 2x6
3-828-440
bracket, power switch
1-514-503
fever seesaw switch, POWER
insulating paper
1-534-519-11 (USA Model)
1-534-519-21 (Canada Model)
1-534-518-11 (General Export Model}
1-534-666-11 (with Euro-plug)
ac cord
3841-395
bracket, fuse holder
1-532-049-11 (Canada and General Export Model}
1-533-048 1-§32-228-11 (USA Model)
holder, fuse
3-841-370
panel, jack
3-835-119
cover, voltage selector
zsbie 23-02: (General Export Model)
jack, TAPE
7-682-148-01
screw ®P 3x8
1-526-165-21
voltage selector
1-507- 169-13
jack, AUX IN/REC OUT/
EXT SP/MPX OUT
7-621-259-25
screw ®P 26x4
screw, tapping @P 3x6
7-685-146-21
1-507-901-12
screw, tapping ®P 3x8
3820-225 7-682- 148-01 :
nut, jack
washer, nylon screw ®P 3x8
F-841-361
holder, ac/dc power connector
7-623-407-0585
lock washer, 2.6¢ ext tooth
1-508-377-11
connector, ac/ext dc
7-621-259-45 power supply
Screw ®P 26x6
(8-981-411-45 (USA and Canada Model}
8-981-424-45 (General Export Model)
mounted circuit board, power
3-828-439
retainer, electrolytic capacitor
7-685-145-21
7-685-145-21
screw, tapping @P 3x6
i
screw, tapping ®P 3x6
— 60 —
