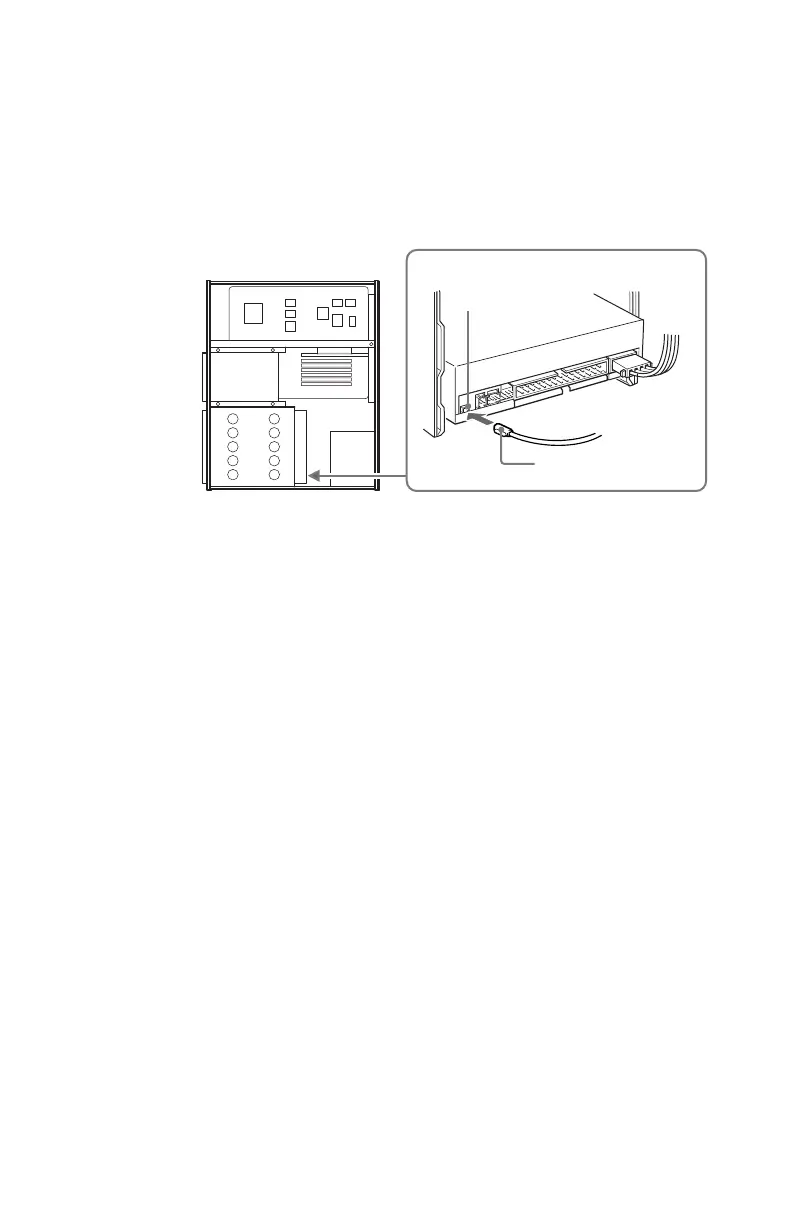

Frame ground tab
Frame ground cable
Installing the Drive Unit into the Computer
■ Frame ground
When normally installed, the drive unit is not in contact with the
host computer directly and should be grounded. Connect the frame
ground tab to one of the host computer’s ground cables.
The frame ground cable recommended has a AMP 1-480435-0
housing and 170203-2 or 60711-1 contacts.
