15

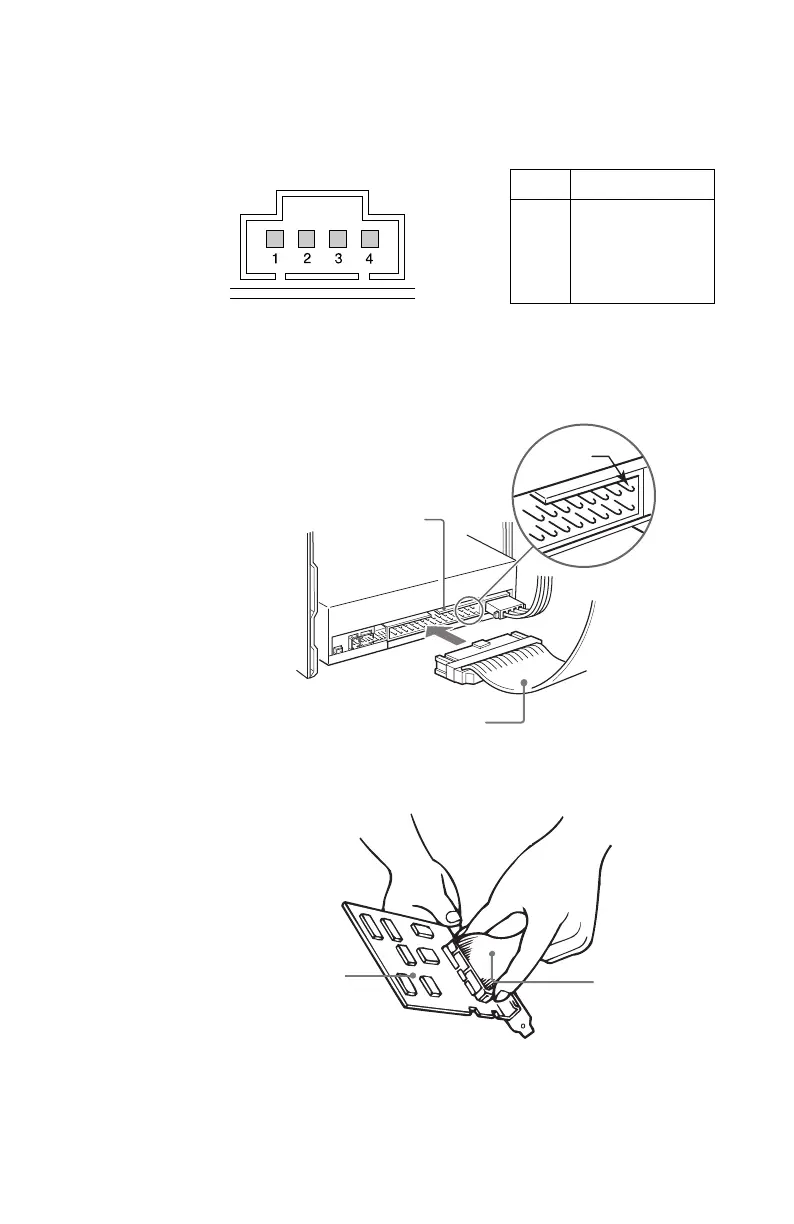

■ AUDIO OUT connector
The pin assignment is as follows:
■ INTERFACE CONNECTOR
1 Firmly insert one end of the interface cable into the INTER-
FACE CONNECTOR.
2 Attach the other end of the cable to the host adapter.
Installing the Drive Unit into the Computer
pin Audio Signal
1 R signal
2 ground
3 ground
4 L signal
INTERFACE
CONNECTOR
Pin 1
INTERFACE cable
INTERFACE cable
Host adapter
