16
SECTION 6
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.

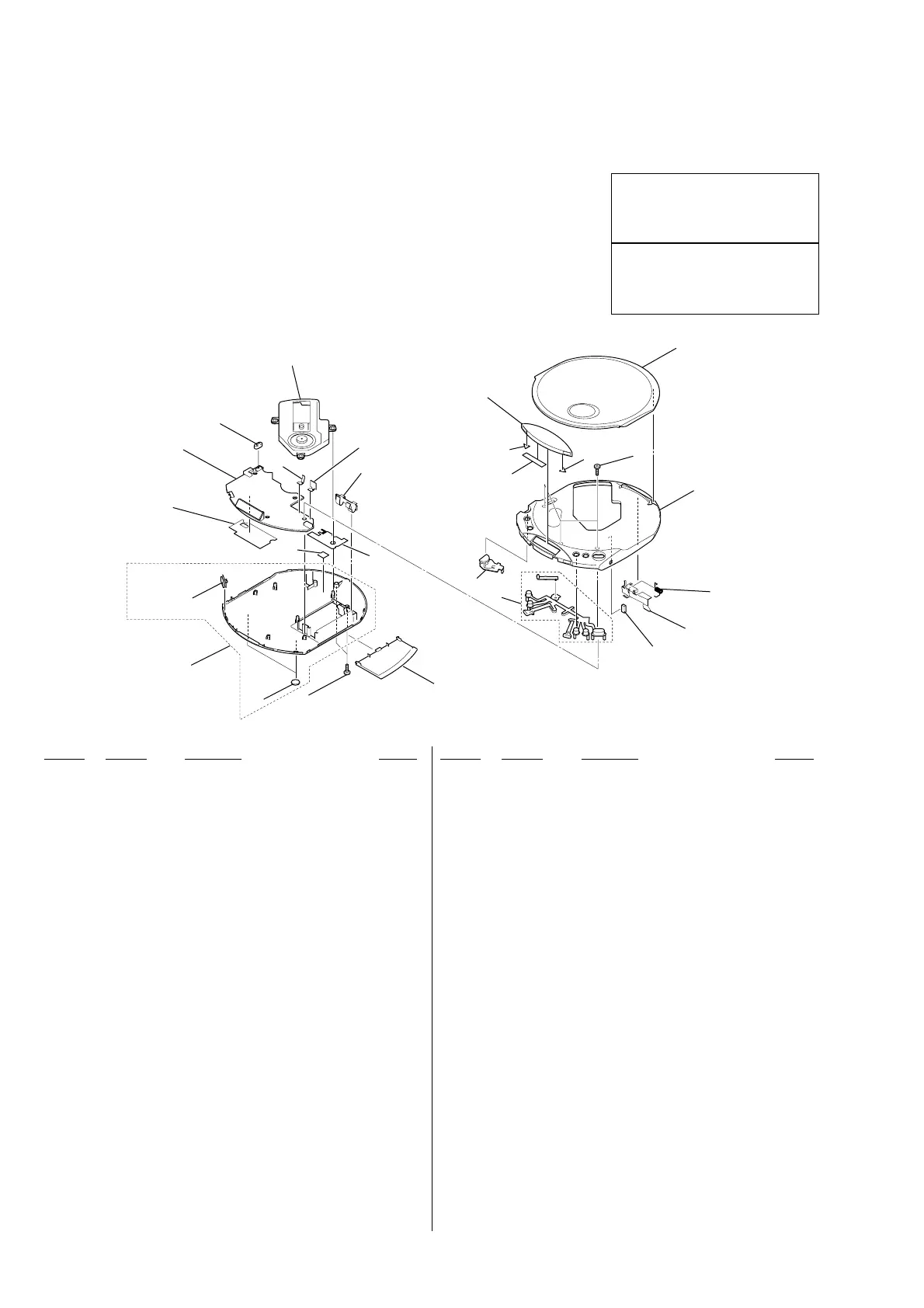

6-1. CABINET SECTION
• Abbreviation
AUS : Australian CND : Canadian
FR : French HK : Hong Kong
AR : Argentina EA : Saudi Arabia
CH : Chinese EE : East European
TW : Taiwan MX : Mexico
KR : Korean
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-336-395-01 SCREW (B2X10) (G), TAPPING
2 4-974-607-21 FOOT, RUBBER
3 X-3379-859-4 CABINET (REAR) ASSY
4 3-222-857-11 KNOB (HOLD)
* 5 A-3021-693-A MAIN PC BOARD ASSY (E355)
* 5 A-3021-694-A MAIN PC BOARD ASSY (E353
* 5 A-3021-696-A MAIN PC BOARD ASSY (E350:FR/E351:FR)
* 5 A-3021-697-A MAIN PC BOARD ASSY (E350:EXCEPT FR/
E351:EXCEPT FR/E351SR/E356CK)
6 3-232-612-11 KNOB (JOGGABLE)
7 3-231-411-01 TERMINAL (-), BATTERY
8 3-222-860-01 TERMINAL (+.-), BATTERY
9 3-234-414-01 TERMINAL (LINK), BATTERY
10 3-231-657-01 HOLDER (2) (SPRING) (E350:FR/E351SR)
11 3-047-194-01 SHEET (CDM), ADHESIVE
12 3-231-620-01 BUTTON (OPEN)...(SILVER)
12 3-231-620-21 BUTTON (OPEN)...(RED)
12 3-231-620-31 BUTTON (OPEN)...(DARK BLUE)
12 3-231-620-61 BUTTON (OPEN)...(BLUE)
12 3-231-620-71 BUTTON (OPEN)...(BLACK)
12 3-231-620-81 BUTTON (OPEN)...(ORANGE)
13 3-222-853-21 WINDOW (LCD)...(SILVER,BLUE,BLACK)
13 3-222-853-51 WINDOW (LCD)...(RED,DARK BLUE,ORANGE)
14 X-3381-502-1 LID ASSY, UPPER (E350)...(SILVER)
14 X-3381-503-1 LID ASSY, UPPER (E350)...(BLUE)
14 X-3381-504-1 LID ASSY, UPPER (E351)...(SILVER)
14 X-3381-505-1 LID ASSY, UPPER (E351)...(BLUE)
14 X-3381-506-1 LID ASSY, UPPER (E353)...(SILVER)
14 X-3381-507-1 LID ASSY, UPPER (E356CK)...(SILVER)
14 X-3381-508-1 LID ASSY, UPPER (E355)...(SILVER)
14 X-3381-509-1 LID ASSY, UPPER (E355)...(BLUE)
14 X-3381-510-1 LID ASSY, UPPER (E351SR)...(SILVER)
14 X-3381-511-1 LID ASSY, UPPER (E350:US)...(RED)
14 X-3381-512-1 LID ASSY, UPPER (E350:US)...(DARK BLUE)
14 X-3381-513-1 LID ASSY, UPPER (E350:US)...(ORANGE)
14 X-3381-569-1 LID ASSY, UPPER (E351)...(BLACK)
15 3-231-621-61 CABINET (FRONT)...(SILVER)
15 3-231-621-71 CABINET (FRONT)...(BLUE)
15 3-231-621-81 CABINET (FRONT)...(RED)
15 3-231-621-91 CABINET (FRONT)...(DARK BLUE)
15 3-238-260-01 CABINET (FRONT)...(ORANGE)
15 3-238-260-11 CABINET (FRONT)...(BLACK)
16 3-222-862-01 SPRING (TORSION) (EXCEPT E350:FR)
17 3-229-481-01 PLATE (CABINET UPPER), SUPPORT
(E350:FR/E351SR)
17 3-231-469-01 PLATE, SUPPORT (EXCEPT E350:FR/E351SR)
18 3-222-854-31 BUTTON (OPERATE)
19 4-218-592-01 CUSHON
20 3-222-856-12 LID, BATTERY CASE
21 3-226-948-01 SHEET(2) (LCD WINDOW), ADHESIVE
22 3-222-863-12 SHEET(1) (LCD WINDOW), ADHESIVE
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
C&SA : Central and South America
E13 : AC220-230V area model
E33 : AC100-240V area model
5
6
7
9
8
13
21
14
15
1
CDM-3125ER
not supplid
not supplid
10
11
3
1
20
18
12
2
19
17
16
22
21
To Next Page
