D-E350/E351/E351SR/E353/E355/E356CK
Cabinet (lower),
MD ASSY
Main board
“Motor ASSY, turn table (Spindle) (M901)”,
Optical pick-up (DAX-25E), “Motor ASSY (Sled) (M902)”
Set

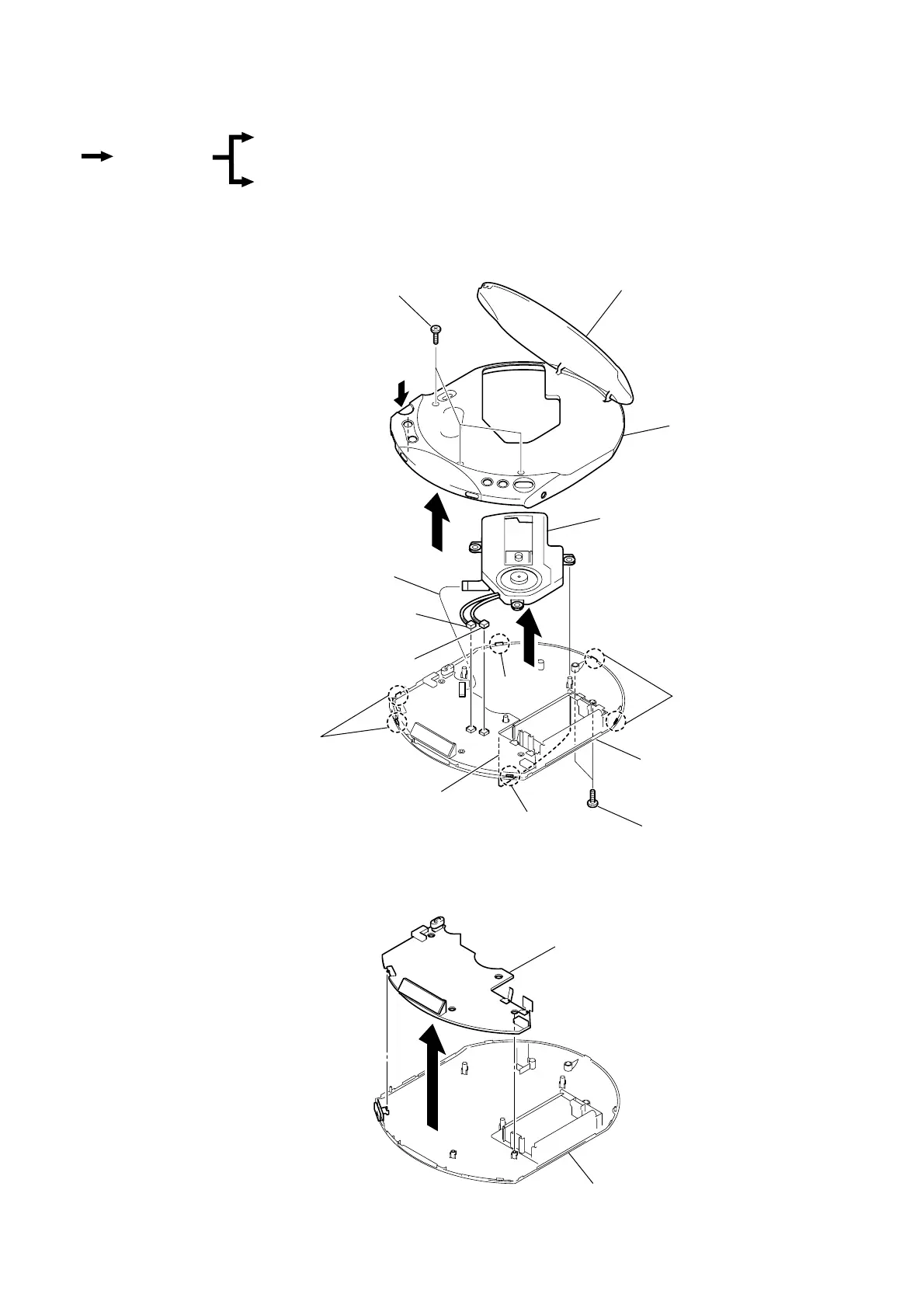

SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. CABINET (LOWER), MD ASSY
3-2. MAIN BOARD
z
The equipment can be removed using the following procedure.
2 Screws (B2 x 10)
1 OPEN
7 CN501
8 CN503 (white)
9 CN502 (black)
5Claws
5Claws
3 Open the battery lid
5 Claw
5 Claw
4 Screws (B2 x 10)
Cabinet (lower)
Cabinet (front)
MD ASSY
6
q;
Lid upper
Main board
Cabinet (lower)
1
