Sony D-E350 - Motor ASSY, Turn Table (Spindle) (M901); Motor ASSY (Spindle) (M902); Optical Pick-Up (DAX-25 E)

5
D-E350/E351/E351SR/E353/E355/E356CK

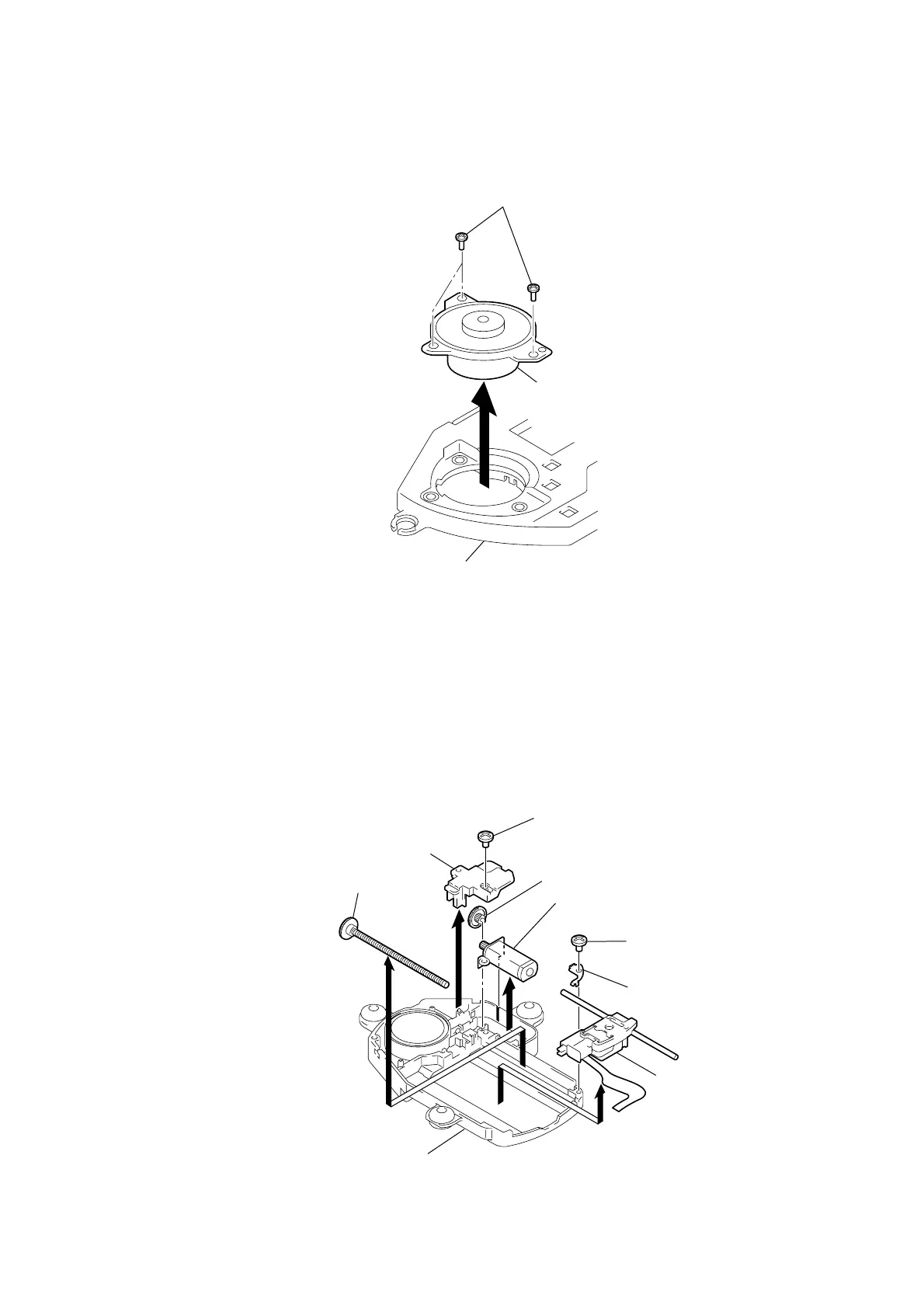

3-3. “MOTOR ASSY, TURN TABLE
(SPINDLE) (M901)”
3-4. “MOTOR ASSY (SLED) (M902)”,
OPTICAL PICK-UP (DAX-25E)
3
5
6
2
1 Screw (B 1.7x5)
4 Screw
(P 1.4x3.5)
Screw ASSY, Feed
Chassis
Optical pick-up
(DAX-25E)
Bracket (Shaft)
Gear B
Cover, Gear
Motor ASSY (Sled) (M902)
2
Motor ASSY, Turn tabl
e
(Spindle) (M901)
1 Screws
(B1.7x5)
Chassis
