19
D-EJ750/EJ751/EJ753/EJ755/EJ756CK/EJ758CK
SECTION 6
EXPLODED VIEWS
NOTE :
-XX, -X mean standardized parts, so they
may have some difference from the original
one.
Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
The mechanical parts with no reference
number in the exploded views are not
supplied.
Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.

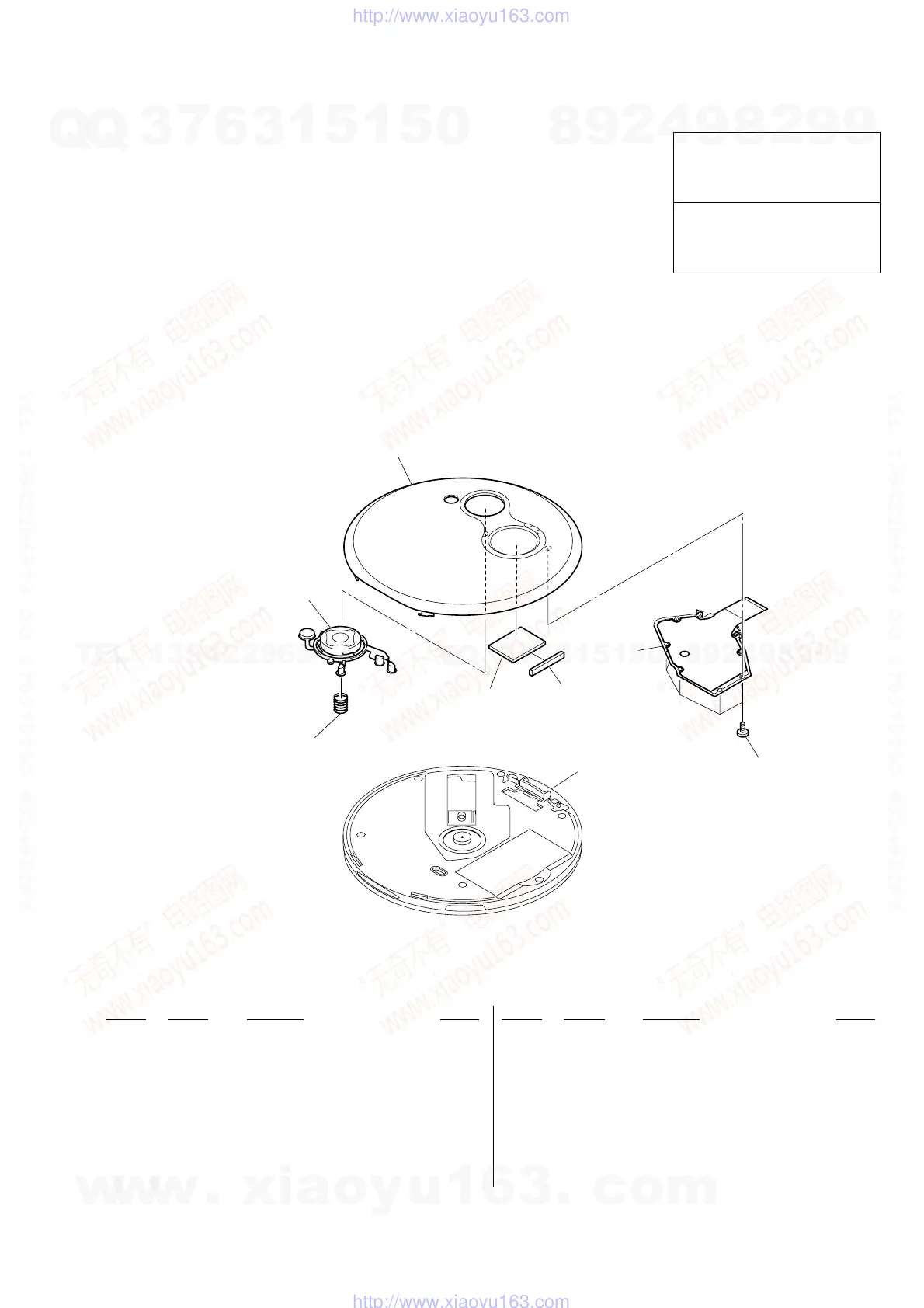

6-1. UPPER LID SECTION
Les composants identifiés par une
marque 0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
8
7
6
5
Cabinet section
4
3
1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-355-424-71 SCREW, TAPPING
3 1-476-872-11 SWITCH UNIT
4 3-236-834-01 RUBBER
5 1-804-609-11 LCD
6 3-235-992-01 SPRING (COMPRESSION)
7 3-235-306-01 BUTTON (OPERATE)
8 X-3381-377-1 UPPER LID SUB ASSY...(SILVER) (EJ751)
8 X-3381-378-1 UPPER LID SUB ASSY...(BLUE) (EJ751)
8 X-3381-379-1 UPPER LID SUB ASSY...(YELLOW) (EJ751)
8 X-3381-456-1 LID SUB ASSY, UPPER...(SILVER) (EJ755)
8 X-3381-457-1 LID SUB ASSY, UPPER...(BLUE) (EJ755)
8 X-3381-458-1 LID SUB ASSY, UPPER...(YELLOW) (EJ755)
8 X-3381-462-1 LID SUB ASSY, UPPER...(SILVER) (EJ756CK)
8 X-3381-463-1 LID SUB ASSY, UPPER...(BLACK) (EJ758CK)
8 X-3381-468-1 LID SUB ASSY, UPPER...(SILVER) (EJ750)
8 X-3381-469-1 LID SUB ASSY, UPPER...(BLUE) (EJ750)
8 X-3381-470-1 LID SUB ASSY, UPPER...(SILVER) (EJ753)
Abbreviation
AUS : Australian CND : Canadian
FR : French CH : Chinese
EE : East European MX : Mexico
C&SA : Central and South America
E13 : AC220-230V area model
