D-EJ775
10

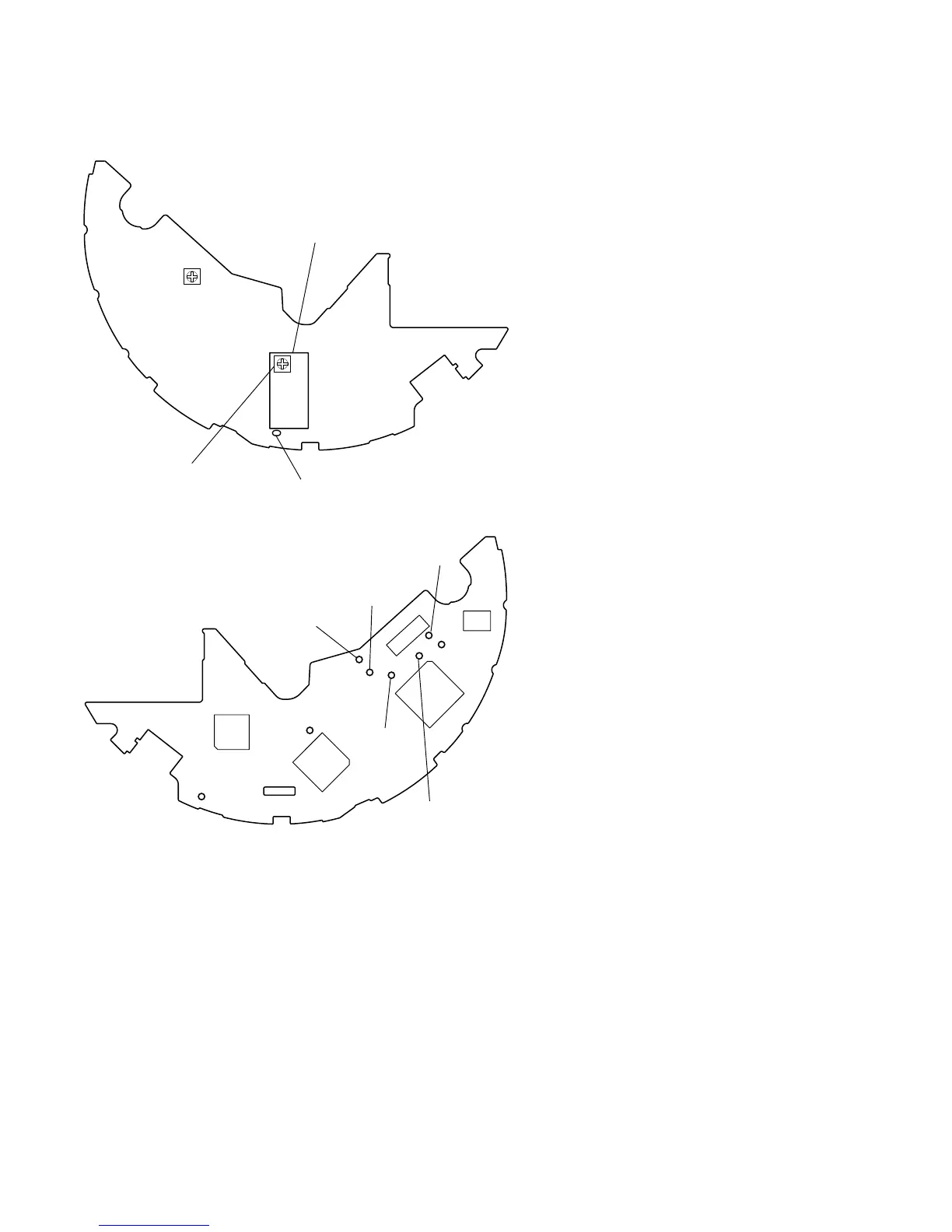

Connecting and Checking/Adjustment Location:
– MAIN (Conducter Side)/SUB Boards –
SUB Board
(MAIN Board suffix-11, -12 only)
RV601
EF Alignment
Adjustment
(MAIN Board suffix-13 only)
RV1
EF Alignment
Adjustment
(MAIN Board suffix-11, -12 only)
TAP802 (OPEN)
TP514 (OPGSW)
IC406
TJ501
(AGND)
IC601
TJ503 (RF)
TJ603 (MON1)
IC801
IC401
TJ805 (AD SEL)
TJ610 (VBIAS)
TJ405 (AVDD)
TJ401
(MAINGND)
CN501
– MAIN Board (Conductor Side) –
Remark: Only microcomputer version 052 or 057 MAIN board having
SUB board for EF Alignment Adjustment.
