Sony D-EJ775 - 6 Exploded Views; Cabinet Section

32
D-EJ775
SECTION 6
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
• Refer to “SERVICING NOTES” (page 3) for
identification of MAIN board.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
FR : French model
JE : Tourist model

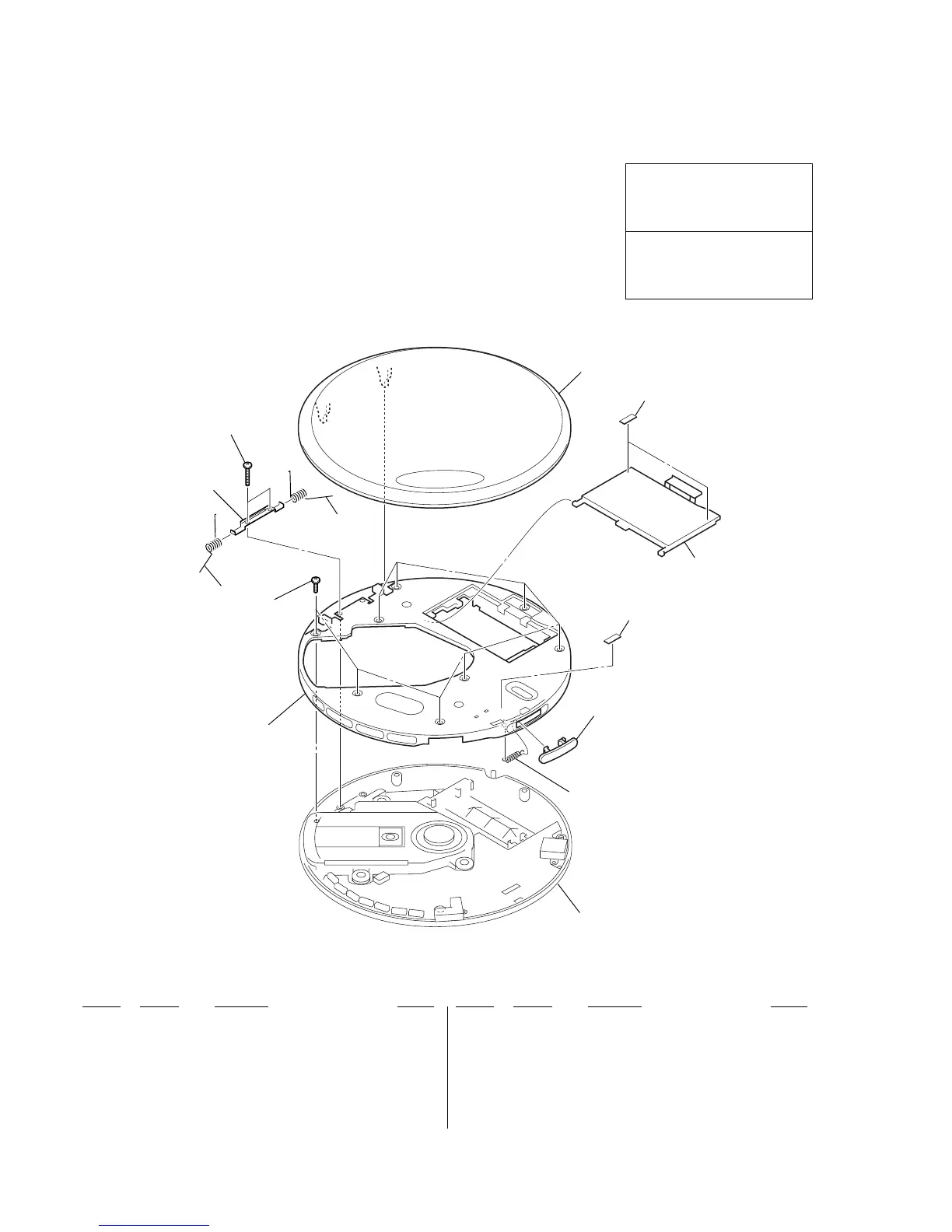

6-1. CABINET SECTION
3
10
1
4
2
8
11
11
7
9
main section
5
6
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-3381-717-1 CABINET (UPPER) SUB ASSY
2 4-908-792-71 SCREW (B2)
3 3-239-268-01 SPRING (FULL OPEN. B)
4 3-239-266-01 PLATE (SPRING)
5 3-240-296-01 SCREW, TAPPING
6 3-239-267-01 SPRING (FULL OPEN. A)
7 X-3382-098-1 LID UPPER SUB ASSY (for SILVER)
7 X-3382-099-1 LID UPPER SUB ASSY (for BLUE)
7 X-3382-100-1 LID UPPER SUB ASSY (for PINK)
8 3-239-259-01 LID, BATTERY CASE
9 3-239-262-01 KNOB (OPEN)
10 3-233-998-01 SPRING, TENSION
11 3-223-073-21 SPACER (A)
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
